Control device system NEC®/CE Code Series 8150
Art. No.:
301292
Product Type:
8150/5-V40-12E0X-15L07SA03
max. ambient temperature:
+60 °C
min. ambient temperature:
-50 °C
Centre installation position:
EM-STOP mushroom stay-put button 55
Certificates:
ATEX (PTB), Canada (UL), IECEx (PTB), India (PESO), USA (UL)
Silicone-free:
No

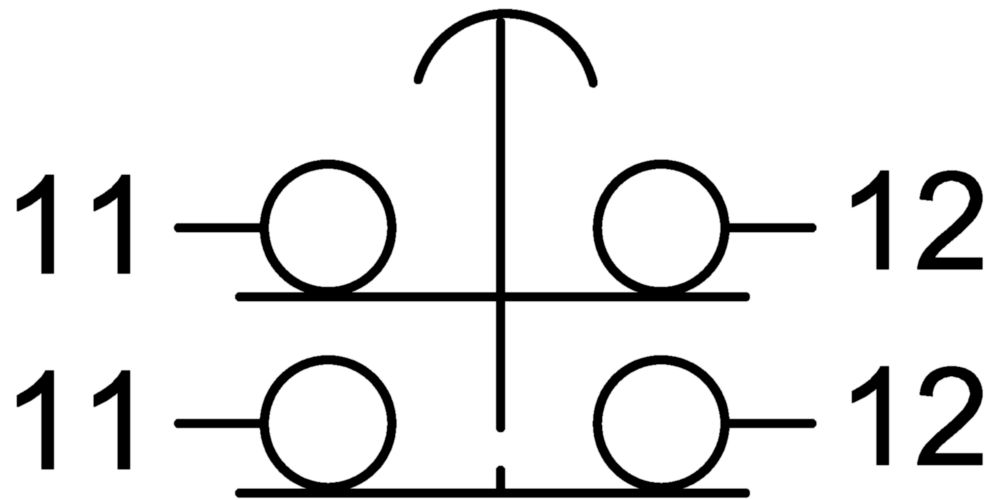

Built-in element middle:
Contact element NC/NC
Flange and plates:
Without flange
Cable glands and entries:
NPT 3/4
Country of origin:
DE
On request
Technical data
General
| MY R. STAHL | 8150P |
| Product variant | Mushroom stay-put button |
| Product Type | 8150/5-V40-12E0X-15L07SA03 |
| Highlights | Control stations with quadruple certification (NEC®, CE Code, ATEX, IECEx)Several assembly positions for effortless integration with existing wall mountings, which ensure compatibility with a wide range of products316L stainless steel enclosure for excellent resistance to corrosionOffers a large number of pushbuttons, illuminated pushbuttons, control switches and LEDS for various configurationsCustomer-specific control stations are available upon request with various cable glands, contact options and additional certifications |
| Functional Description | R. STAHL's device control system in the Universal Mounting Series 8150/5-V40 uses explosion-protected components with enclosures made of 316L stainless steel for ultimate flexibility, safety and durability in hazardous and hostile environments. The integrated mounting plate offers various mounting options for simple installation. |
Explosion Protection
Electrical Data
Ambient Conditions
Mechanical Data
Mounting / Installation
Components
Commercial data
Downloads
| Description | Document Type | Language | |
|---|---|---|---|
| Control device system Series ConSig 8150 - 8150/5-V40-12E0X-15L07SA03 - 301292 - en-US | Single Data Sheet |
  |
|
| Control device system NEC®/CE Code - 8150 - de-DE | Product Overview |
 |
|
| Control device system NEC®/CE Code - 8150 - en-GB | Product Overview |
 |
|
| Control device system NEC®/CE Code - 8150 - fr-FR | Product Overview |
 |
|
| Control device system NEC®/CE Code - 8150 - es-ES | Product Overview |
 |
|
| Control device system NEC®/CE Code - 8150 - en-US | Product Overview |
|
|
| Control device system Series ConSig 8150 - 8150/5-V40-12E0X-15L07SA03 - 301292 - de-DE | Single Data Sheet |
|
|
| Control device system Series ConSig 8150 - 8150/5-V40-12E0X-15L07SA03 - 301292 - en-GB | Single Data Sheet |
|
|
| Control device system Series ConSig 8150 - 8150/5-V40-12E0X-15L07SA03 - 301292 - fr-FR | Single Data Sheet |
|
|
| Control device system Series ConSig 8150 - 8150/5-V40-12E0X-15L07SA03 - 301292 - es-ES | Single Data Sheet |
|
