Multi-variant control devices for Zone 1/21 and 2/22

The compact, robust and temperature-resistant 8040 series control devices are available in various configurations and as a customer-specific version

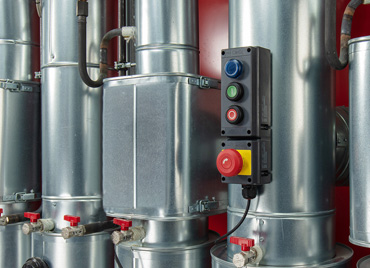

Ex control devices R. STAHL

The R. STAHL control device system series 8040, provides an extensive range of robust control devices for global use in hazardous areas in Zones 1/21 and 2/22. The units are available in several standard versions with four different enclosure sizes. Flange connections enable up to three enclosures to be combined hence, the modular construction design ensures customer-specific equipment and combination.

For individual configuration, in addition to a number of different actuators such as pushbuttons, mushroom pushbuttons, mushroom stay-put buttons, twin pushbuttons and illuminated pushbuttons, R. STAHL also offers various rotary actuators, key-operated switches and LED indicator lamps. The switching functions of selector switches can be converted from latching to spring return via integrated coding without any additional accessories. Furthermore, optional built-in components such as current meters and voltmeters or load and motor switches complete the range of equipment. It is also possible to fit up to four contact elements with a single actuator.

The control devices made of glass fibre and reinforced polyester can be distinguished, with a durable silicone seal and compact dimensions, as well as by a temperature-resistant construction design. They ensure IP 66 level of protection and can withstand temperature conditions ranging from -60 °C to +70 °C. Certifications according to ATEX and IECEx, and for other national markets and the maritime sector, ensure the unrestricted use of this control device series in all global regions and sectors.
