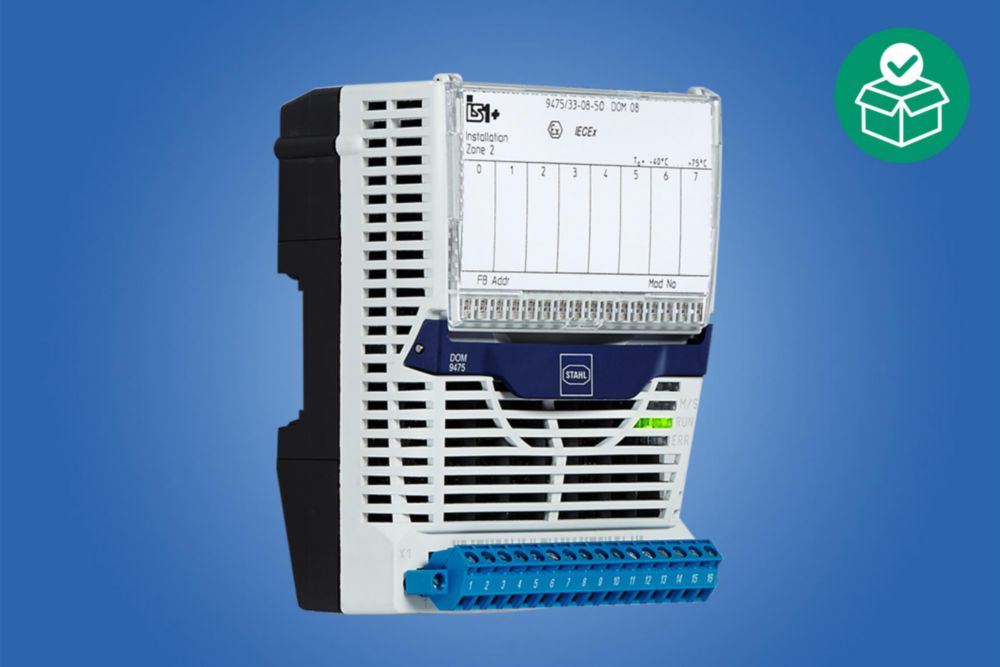

Digital output module, 8-channel version for Zone 2 Series 9475/33-08-xx

The 9475/33-08 digital output modules for Zone 2 have eight channels for controlling Ex i solenoid valves or indicator lamps. All outputs are short-circuit proof, galvanically separated from the system and individually monitored to check for wire breakage/short-circuiting.

  • 8 channels for Ex i solenoid valves up to 30 mA
  • Ex ia outputs with line fault monitoring
  • Modules in Zone 2 can be replaced without having to disconnect the power supply (i.e. hot-swapped)

Filter product lines

hide
Certificates
Zone Filter
Installation
Class1 Division and Zone
Ex interface zone
Number of channels
Max. power consumption
Ex i output rated operation

2 Products

Please select products you want to compare Compare
Ex Digital output module, 8-channel version for Zone 2 Series 9475/33-08-xx R. STAHL

Digital output module, 8-channel version for Zone 2 Series 9475/33-08-xx

Art. No.: 210657
Product Type: 9475/33-08-50
Max. power consumption: 6.00 W
Class 1 Division / Zone: Division 2 / Zone 2
Zone Filter: Zone 2 | 3 G | Gc
Ex interface zone: 22, 21, 20, 2, 1, 0
Certificates: Canada (FM), USA (FM), ATEX (DEK), IECEx (DEK), Korea (KTL), India (PESO), Brazil (ULB), China (NEPSI)
Installation: Zone 2 and safe areas
Number of channels: 8 Ex i outputs
Ex i output rated operation: 12.6 V/30 mA
Please select products you want to compare Compare
Ex Digital output module, 8-channel version for Zone 2 Series 9475/33-08-xx R. STAHL

Digital output module, 8-channel version for Zone 2 Series 9475/33-08-xx

Art. No.: 210658
Product Type: 9475/33-08-60
Max. power consumption: 5.80 W
Class 1 Division / Zone: Division 2 / Zone 2
Zone Filter: Zone 2 | 3 G | Gc
Ex interface zone: 22, 21, 20, 2, 1, 0
Certificates: Canada (FM), USA (FM), ATEX (DEK), IECEx (DEK), Korea (KTL), India (PESO), Brazil (ULB), China (NEPSI)
Installation: Zone 2 and safe areas
Number of channels: 8 Ex i outputs
Ex i output rated operation: 17.5 V/20 mA
