Miniature circuit breakers IEC Series 8562

R. STAHL Series 8562 miniature circuit breakers boast good current limiting for short circuits and a high switching capacity of 6 or 10 kA. This results in a low load on conductors and a high selectivity for upstream fuses. The components have a modular design and are therefore available in 1- to 4-pole versions and for nominal currents from 0.5 to 40 A.

  • Non-adjustable thermal and magnetic releases
  • Isolating function in accordance with EN 60947-2
  • Energy limiting class 3

Filter product lines

hide
Certificates
Zone
AC rated operational voltage
DC Rated operational voltage
Rated operational current
Auxiliary contacts
Auxiliary contacts 2
N-pole present
Tripping characteristic
Rated switching capacity
No. of poles
Min. ambient temperature
Max. ambient temperature
Subsitution for material

156 Products

Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

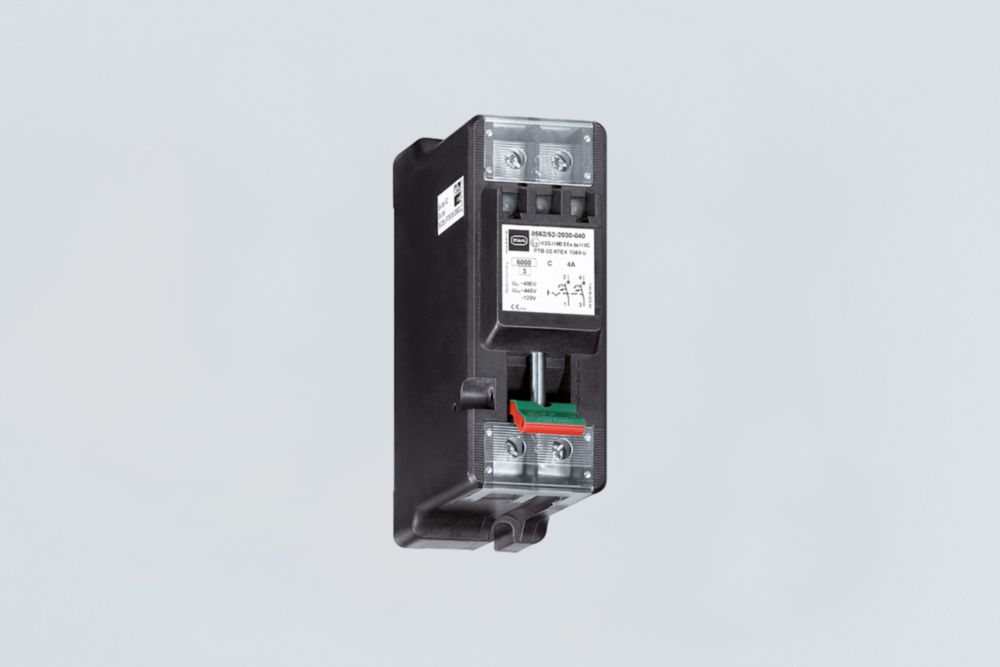

Miniature circuit breaker, 2 A, 400 V AC/DC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: No, Zone 1/2

Art. No.: 214937
Product Type: 8562/52-2040-020
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Rated operational current: 2 A
Subsitution for material: 149754
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
N-pole present: No
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

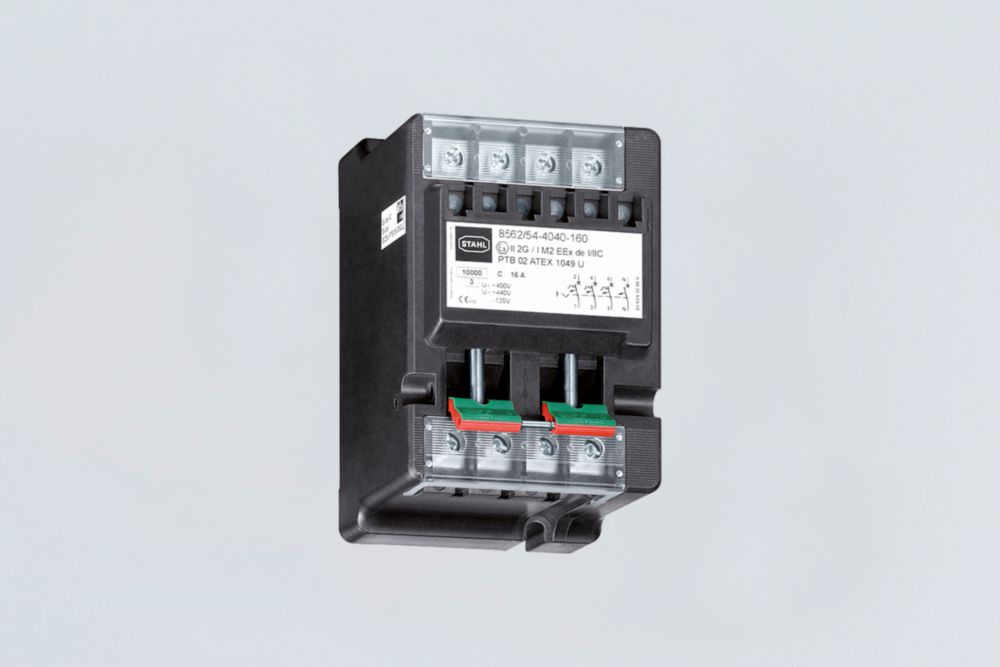

Miniature circuit breaker, 16 A, 400 V AC, Number of poles: 4, 10 kA, Tripping characteristic: C, N-pole present: Yes, Zone 1/2

Art. No.: 215086
Product Type: 8562/54-4040-160
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 16 A
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Subsitution for material: 215076
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
N-pole present: Yes
Tripping characteristic: C
No. of poles: 4
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 16 A, 230 ... 400 V AC/DC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: No, Error signal, Zone 1/2

Art. No.: 289678
Product Type: 8562/54-2045-160-76
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 16 A
Rated switching capacity: 10 kA
AC rated operational voltage: 230 - 400 V
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
Auxiliary contacts: Error signal
N-pole present: No
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 10 A, 400 V AC, Number of poles: 3, 10 kA, Tripping characteristic: C, N-pole present: No, 1 change-over contact, Zone 1/2

Art. No.: 289679
Product Type: 8562/54-3045-100
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Rated operational current: 10 A
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
Auxiliary contacts: 1 change-over contact
N-pole present: No
Tripping characteristic: C
No. of poles: 3
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 20 A, 400 V AC, Number of poles: 3, 10 kA, Tripping characteristic: C, N-pole present: No, 1 change-over contact, Zone 1/2

Art. No.: 289411
Product Type: 8562/54-3045-200
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Rated operational current: 20 A
Subsitution for material: 215033
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
Auxiliary contacts: 1 change-over contact
N-pole present: No
Tripping characteristic: C
No. of poles: 3
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 16 A, 400 V AC, Number of poles: 4, 10 kA, Tripping characteristic: B, N-pole present: Yes, 2 change-over contacts, Zone 1/2

Art. No.: 287132
Product Type: 8562/54-4026-160
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 16 A
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
Auxiliary contacts: 2 change-over contacts
N-pole present: Yes
Tripping characteristic: B
No. of poles: 4
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 16 A, 400 V AC, Number of poles: 3, 10 kA, Tripping characteristic: C, N-pole present: No, 2 change-over contacts, Zone 1/2

Art. No.: 283141
Product Type: 8562/54-3046-160
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 16 A
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Subsitution for material: 215061
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
Auxiliary contacts: 2 change-over contacts
N-pole present: No
Tripping characteristic: C
No. of poles: 3
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

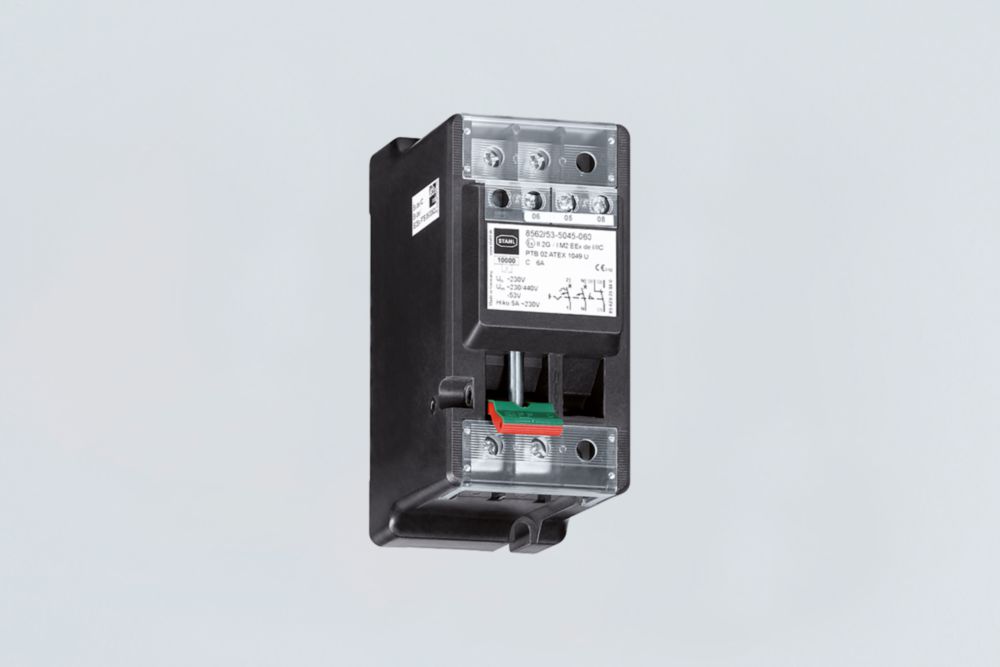

Miniature circuit breaker, 10 A, 400 V AC/DC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: No, 2 NO, Zone 1/2

Art. No.: 288535
Product Type: 8562/53-2048-100
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Rated operational current: 10 A
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
Auxiliary contacts: 2 NO
N-pole present: No
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

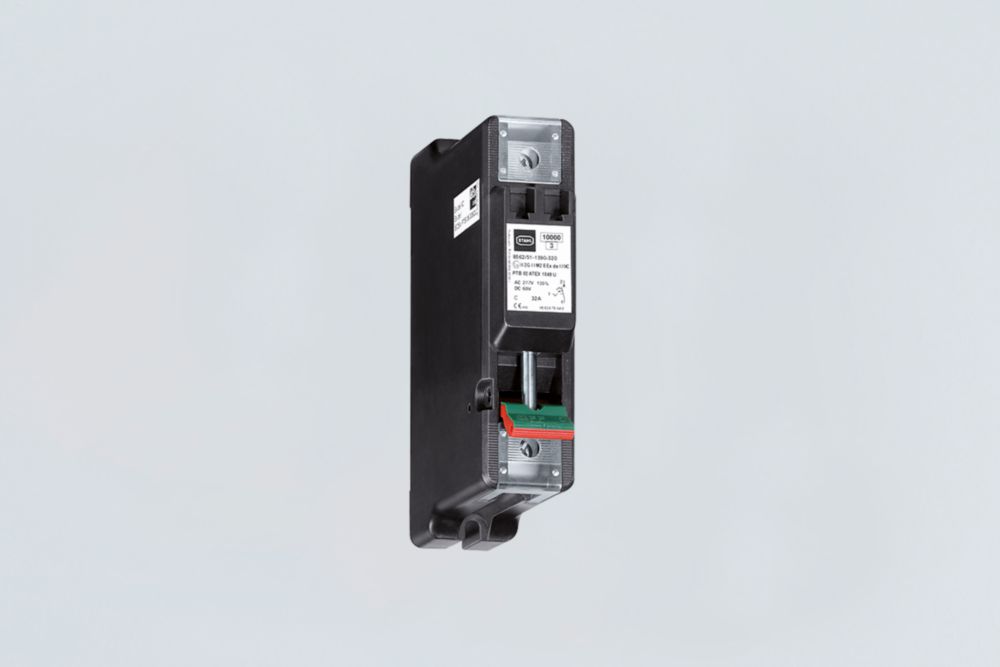

Miniature circuit breaker, 6 A, 230 V AC/DC, Number of poles: 1, 10 kA, Tripping characteristic: C, N-pole present: No, 1 change-over contact, Zone 1/2

Art. No.: 288338
Product Type: 8562/52-1045-060
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 230 - 230 V
Rated operational current: 6 A
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 48 V
Auxiliary contacts: 1 change-over contact
N-pole present: No
Tripping characteristic: C
No. of poles: 1
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 400 V AC, Number of poles: 4, Tripping characteristic, N-pole present: No, 2 change-over contacts, Zone 1/2

Art. No.: 286085
Product Type: 8562/54-6046-250
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
Auxiliary contacts: 2 change-over contacts
N-pole present: No
No. of poles: 4
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 400 V AC, Number of poles: 4, Tripping characteristic, N-pole present: No, 2 change-over contacts, Zone 1/2

Art. No.: 286086
Product Type: 8562/54-6046-160
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
Auxiliary contacts: 2 change-over contacts
N-pole present: No
No. of poles: 4
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 0.500 A, 230 V AC/DC, Number of poles: 1, 10 kA, Tripping characteristic: C, N-pole present: No, Zone 1/2

Art. No.: 285119
Product Type: 8562/51-1040-005
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 0.500 A
AC rated operational voltage: 230 - 230 V
Rated switching capacity: 10 kA
Subsitution for material: 213787
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 48 V
N-pole present: No
Tripping characteristic: C
No. of poles: 1
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 16 A, 400 V AC/DC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: No, 2 NO, Zone 1/2

Art. No.: 285197
Product Type: 8562/53-2048-160
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 16 A
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
Auxiliary contacts: 2 NO
N-pole present: No
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 25 A, 400 V AC/DC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: No, 2 NO, Zone 1/2

Art. No.: 285198
Product Type: 8562/53-2048-250
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 25 A
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
Auxiliary contacts: 2 NO
N-pole present: No
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 4 A, 400 V AC/DC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: No, 2 NO, Zone 1/2

Art. No.: 285196
Product Type: 8562/53-2048-040
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Rated operational current: 4 A
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
Auxiliary contacts: 2 NO
N-pole present: No
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 2 A, 400 V AC/DC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: No, 2 NO, Zone 1/2

Art. No.: 285195
Product Type: 8562/53-2048-020
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Rated operational current: 2 A
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
Auxiliary contacts: 2 NO
N-pole present: No
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 20 A, 400 V AC, Number of poles: 4, 10 kA, Tripping characteristic: C, N-pole present: Yes, 2 change-over contacts, Zone 1/2

Art. No.: 285193
Product Type: 8562/54-4046-200
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Rated operational current: 20 A
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
Auxiliary contacts: 2 change-over contacts
N-pole present: Yes
Tripping characteristic: C
No. of poles: 4
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 32 A, 400 V AC, Number of poles: 4, 10 kA, Tripping characteristic: C, N-pole present: Yes, Zone 1/2

Art. No.: 284743
Product Type: 8562/54-4046-320
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated operational current: 32 A
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), Brazil (ULB)
N-pole present: Yes
Tripping characteristic: C
No. of poles: 4
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 6 A, 400 V AC/DC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: No, 2 NO, Zone 1/2

Art. No.: 284741
Product Type: 8562/53-2048-060
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 6 A
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
Auxiliary contacts: 2 NO
N-pole present: No
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 10 A, 400 V AC, Number of poles: 4, 10 kA, Tripping characteristic: B, N-pole present: Yes, Zone 1/2

Art. No.: 284651
Product Type: 8562/54-4020-100
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Rated operational current: 10 A
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), Brazil (ULB)
N-pole present: Yes
Tripping characteristic: B
No. of poles: 4
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 10 A, 400 V AC/DC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: No, 1 change-over contact, Zone 1/2

Art. No.: 283866
Product Type: 8562/53-2044-100
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Rated operational current: 10 A
Subsitution for material: 214160
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
Auxiliary contacts: 1 change-over contact
N-pole present: No
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 32 A, 400 V AC, Number of poles: 3, 10 kA, Tripping characteristic: C, N-pole present: No, 1 change-over contact, Zone 1/2

Art. No.: 283652
Product Type: 8562/54-3044-320-76
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated operational current: 32 A
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
Auxiliary contacts: 1 change-over contact
N-pole present: No
Tripping characteristic: C
No. of poles: 3
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 6 A, 230 V AC/DC, Number of poles: 1, 10 kA, Tripping characteristic: C, N-pole present: No, 1 change-over contact, Zone 1/2

Art. No.: 283269
Product Type: 8562/52-1044-060
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 230 - 230 V
Rated operational current: 6 A
Rated switching capacity: 10 kA
Subsitution for material: 213815
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 48 V
Auxiliary contacts: 1 change-over contact
N-pole present: No
Tripping characteristic: C
No. of poles: 1
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 6 A, 230 V AC/DC, Number of poles: 1, 10 kA, Tripping characteristic: B, N-pole present: No, 1 change-over contact, Zone 1/2

Art. No.: 283344
Product Type: 8562/52-1024-060
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 230 - 230 V
Rated operational current: 6 A
Rated switching capacity: 10 kA
Subsitution for material: 213768
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 48 V
Auxiliary contacts: 1 change-over contact
N-pole present: No
Tripping characteristic: B
No. of poles: 1
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 16 A, 230 ... 400 V AC/DC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: No, 1 change-over contact, Zone 1/2

Art. No.: 283149
Product Type: 8562/54-2044-160-76
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 16 A
Rated switching capacity: 10 kA
AC rated operational voltage: 230 - 400 V
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
Auxiliary contacts: 1 change-over contact
N-pole present: No
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 40 A, 400 V AC, Number of poles: 3, 10 kA, Tripping characteristic: C, N-pole present: No, 2 change-over contacts, Zone 1/2

Art. No.: 283049
Product Type: 8562/54-3046-320
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Rated operational current: 40 A
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
Auxiliary contacts: 2 change-over contacts
N-pole present: No
Tripping characteristic: C
No. of poles: 3
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 25 A, 400 V AC, Number of poles: 3, 10 kA, Tripping characteristic: C, N-pole present: No, 2 change-over contacts, Zone 1/2

Art. No.: 283050
Product Type: 8562/54-3046-250
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 25 A
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
Auxiliary contacts: 2 change-over contacts
N-pole present: No
Tripping characteristic: C
No. of poles: 3
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 40 A, 400 V AC, Number of poles: 3, 10 kA, Tripping characteristic: D, N-pole present: No, 1 change-over contact, Zone 1/2

Art. No.: 283021
Product Type: 8562/54-3225-400
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Rated operational current: 40 A
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
Auxiliary contacts: 1 change-over contact
N-pole present: No
Tripping characteristic: D
No. of poles: 3
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 16 A, 400 V AC, Number of poles: 3, 10 kA, Tripping characteristic: D, N-pole present: No, Zone 1/2

Art. No.: 282887
Product Type: 8562/53-3220-160
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 16 A
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
N-pole present: No
Tripping characteristic: D
No. of poles: 3
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 10 A, 400 V AC, Number of poles: 4, 10 kA, Tripping characteristic: C, N-pole present: No, Error signal, Zone 1/2

Art. No.: 280001
Product Type: 8562/54-6045-100
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Rated operational current: 10 A
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), Brazil (ULB)
Auxiliary contacts: Error signal
N-pole present: No
Tripping characteristic: C
No. of poles: 4
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 10/40 A/A, 400 V AC, Number of poles: 3, 10 kA, Tripping characteristic: D, N-pole present: No, Zone 1/2

Art. No.: 279273
Product Type: 8562/53-3220-400
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Rated operational current: 10 A, 40 A
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
N-pole present: No
Tripping characteristic: D
No. of poles: 3
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 32 A, 400 V AC, Number of poles: 3, 10 kA, Tripping characteristic: C, N-pole present: No, 2 change-over contacts, Zone 1/2

Art. No.: 278049
Product Type: 8562/54-3046-320
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated operational current: 32 A
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
Auxiliary contacts: 2 change-over contacts
N-pole present: No
Tripping characteristic: C
No. of poles: 3
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 10 A, 400 V AC, Number of poles: 3, 10 kA, Tripping characteristic: C, N-pole present: No, 2 change-over contacts, Zone 1/2

Art. No.: 278048
Product Type: 8562/54-3046-100
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Rated operational current: 10 A
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
Auxiliary contacts: 2 change-over contacts
N-pole present: No
Tripping characteristic: C
No. of poles: 3
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 32 A, 400 V AC/DC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: No, 1 change-over contact, Zone 1/2

Art. No.: 278042
Product Type: 8562/53-2045-320
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated operational current: 32 A
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
Auxiliary contacts: 1 change-over contact
N-pole present: No
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 20 A, 400 V AC/DC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: No, Error signal, Zone 1/2

Art. No.: 276972
Product Type: 8562/53-2045-200
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Rated operational current: 20 A
Subsitution for material: 214163
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
Auxiliary contacts: Error signal
Auxiliary contacts 2: 1 change-over contact
N-pole present: No
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 16 A, 400 V AC, Number of poles: 4, 10 kA, Tripping characteristic: C, N-pole present: No, Error signal, Zone 1/2

Art. No.: 276770
Product Type: 8562/54-6045-160
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 16 A
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
Auxiliary contacts: Error signal
N-pole present: No
Tripping characteristic: C
No. of poles: 4
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 6 A, 400 V AC, Number of poles: 4, 10 kA, Tripping characteristic: C, N-pole present: Yes, 1 change-over contact, Zone 1/2

Art. No.: 276611
Product Type: 8562/54-4046-060
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 6 A
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
Auxiliary contacts: 1 change-over contact
N-pole present: Yes
Tripping characteristic: C
No. of poles: 4
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 16 A, 400 V AC, Number of poles: 4, 10 kA, Tripping characteristic: C, N-pole present: Yes, 2 change-over contacts, Zone 1/2

Art. No.: 276612
Product Type: 8562/54-4046-160
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 16 A
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Subsitution for material: 215076
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
Auxiliary contacts: 2 change-over contacts
N-pole present: Yes
Tripping characteristic: C
No. of poles: 4
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 32 A, 400 V AC, Number of poles: 3, 10 kA, Tripping characteristic: C, N-pole present: No, Error signal, Zone 1/2

Art. No.: 276609
Product Type: 8562/54-3045-320
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated operational current: 32 A
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
Auxiliary contacts: Error signal
N-pole present: No
Tripping characteristic: C
No. of poles: 3
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 6 A, 400 V AC, Number of poles: 4, 10 kA, Tripping characteristic: B, N-pole present: Yes, 2 change-over contacts, Zone 1/2

Art. No.: 276610
Product Type: 8562/54-4026-060
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 6 A
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
Auxiliary contacts: 2 change-over contacts
N-pole present: Yes
Tripping characteristic: B
No. of poles: 4
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 16 A, 400 V AC, Number of poles: 3, 10 kA, Tripping characteristic: B, N-pole present: No, 1 change-over contact, Zone 1/2

Art. No.: 276608
Product Type: 8562/54-3025-160
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 16 A
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Subsitution for material: 215015
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
Auxiliary contacts: 1 change-over contact
N-pole present: No
Tripping characteristic: B
No. of poles: 3
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 25 A, 400 V AC, Number of poles: 4, 10 kA, Tripping characteristic: C, N-pole present: Yes, 2 change-over contacts, Zone 1/2

Art. No.: 276613
Product Type: 8562/54-4046-250
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 25 A
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Subsitution for material: 215077
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
Auxiliary contacts: 2 change-over contacts
N-pole present: Yes
Tripping characteristic: C
No. of poles: 4
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 10 A, 400 V AC/DC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: No, Error signal, Zone 1/2

Art. No.: 276593
Product Type: 8562/53-2045-100
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Rated operational current: 10 A
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
Auxiliary contacts: Error signal
Auxiliary contacts 2: 1 change-over contact
N-pole present: No
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 32 A, 400 V AC/DC, Number of poles: 2, 10 kA, Tripping characteristic: B, N-pole present: No, 2 NO, Zone 1/2

Art. No.: 276547
Product Type: 8562/53-2028-320
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated operational current: 32 A
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
Auxiliary contacts: 2 NO
N-pole present: No
Tripping characteristic: B
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 25 A, 400 V AC/DC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: No, Error signal, Zone 1/2

Art. No.: 276594
Product Type: 8562/53-2045-250
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 25 A
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
Auxiliary contacts: Error signal
Auxiliary contacts 2: 1 change-over contact
N-pole present: No
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 10 A, 400 V AC/DC, Number of poles: 2, 10 kA, Tripping characteristic: B, N-pole present: No, Error signal, Zone 1/2

Art. No.: 276591
Product Type: 8562/53-2025-100
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Rated operational current: 10 A
Subsitution for material: 214922
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
Auxiliary contacts: Error signal
Auxiliary contacts 2: 1 change-over contact
N-pole present: No
Tripping characteristic: B
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 10 A, 400 V AC/DC, Number of poles: 2, 10 kA, Tripping characteristic: B, N-pole present: No, 2 NO, Zone 1/2

Art. No.: 276548
Product Type: 8562/53-2028-100
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Rated operational current: 10 A
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
Auxiliary contacts: 2 NO
N-pole present: No
Tripping characteristic: B
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 6 A, 400 V AC/DC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: Yes, 2 NO, Zone 1/2

Art. No.: 276597
Product Type: 8562/53-5048-060
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 6 A
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
Auxiliary contacts: 2 NO
N-pole present: Yes
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 6 A, 400 V AC/DC, Number of poles: 2, 10 kA, Tripping characteristic: B, N-pole present: No, Error signal, Zone 1/2

Art. No.: 276592
Product Type: 8562/53-2025-060
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 6 A
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
Auxiliary contacts: Error signal
Auxiliary contacts 2: 1 change-over contact
N-pole present: No
Tripping characteristic: B
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 16 A, 400 V AC/DC, Number of poles: 2, 10 kA, Tripping characteristic: B, N-pole present: No, 2 NO, Zone 1/2

Art. No.: 276546
Product Type: 8562/53-2028-160
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 16 A
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
Auxiliary contacts: 2 NO
N-pole present: No
Tripping characteristic: B
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 32 A, 400 V AC/DC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: No, 2 NO, Zone 1/2

Art. No.: 276549
Product Type: 8562/53-2048-320
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated operational current: 32 A
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
Auxiliary contacts: 2 NO
N-pole present: No
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 1 A, 400 V AC/DC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: No, Error signal, Zone 1/2

Art. No.: 276596
Product Type: 8562/53-2045-010
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Rated operational current: 1 A
Subsitution for material: 214155
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
Auxiliary contacts: Error signal
Auxiliary contacts 2: 1 change-over contact
N-pole present: No
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 3 A, 400 V AC/DC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: No, Error signal, Zone 1/2

Art. No.: 276595
Product Type: 8562/53-2045-030
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Rated operational current: 3 A
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
Auxiliary contacts: Error signal
Auxiliary contacts 2: 1 change-over contact
N-pole present: No
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 16 A, 400 V AC/DC, Number of poles: 2, 10 kA, Tripping characteristic: B, N-pole present: No, Error signal, Zone 1/2

Art. No.: 276550
Product Type: 8562/53-2025-160
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 16 A
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
Auxiliary contacts: Error signal
Auxiliary contacts 2: 1 change-over contact
N-pole present: No
Tripping characteristic: B
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 32 A, 400 V AC, Number of poles: 4, 10 kA, Tripping characteristic: C, N-pole present: Yes, 1 change-over contact, Zone 1/2

Art. No.: 215095
Product Type: 8562/54-4045-320
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated operational current: 32 A
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
Auxiliary contacts: 1 change-over contact
N-pole present: Yes
Tripping characteristic: C
No. of poles: 4
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 25 A, 400 V AC, Number of poles: 4, 10 kA, Tripping characteristic: C, N-pole present: Yes, 1 change-over contact, Zone 1/2

Art. No.: 215094
Product Type: 8562/54-4045-250
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 25 A
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
Auxiliary contacts: 1 change-over contact
N-pole present: Yes
Tripping characteristic: C
No. of poles: 4
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 20 A, 400 V AC, Number of poles: 4, 10 kA, Tripping characteristic: C, N-pole present: Yes, 1 change-over contact, Zone 1/2

Art. No.: 215093
Product Type: 8562/54-4045-200
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Rated operational current: 20 A
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
Auxiliary contacts: 1 change-over contact
N-pole present: Yes
Tripping characteristic: C
No. of poles: 4
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 16 A, 400 V AC, Number of poles: 4, 10 kA, Tripping characteristic: C, N-pole present: Yes, 1 change-over contact, Zone 1/2

Art. No.: 215092
Product Type: 8562/54-4045-160
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 16 A
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
Auxiliary contacts: 1 change-over contact
N-pole present: Yes
Tripping characteristic: C
No. of poles: 4
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 10 A, 400 V AC, Number of poles: 4, 10 kA, Tripping characteristic: C, N-pole present: Yes, 1 change-over contact, Zone 1/2

Art. No.: 215091
Product Type: 8562/54-4045-100
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Rated operational current: 10 A
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
Auxiliary contacts: 1 change-over contact
N-pole present: Yes
Tripping characteristic: C
No. of poles: 4
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 40 A, 400 V AC, Number of poles: 4, 10 kA, Tripping characteristic: C, N-pole present: Yes, Zone 1/2

Art. No.: 215089
Product Type: 8562/54-4040-400
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Rated operational current: 40 A
Subsitution for material: 215071
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
N-pole present: Yes
Tripping characteristic: C
No. of poles: 4
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 25 A, 400 V AC, Number of poles: 4, 10 kA, Tripping characteristic: C, N-pole present: Yes, Zone 1/2

Art. No.: 215088
Product Type: 8562/54-4040-250
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 25 A
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Subsitution for material: 215070
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
N-pole present: Yes
Tripping characteristic: C
No. of poles: 4
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 20 A, 400 V AC, Number of poles: 4, 10 kA, Tripping characteristic: C, N-pole present: Yes, Zone 1/2

Art. No.: 215087
Product Type: 8562/54-4040-200
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Rated operational current: 20 A
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
N-pole present: Yes
Tripping characteristic: C
No. of poles: 4
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 10 A, 400 V AC, Number of poles: 4, 10 kA, Tripping characteristic: C, N-pole present: Yes, Zone 1/2

Art. No.: 215084
Product Type: 8562/54-4040-100
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Rated operational current: 10 A
Subsitution for material: 149746
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
N-pole present: Yes
Tripping characteristic: C
No. of poles: 4
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 6 A, 400 V AC, Number of poles: 4, 10 kA, Tripping characteristic: C, N-pole present: Yes, Zone 1/2

Art. No.: 215083
Product Type: 8562/54-4040-060
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 6 A
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Subsitution for material: 215067
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
N-pole present: Yes
Tripping characteristic: C
No. of poles: 4
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 16 A, 400 V AC, Number of poles: 4, 10 kA, Tripping characteristic: B, N-pole present: Yes, Zone 1/2

Art. No.: 215078
Product Type: 8562/54-4020-160
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 16 A
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
N-pole present: Yes
Tripping characteristic: B
No. of poles: 4
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 10 A, 400 V AC, Number of poles: 4, 10 kA, Tripping characteristic: C, N-pole present: Yes, 2 change-over contacts, Zone 1/2

Art. No.: 215074
Product Type: 8562/54-4046-100
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Rated operational current: 10 A
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
Auxiliary contacts: 2 change-over contacts
N-pole present: Yes
Tripping characteristic: C
No. of poles: 4
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 40 A, 400 V AC, Number of poles: 4, 6 kA, Tripping characteristic: C, N-pole present: Yes, Zone 1/2

Art. No.: 215071
Product Type: 8562/54-4030-400
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 6 kA
Rated operational current: 40 A
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
N-pole present: Yes
Tripping characteristic: C
No. of poles: 4
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 6 A, 400 V AC, Number of poles: 4, 6 kA, Tripping characteristic: C, N-pole present: Yes, Zone 1/2

Art. No.: 215067
Product Type: 8562/54-4030-060
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 6 A
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 6 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
N-pole present: Yes
Tripping characteristic: C
No. of poles: 4
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 10 A, 400 V AC, Number of poles: 3, 10 kA, Tripping characteristic: C, N-pole present: No, 1 change-over contact, Zone 1/2

Art. No.: 215060
Product Type: 8562/54-3044-100
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Rated operational current: 10 A
Subsitution for material: 149740
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
Auxiliary contacts: 1 change-over contact
N-pole present: No
Tripping characteristic: C
No. of poles: 3
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 6 A, 400 V AC, Number of poles: 3, 10 kA, Tripping characteristic: C, N-pole present: No, 1 change-over contact/Error signal, Zone 1/2

Art. No.: 215059
Product Type: 8562/54-3046-060
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 6 A
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Subsitution for material: 215029
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
Auxiliary contacts: 1 change-over contact, Error signal
N-pole present: No
Tripping characteristic: C
No. of poles: 3
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 25 A, 400 V AC, Number of poles: 3, 10 kA, Tripping characteristic: C, N-pole present: No, 1 change-over contact, Zone 1/2

Art. No.: 215058
Product Type: 8562/54-3045-250
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 25 A
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
Auxiliary contacts: 1 change-over contact
N-pole present: No
Tripping characteristic: C
No. of poles: 3
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 16 A, 400 V AC, Number of poles: 3, 10 kA, Tripping characteristic: C, N-pole present: No, 1 change-over contact, Zone 1/2

Art. No.: 215057
Product Type: 8562/54-3045-160
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 16 A
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
Auxiliary contacts: 1 change-over contact
N-pole present: No
Tripping characteristic: C
No. of poles: 3
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 40 A, 400 V AC, Number of poles: 3, 10 kA, Tripping characteristic: C, N-pole present: No, Zone 1/2

Art. No.: 215055
Product Type: 8562/53-3040-400
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Rated operational current: 40 A
Subsitution for material: 215020
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
N-pole present: No
Tripping characteristic: C
No. of poles: 3
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 25 A, 400 V AC, Number of poles: 3, 10 kA, Tripping characteristic: C, N-pole present: No, Zone 1/2

Art. No.: 215054
Product Type: 8562/53-3040-250
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 25 A
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Subsitution for material: 149786
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
N-pole present: No
Tripping characteristic: C
No. of poles: 3
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 20 A, 400 V AC, Number of poles: 3, 10 kA, Tripping characteristic: C, N-pole present: No, Zone 1/2

Art. No.: 215053
Product Type: 8562/53-3040-200
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Rated operational current: 20 A
Subsitution for material: 149781
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
N-pole present: No
Tripping characteristic: C
No. of poles: 3
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 16 A, 400 V AC, Number of poles: 3, 10 kA, Tripping characteristic: C, N-pole present: No, Zone 1/2

Art. No.: 215052
Product Type: 8562/53-3040-160
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 16 A
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Subsitution for material: 149776
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
N-pole present: No
Tripping characteristic: C
No. of poles: 3
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 10 A, 400 V AC, Number of poles: 3, 10 kA, Tripping characteristic: C, N-pole present: No, Zone 1/2

Art. No.: 215050
Product Type: 8562/53-3040-100
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Rated operational current: 10 A
Subsitution for material: 149771
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
N-pole present: No
Tripping characteristic: C
No. of poles: 3
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 6 A, 400 V AC, Number of poles: 3, 10 kA, Tripping characteristic: C, N-pole present: No, Zone 1/2

Art. No.: 215049
Product Type: 8562/53-3040-060
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 6 A
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
N-pole present: No
Tripping characteristic: C
No. of poles: 3
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 4 A, 400 V AC, Number of poles: 3, 10 kA, Tripping characteristic: C, N-pole present: No, Zone 1/2

Art. No.: 215048
Product Type: 8562/53-3040-040
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Rated operational current: 4 A
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
N-pole present: No
Tripping characteristic: C
No. of poles: 3
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 2 A, 400 V AC, Number of poles: 3, 10 kA, Tripping characteristic: C, N-pole present: No, Zone 1/2

Art. No.: 215046
Product Type: 8562/53-3040-020
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Rated operational current: 2 A
Subsitution for material: 149757
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
N-pole present: No
Tripping characteristic: C
No. of poles: 3
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 16 A, 400 V AC, Number of poles: 3, 10 kA, Tripping characteristic: B, N-pole present: No, 1 change-over contact, Zone 1/2

Art. No.: 215043
Product Type: 8562/54-3024-160
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 16 A
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
Auxiliary contacts: 1 change-over contact
N-pole present: No
Tripping characteristic: B
No. of poles: 3
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 10 A, 400 V AC, Number of poles: 3, 6 kA, Tripping characteristic: B, N-pole present: No, Zone 1/2

Art. No.: 215009
Product Type: 8562/53-3010-100
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 6 kA
Rated operational current: 10 A
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
N-pole present: No
Tripping characteristic: B
No. of poles: 3
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 16 A, 400 V AC, Number of poles: 4, 10 kA, Tripping characteristic: B, N-pole present: Yes, 1 change-over contact, Zone 1/2

Art. No.: 214977
Product Type: 8562/54-4025-160
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 16 A
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
Auxiliary contacts: 1 change-over contact
N-pole present: Yes
Tripping characteristic: B
No. of poles: 4
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 32 A, 400 V AC, Number of poles: 4, 10 kA, Tripping characteristic: B, N-pole present: Yes, Zone 1/2

Art. No.: 214976
Product Type: 8562/54-4020-320
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated operational current: 32 A
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
N-pole present: Yes
Tripping characteristic: B
No. of poles: 4
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 2 A, 400 V AC/DC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: No, 1 change-over contact, Zone 1/2

Art. No.: 214948
Product Type: 8562/53-2044-020
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Rated operational current: 2 A
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
Auxiliary contacts: 1 change-over contact
N-pole present: No
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 16 A, 400 V AC/DC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: No, 1 change-over contact, Zone 1/2

Art. No.: 214947
Product Type: 8562/53-2045-160
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 16 A
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
Auxiliary contacts: 1 change-over contact
N-pole present: No
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 6 A, 400 V AC/DC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: No, 1 change-over contact, Zone 1/2

Art. No.: 214946
Product Type: 8562/53-2045-060
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 6 A
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
Auxiliary contacts: 1 change-over contact
N-pole present: No
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 40 A, 400 V AC/DC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: No, Zone 1/2

Art. No.: 214945
Product Type: 8562/52-2040-400
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Rated operational current: 40 A
Subsitution for material: 214136
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
N-pole present: No
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 32 A, 400 V AC/DC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: No, Zone 1/2

Art. No.: 214944
Product Type: 8562/52-2040-320
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated operational current: 32 A
Rated switching capacity: 10 kA
Subsitution for material: 149778
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
N-pole present: No
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 25 A, 400 V AC/DC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: No, Zone 1/2

Art. No.: 214943
Product Type: 8562/52-2040-250
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 25 A
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Subsitution for material: 214135
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
N-pole present: No
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 20 A, 400 V AC/DC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: No, Zone 1/2

Art. No.: 214942
Product Type: 8562/52-2040-200
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Rated operational current: 20 A
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
N-pole present: No
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 6 A, 400 V AC/DC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: No, Zone 1/2

Art. No.: 214940
Product Type: 8562/52-2040-060
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 6 A
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Subsitution for material: 149759
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
N-pole present: No
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 4 A, 400 V AC/DC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: No, Zone 1/2

Art. No.: 214939
Product Type: 8562/52-2040-040
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Rated operational current: 4 A
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
N-pole present: No
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 3 A, 400 V AC/DC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: No, Zone 1/2

Art. No.: 214938
Product Type: 8562/52-2040-030
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Rated operational current: 3 A
Subsitution for material: 214132
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
N-pole present: No
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 1 A, 400 V AC/DC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: No, Zone 1/2

Art. No.: 214936
Product Type: 8562/52-2040-010
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Rated operational current: 1 A
Subsitution for material: 214131
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
N-pole present: No
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 0.500 A, 400 V AC/DC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: No, Zone 1/2

Art. No.: 214935
Product Type: 8562/52-2040-005
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 0.500 A
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Subsitution for material: 214130
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
N-pole present: No
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 6 A, 400 V AC/DC, Number of poles: 2, 10 kA, Tripping characteristic: B, N-pole present: No, 1 change-over contact, Zone 1/2

Art. No.: 214934
Product Type: 8562/53-2024-060
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 6 A
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
Auxiliary contacts: 1 change-over contact
N-pole present: No
Tripping characteristic: B
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 40 A, 400 V AC/DC, Number of poles: 2, 10 kA, Tripping characteristic: B, N-pole present: No, Zone 1/2

Art. No.: 214933
Product Type: 8562/52-2020-400
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Rated operational current: 40 A
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
N-pole present: No
Tripping characteristic: B
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 32 A, 400 V AC/DC, Number of poles: 2, 10 kA, Tripping characteristic: B, N-pole present: No, Zone 1/2

Art. No.: 214932
Product Type: 8562/52-2020-320
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated operational current: 32 A
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
N-pole present: No
Tripping characteristic: B
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 25 A, 400 V AC/DC, Number of poles: 2, 10 kA, Tripping characteristic: B, N-pole present: No, Zone 1/2

Art. No.: 214931
Product Type: 8562/52-2020-250
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 25 A
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Subsitution for material: 214127
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
N-pole present: No
Tripping characteristic: B
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 20 A, 400 V AC/DC, Number of poles: 2, 10 kA, Tripping characteristic: B, N-pole present: No, Zone 1/2

Art. No.: 214930
Product Type: 8562/52-2020-200
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Rated operational current: 20 A
Subsitution for material: 214126
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
N-pole present: No
Tripping characteristic: B
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 10 A, 400 V AC/DC, Number of poles: 2, 10 kA, Tripping characteristic: B, N-pole present: No, Zone 1/2

Art. No.: 214928
Product Type: 8562/52-2020-100
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Rated operational current: 10 A
Subsitution for material: 149743
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
N-pole present: No
Tripping characteristic: B
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 6 A, 400 V AC/DC, Number of poles: 2, 10 kA, Tripping characteristic: B, N-pole present: No, Zone 1/2

Art. No.: 214927
Product Type: 8562/52-2020-060
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 6 A
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Subsitution for material: 214119
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
N-pole present: No
Tripping characteristic: B
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 32 A, 230 V AC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: Yes, 1 change-over contact, Zone 1/2

Art. No.: 214888
Product Type: 8562/53-5045-320
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 230 - 230 V
Rated operational current: 32 A
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
Auxiliary contacts: 1 change-over contact
N-pole present: Yes
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 25 A, 230 V AC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: Yes, 1 change-over contact, Zone 1/2

Art. No.: 214887
Product Type: 8562/53-5045-250
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 230 - 230 V
Rated operational current: 25 A
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
Auxiliary contacts: 1 change-over contact
N-pole present: Yes
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 16 A, 230 V AC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: Yes, 1 change-over contact, Zone 1/2

Art. No.: 214885
Product Type: 8562/53-5045-160
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 230 - 230 V
Rated operational current: 16 A
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
Auxiliary contacts: 1 change-over contact
N-pole present: Yes
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 10 A, 230 V AC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: Yes, 1 change-over contact, Zone 1/2

Art. No.: 214883
Product Type: 8562/53-5045-100
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 230 - 230 V
Rated switching capacity: 10 kA
Rated operational current: 10 A
Subsitution for material: 149817
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
Auxiliary contacts: 1 change-over contact
N-pole present: Yes
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 6 A, 230 V AC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: Yes, 1 change-over contact, Zone 1/2

Art. No.: 214882
Product Type: 8562/53-5045-060
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 230 - 230 V
Rated operational current: 6 A
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
Auxiliary contacts: 1 change-over contact
N-pole present: Yes
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 4 A, 230 V AC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: Yes, 1 change-over contact, Zone 1/2

Art. No.: 214881
Product Type: 8562/53-5045-040
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 230 - 230 V
Rated switching capacity: 10 kA
Rated operational current: 4 A
Subsitution for material: 213965
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
Auxiliary contacts: 1 change-over contact
N-pole present: Yes
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 2 A, 230 V AC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: Yes, 1 change-over contact, Zone 1/2

Art. No.: 214879
Product Type: 8562/53-5045-020
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 230 - 230 V
Rated switching capacity: 10 kA
Rated operational current: 2 A
Subsitution for material: 149807
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
Auxiliary contacts: 1 change-over contact
N-pole present: Yes
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 32 A, 230 V AC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: Yes, Zone 1/2

Art. No.: 214876
Product Type: 8562/52-5040-320
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 230 - 230 V
Rated operational current: 32 A
Rated switching capacity: 10 kA
Subsitution for material: 213982
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
N-pole present: Yes
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 25 A, 230 V AC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: Yes, Zone 1/2

Art. No.: 214875
Product Type: 8562/52-5040-250
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 230 - 230 V
Rated operational current: 25 A
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
N-pole present: Yes
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 20 A, 230 V AC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: Yes, Zone 1/2

Art. No.: 214874
Product Type: 8562/52-5040-200
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 230 - 230 V
Rated switching capacity: 10 kA
Rated operational current: 20 A
Subsitution for material: 213980
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
N-pole present: Yes
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 10 A, 230 V AC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: Yes, Zone 1/2

Art. No.: 214872
Product Type: 8562/52-5040-100
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 230 - 230 V
Rated switching capacity: 10 kA
Rated operational current: 10 A
Subsitution for material: 149841
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
N-pole present: Yes
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 6 A, 230 V AC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: Yes, Zone 1/2

Art. No.: 214871
Product Type: 8562/52-5040-060
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 230 - 230 V
Rated operational current: 6 A
Rated switching capacity: 10 kA
Subsitution for material: 149837
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
N-pole present: Yes
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 4 A, 230 V AC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: Yes, Zone 1/2

Art. No.: 214870
Product Type: 8562/52-5040-040
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 230 - 230 V
Rated switching capacity: 10 kA
Rated operational current: 4 A
Subsitution for material: 149833
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
N-pole present: Yes
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 2 A, 230 V AC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: Yes, Zone 1/2

Art. No.: 214868
Product Type: 8562/52-5040-020
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 230 - 230 V
Rated switching capacity: 10 kA
Rated operational current: 2 A
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
N-pole present: Yes
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 1 A, 230 V AC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: Yes, Zone 1/2

Art. No.: 214867
Product Type: 8562/52-5040-010
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 230 - 230 V
Rated switching capacity: 10 kA
Rated operational current: 1 A
Subsitution for material: 213962
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
N-pole present: Yes
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 16 A, 230 V AC, Number of poles: 2, 10 kA, Tripping characteristic: B, N-pole present: Yes, 1 change-over contact, Zone 1/2

Art. No.: 214865
Product Type: 8562/53-5025-160
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 230 - 230 V
Rated operational current: 16 A
Rated switching capacity: 10 kA
Subsitution for material: 214861
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
Auxiliary contacts: 1 change-over contact
N-pole present: Yes
Tripping characteristic: B
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 20 A, 230 V AC, Number of poles: 2, 10 kA, Tripping characteristic: B, N-pole present: Yes, Zone 1/2

Art. No.: 214864
Product Type: 8562/52-5020-200
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 230 - 230 V
Rated switching capacity: 10 kA
Rated operational current: 20 A
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
N-pole present: Yes
Tripping characteristic: B
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 16 A, 230 V AC, Number of poles: 2, 10 kA, Tripping characteristic: B, N-pole present: Yes, Zone 1/2

Art. No.: 214863
Product Type: 8562/52-5020-160
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 230 - 230 V
Rated operational current: 16 A
Rated switching capacity: 10 kA
Subsitution for material: 149804
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
N-pole present: Yes
Tripping characteristic: B
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 10 A, 230 V AC/DC, Number of poles: 1, 10 kA, Tripping characteristic: C, N-pole present: No, 1 change-over contact, Zone 1/2

Art. No.: 214848
Product Type: 8562/52-1045-100
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 230 - 230 V
Rated switching capacity: 10 kA
Rated operational current: 10 A
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 48 V
Auxiliary contacts: 1 change-over contact
N-pole present: No
Tripping characteristic: C
No. of poles: 1
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 4 A, 230 V AC/DC, Number of poles: 1, 10 kA, Tripping characteristic: C, N-pole present: No, 1 change-over contact, Zone 1/2

Art. No.: 214847
Product Type: 8562/52-1045-040
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 230 - 230 V
Rated switching capacity: 10 kA
Rated operational current: 4 A
Subsitution for material: 213814
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 48 V
Auxiliary contacts: 1 change-over contact
N-pole present: No
Tripping characteristic: C
No. of poles: 1
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 16 A, 230 V AC/DC, Number of poles: 1, 10 kA, Tripping characteristic: B, N-pole present: No, 1 change-over contact, Zone 1/2

Art. No.: 214846
Product Type: 8562/52-1024-160
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 230 - 230 V
Rated operational current: 16 A
Rated switching capacity: 10 kA
Subsitution for material: 213770
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 48 V
Auxiliary contacts: 1 change-over contact
N-pole present: No
Tripping characteristic: B
No. of poles: 1
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 32 A, 230 V AC/DC, Number of poles: 1, 10 kA, Tripping characteristic: C, N-pole present: No, Zone 1/2

Art. No.: 214844
Product Type: 8562/51-1040-320
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 230 - 230 V
Rated operational current: 32 A
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 48 V
N-pole present: No
Tripping characteristic: C
No. of poles: 1
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 20 A, 230 V AC/DC, Number of poles: 1, 10 kA, Tripping characteristic: C, N-pole present: No, Zone 1/2

Art. No.: 214842
Product Type: 8562/51-1040-200
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 230 - 230 V
Rated switching capacity: 10 kA
Rated operational current: 20 A
Subsitution for material: 149630
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 48 V
N-pole present: No
Tripping characteristic: C
No. of poles: 1
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 16 A, 230 V AC/DC, Number of poles: 1, 10 kA, Tripping characteristic: C, N-pole present: No, Zone 1/2

Art. No.: 214841
Product Type: 8562/51-1040-160
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 230 - 230 V
Rated operational current: 16 A
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 48 V
N-pole present: No
Tripping characteristic: C
No. of poles: 1
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 10 A, 230 V AC/DC, Number of poles: 1, 10 kA, Tripping characteristic: C, N-pole present: No, Zone 1/2

Art. No.: 214779
Product Type: 8562/51-1040-100
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 230 - 230 V
Rated switching capacity: 10 kA
Rated operational current: 10 A
Subsitution for material: 149615
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 48 V
N-pole present: No
Tripping characteristic: C
No. of poles: 1
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 6 A, 230 V AC/DC, Number of poles: 1, 10 kA, Tripping characteristic: C, N-pole present: No, Zone 1/2

Art. No.: 214778
Product Type: 8562/51-1040-060
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 230 - 230 V
Rated operational current: 6 A
Rated switching capacity: 10 kA
Subsitution for material: 149608
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 48 V
N-pole present: No
Tripping characteristic: C
No. of poles: 1
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 4 A, 230 V AC/DC, Number of poles: 1, 10 kA, Tripping characteristic: C, N-pole present: No, Zone 1/2

Art. No.: 214777
Product Type: 8562/51-1040-040
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 230 - 230 V
Rated switching capacity: 10 kA
Rated operational current: 4 A
Subsitution for material: 149600
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 48 V
N-pole present: No
Tripping characteristic: C
No. of poles: 1
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 3 A, 230 V AC/DC, Number of poles: 1, 10 kA, Tripping characteristic: C, N-pole present: No, Zone 1/2

Art. No.: 214776
Product Type: 8562/51-1040-030
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 230 - 230 V
Rated switching capacity: 10 kA
Rated operational current: 3 A
Subsitution for material: 149592
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 48 V
N-pole present: No
Tripping characteristic: C
No. of poles: 1
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 2 A, 230 V AC/DC, Number of poles: 1, 10 kA, Tripping characteristic: C, N-pole present: No, Zone 1/2

Art. No.: 214775
Product Type: 8562/51-1040-020
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 230 - 230 V
Rated switching capacity: 10 kA
Rated operational current: 2 A
Subsitution for material: 149560
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 48 V
N-pole present: No
Tripping characteristic: C
No. of poles: 1
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 1 A, 230 V AC/DC, Number of poles: 1, 10 kA, Tripping characteristic: C, N-pole present: No, Zone 1/2

Art. No.: 214774
Product Type: 8562/51-1040-010
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 230 - 230 V
Rated switching capacity: 10 kA
Rated operational current: 1 A
Subsitution for material: 149540
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 48 V
N-pole present: No
Tripping characteristic: C
No. of poles: 1
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 32 A, 230 V AC/DC, Number of poles: 1, 10 kA, Tripping characteristic: B, N-pole present: No, Zone 1/2

Art. No.: 214773
Product Type: 8562/51-1020-320
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 230 - 230 V
Rated operational current: 32 A
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 48 V
N-pole present: No
Tripping characteristic: B
No. of poles: 1
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 20 A, 230 V AC/DC, Number of poles: 1, 10 kA, Tripping characteristic: B, N-pole present: No, Zone 1/2

Art. No.: 214771
Product Type: 8562/51-1020-200
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 230 - 230 V
Rated switching capacity: 10 kA
Rated operational current: 20 A
Subsitution for material: 213783
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 48 V
N-pole present: No
Tripping characteristic: B
No. of poles: 1
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 16 A, 230 V AC/DC, Number of poles: 1, 10 kA, Tripping characteristic: B, N-pole present: No, Zone 1/2

Art. No.: 214662
Product Type: 8562/51-1020-160
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 230 - 230 V
Rated operational current: 16 A
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 48 V
N-pole present: No
Tripping characteristic: B
No. of poles: 1
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 10 A, 230 V AC/DC, Number of poles: 1, 10 kA, Tripping characteristic: B, N-pole present: No, Zone 1/2

Art. No.: 214660
Product Type: 8562/51-1020-100
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 230 - 230 V
Rated switching capacity: 10 kA
Rated operational current: 10 A
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 48 V
N-pole present: No
Tripping characteristic: B
No. of poles: 1
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 6 A, 230 V AC/DC, Number of poles: 1, 10 kA, Tripping characteristic: B, N-pole present: No, Zone 1/2

Art. No.: 214659
Product Type: 8562/51-1020-060
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 230 - 230 V
Rated operational current: 6 A
Rated switching capacity: 10 kA
Subsitution for material: 149497
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 48 V
N-pole present: No
Tripping characteristic: B
No. of poles: 1
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 1 A, 400 V AC/DC, Number of poles: 2, 6 kA, Tripping characteristic: C, N-pole present: No, 1 change-over contact, Zone 1/2

Art. No.: 214155
Product Type: 8562/53-2034-010
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 6 kA
Rated operational current: 1 A
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
Auxiliary contacts: 1 change-over contact
N-pole present: No
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 10 A, 400 V AC/DC, Number of poles: 2, 6 kA, Tripping characteristic: C, N-pole present: No, Zone 1/2

Art. No.: 214149
Product Type: 8562/52-2160-100
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 6 kA
Rated operational current: 10 A
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 440 V
N-pole present: No
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 1 A, 400 V AC/DC, Number of poles: 2, 6 kA, Tripping characteristic: C, N-pole present: No, Zone 1/2

Art. No.: 214131
Product Type: 8562/52-2030-010
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 6 kA
Rated operational current: 1 A
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
N-pole present: No
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 0.500 A, 400 V AC/DC, Number of poles: 2, 6 kA, Tripping characteristic: C, N-pole present: No, Zone 1/2

Art. No.: 214130
Product Type: 8562/52-2030-005
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 0.500 A
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 6 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
N-pole present: No
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 0.500 A, 230 V AC, Number of poles: 2, 6 kA, Tripping characteristic: C, N-pole present: Yes, Zone 1/2

Art. No.: 213977
Product Type: 8562/52-5030-005
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 0.500 A
AC rated operational voltage: 230 - 230 V
Rated switching capacity: 6 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
N-pole present: Yes
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 1 A, 230 V AC, Number of poles: 2, 6 kA, Tripping characteristic: C, N-pole present: Yes, 1 change-over contact, Zone 1/2

Art. No.: 213962
Product Type: 8562/53-5035-010
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 230 - 230 V
Rated switching capacity: 6 kA
Rated operational current: 1 A
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
Auxiliary contacts: 1 change-over contact
N-pole present: Yes
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 20 A, 230 V AC/DC, Number of poles: 1, 6 kA, Tripping characteristic: B, N-pole present: No, Zone 1/2

Art. No.: 213794
Product Type: 8562/51-1150-200
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 230 - 230 V
Rated switching capacity: 6 kA
Rated operational current: 20 A
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 48 V
N-pole present: No
Tripping characteristic: B
No. of poles: 1
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 16 A, 230 V AC/DC, Number of poles: 1, 6 kA, Tripping characteristic: B, N-pole present: No, 1 change-over contact, Zone 1/2

Art. No.: 213770
Product Type: 8562/52-1014-160
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 230 - 230 V
Rated operational current: 16 A
Rated switching capacity: 6 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 48 V
Auxiliary contacts: 1 change-over contact
N-pole present: No
Tripping characteristic: B
No. of poles: 1
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 6 A, 230 V AC/DC, Number of poles: 1, 6 kA, Tripping characteristic: B, N-pole present: No, 1 change-over contact, Zone 1/2

Art. No.: 213768
Product Type: 8562/52-1014-060
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 230 - 230 V
Rated operational current: 6 A
Rated switching capacity: 6 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 48 V
Auxiliary contacts: 1 change-over contact
N-pole present: No
Tripping characteristic: B
No. of poles: 1
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 16 A, 230 V AC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: Yes, Zone 1/2

Art. No.: 149847
Product Type: 8562/52-5040-160
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 230 - 230 V
Rated operational current: 16 A
Rated switching capacity: 10 kA
Subsitution for material: 149844
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
N-pole present: Yes
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 10 A, 230 V AC, Number of poles: 2, 10 kA, Tripping characteristic: B, N-pole present: Yes, Zone 1/2

Art. No.: 149819
Product Type: 8562/52-5020-100
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 230 - 230 V
Rated switching capacity: 10 kA
Rated operational current: 10 A
Subsitution for material: 149799
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
N-pole present: Yes
Tripping characteristic: B
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 6 A, 230 V AC, Number of poles: 2, 10 kA, Tripping characteristic: B, N-pole present: Yes, Zone 1/2

Art. No.: 149814
Product Type: 8562/52-5020-060
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 230 - 230 V
Rated operational current: 6 A
Rated switching capacity: 10 kA
Subsitution for material: 149793
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
N-pole present: Yes
Tripping characteristic: B
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 32 A, 400 V AC, Number of poles: 3, 10 kA, Tripping characteristic: C, N-pole present: No, Zone 1/2

Art. No.: 149797
Product Type: 8562/53-3040-320
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated operational current: 32 A
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
N-pole present: No
Tripping characteristic: C
No. of poles: 3
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 16 A, 400 V AC/DC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: No, Zone 1/2

Art. No.: 149788
Product Type: 8562/52-2040-160
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 16 A
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Subsitution for material: 149768
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
N-pole present: No
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 10 A, 400 V AC/DC, Number of poles: 2, 10 kA, Tripping characteristic: C, N-pole present: No, Zone 1/2

Art. No.: 149783
Product Type: 8562/52-2040-100
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Rated operational current: 10 A
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
N-pole present: No
Tripping characteristic: C
No. of poles: 2
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 32 A, 400 V AC, Number of poles: 4, 10 kA, Tripping characteristic: C, N-pole present: Yes, Zone 1/2

Art. No.: 149761
Product Type: 8562/54-4040-320
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
AC rated operational voltage: 400 - 400 V
Rated operational current: 32 A
Rated switching capacity: 10 kA
Subsitution for material: 149756
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
N-pole present: Yes
Tripping characteristic: C
No. of poles: 4
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 16 A, 400 V AC, Number of poles: 3, 10 kA, Tripping characteristic: B, N-pole present: No, Zone 1/2

Art. No.: 149752
Product Type: 8562/53-3020-160
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 16 A
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Subsitution for material: 149855
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
N-pole present: No
Tripping characteristic: B
No. of poles: 3
Please select products you want to compare Compare
Ex Miniature circuit breakers IEC Series 8562 R. STAHL

Miniature circuit breaker, 16 A, 400 V AC/DC, Number of poles: 2, 10 kA, Tripping characteristic: B, N-pole present: No, Zone 1/2

Art. No.: 149749
Product Type: 8562/52-2020-160
min. ambient temperature: -20 °C
max. ambient temperature: +60 °C
Rated operational current: 16 A
AC rated operational voltage: 400 - 400 V
Rated switching capacity: 10 kA
Zone: M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates: ATEX (PTB), IECEx (PTB), China (CQST), Brazil (ULB)
DC rated operational voltage: 110 V
N-pole present: No
Tripping characteristic: B
No. of poles: 2
