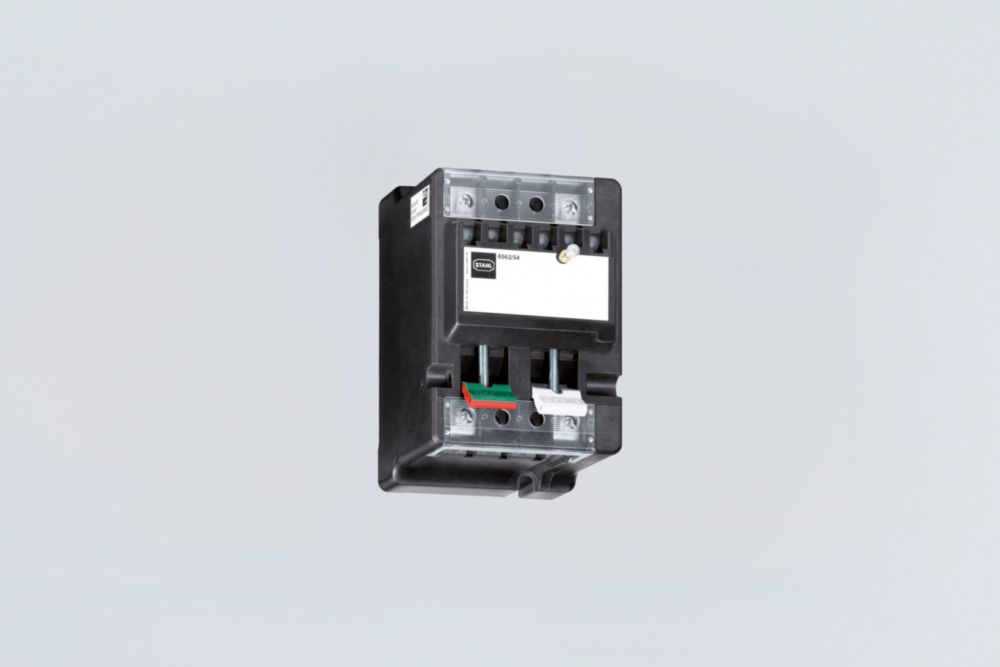

Residual current circuit breakers with overcurrent release Series 8562
Art. No.:
214986
Product Type:
8562/54-2270-320
Rated residual current:
0.03 A
Rated operational current:
32 A
Rated switching capacity:
10 kA
AC rated operational voltage:
133 - 230 V
Zone Filter:
M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
N-pole present:
No
Tripping characteristic:
C
No. of poles:
2
Country of origin:
DE
On request
Technical data
General
| MY R. STAHL | 8562C |
| Product Type | 8562/54-2270-320 |
| Highlights | Residual current monitoring and tripping in the event of overvoltageCombination of residual current circuit breaker and miniature circuit breaker: Saves space, reduces installation requirementsGood current limiting in the event of a short circuit |
| Functional Description | The R. STAHL Series 8562 residual current circuit breaker with overcurrent release is a residual current circuit breaker and 2-pole switching miniature circuit breaker in one: It measures residual currents and triggers in the event of overvoltage, thereby protecting the conductors in your systems from overload, earth faults and short circuits. Its excellent current limiting feature reduces the load on the conductor in the event of a short circuit. |
Explosion Protection
Electrical Data
Ambient Conditions
Mechanical Data
Commercial data
Downloads
| Description | Document Type | Language | |
|---|---|---|---|
| Residual Current Circuit-Breaker with Integral Overcurrent Protection Series 8562 | Data Sheet |
 |
|
| Residual Current Circuit-Breaker with Integral Overcurrent Protection Series 8562 | Data Sheet |
 |
|
| Residual current Miniature circuit breaker Miniature circuit breaker - 8562/54-2270-320 - 214986 - d ... | Single Data Sheet |
|
|
| Residual current Miniature circuit breaker Miniature circuit breaker - 8562/54-2270-320 - 214986 - e ... | Single Data Sheet |
|
|
| Residual current Miniature circuit breaker Miniature circuit breaker - 8562/54-2270-320 - 214986 - f ... | Single Data Sheet |
 |
|
| Residual current Miniature circuit breaker Miniature circuit breaker - 8562/54-2270-320 - 214986 - e ... | Single Data Sheet |
 |
