Visual signalling devices

Wide range of signal lights for safety in hazardous areas
R. STAHL's visual signalling devices issue highly visible signals in many different forms, such as flashing beacon lighting, continuous lighting, rotating beacons lights and status indicators, which they use to provide effective protection for systems and people in hazardous areas – even in harsh, offshore environments.

Visual signals provide a warning, alert or information, for example in the event of equipment malfunctions or safety issues, or when systems are starting up. R. STAHL supplies robust visual signalling devices for use in harsh environments that issue highly visible light signals tailored to your specific application. Our comprehensive product range offers you the choice between various different light types in a number of different colours and flashing patterns. The signalling devices in our product range offer various types of protection. We supply indicator lights, alarm lights, status indicators and much more. Take a look at what we have to offer, and you will find we have just the signalling devices you need.

Filter product lines

Select the product lines that are applicable to your intended use.

Filter product lines

hide
Certificates
Rated operational voltage AC
Rated operational voltage DC
Number of light fields
Lamp
Min. ambient temperature
Max. ambient temperature
Enclosure material
Number of light fields
Colour of glass
Lens Colour
Enclosure colour

7 Series (167 Products)

Ex Visual signalling device with connection chamber, LED / 5 J, ALU, Series FL60/3 - YODALEX 3 R. STAHL

Visual signalling device with connection chamber, LED / 5 J, ALU, Series FL60/3 - YODALEX 3

  • The latest generation of audible and visual alarm devices
  • Ex d/Ex e connection chambers
  • Visual solutions with 5 to 21 J XENON and high-power LEDs with various light modes and 4 light channels
  • Four output levels can be configured
  • Brackets, fixings and protective grid made from stainless steel
  • Compliant with EN 54/DNV
  • Fastening bracket and protective cage included
Ex Visual signalling device, LED / 5 J, ALU, compact, Series 6161 R. STAHL

Visual signalling device, LED / 5 J, ALU, compact, Series 6161

  • Lamp: Flashing beacon – XENON (5 J)/continuous beacon – LED
  • Type of protection: Ex d with Ex e connection chamber
  • Class: IP66 (IEC 60529)
  • Robust aluminium enclosure (powder-coated)
  • Six lens colours can be ordered
Ex Visual signalling devices, LED / 5 J, GRP, compact Series FX15 R. STAHL

Visual signalling devices, LED / 5 J, GRP, compact Series FX15

  • Lamp: Flashing beacon – XENON (5 J)/continuous beacon – LED (6.5 W)
  • Type of protection: Ex d
  • Class: IP66/IP67 (IEC 60529/NEMA 4X)
  • Corrosion-resistant GRP enclosure
  • Including stainless steel protective cage
  • Eight light-amplifying Fresnel lens colours can be ordered
  • Low weight (2.25 kg)
Ex Optical multi-signalling devices, traffic light, LED / 5 J, GRP, MS series R. STAHL

Optical multi-signalling devices, traffic light, LED / 5 J, GRP, MS series

  • Pre-wired for use with a multi-purpose signalling device
  • Corrosion-resistant
  • Suitable for offshore/onshore and harsh environments
  • FX15 signalling device made from GRP and YA90 for visual and audible alerts
  • including
  • flashing xenon or steady LED options
  • Sounder with max. output of 115 dB
  • Ex e connection chamber
  • Quick and easy to terminate
  • High degree of protection IP66 and IP67
  • Extreme temperature range from -55 °C to +70 °C
  • Light-enhancing lens, eight colour options
  • Up to five beacon positions, plus junction box
  • Up to three beacon positions and one YA90 sounder plus
  • junction box
Ex Obstruction Light LED Series TEF2460 R. STAHL

Obstruction Light LED Series TEF2460

  • Complies with: ICAO Annex 14 Vol. 1 Ch. 6, Low intensity type A or B
  • Integrated terminal box with drain plug/breather
  • Maintenance free
  • Rugged construction
  • Encapsulated electronics. No risk of water intrusion to LED’s and electronics
  • RED+IR Versions are Night Vision Goggle compatible.
  • Instant light
  • Resistant to vibrations
Ex Navigation Light Series TEF2850 R. STAHL

Navigation Light Series TEF2850

  • Integrated terminal box
  • All round lanterns are delivered with mounting bracket for 2“ pipe
  • Designed for use in arctic and tropical waters
  • Resistant to vibrations
  • Lens of through-coloured glass, no decolouration during the lifetime of the lantern.

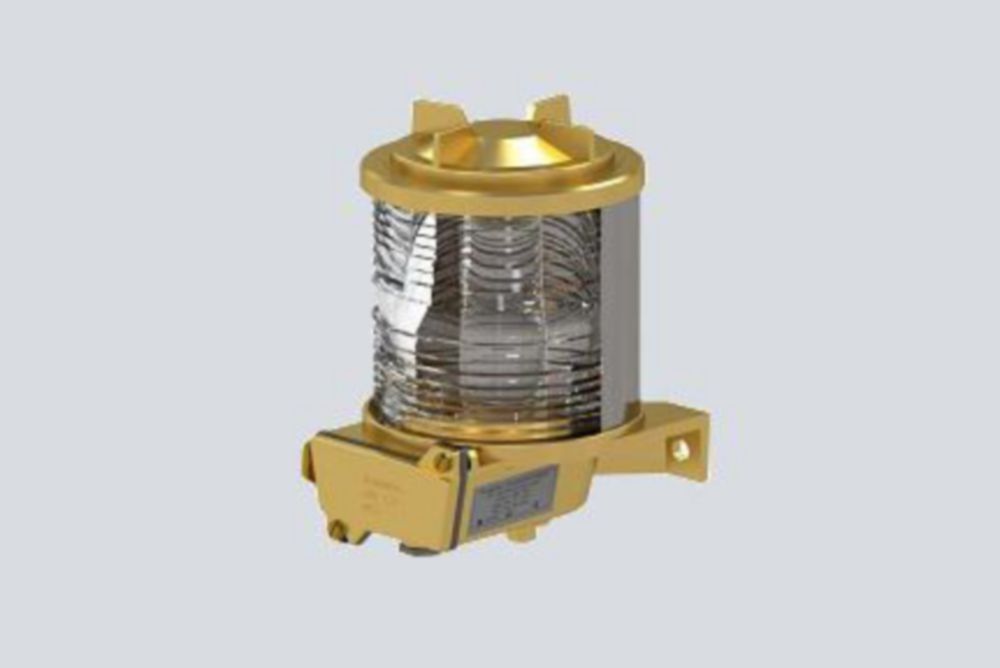

Ex Navigation Light Series TEF2870 R. STAHL

Navigation Light Series TEF2870

  • Integrated terminal box, no need for extra connection box
  • Access to bulb from top - enabling quick replacement of light source
  • Supplied with isolators to be used between the lantern and hull/mast (such as aluminium) to prevent corrosion
  • Durable bracket in stainless steel (SS316L) can be used when installing the lantern on 1” or 2” pipes
  • Extremely durable to mechanical deterioration; resistant to vibrations
  • Small dimensions; designed for use in arctic and tropical waters
  • Lens of through-coloured glass ‒ no decolouration throughout the lifetime of the lantern; 20 years warranty on lantern
  • The lens can easily be cleaned for paint, bird droppings, pollution and oil
