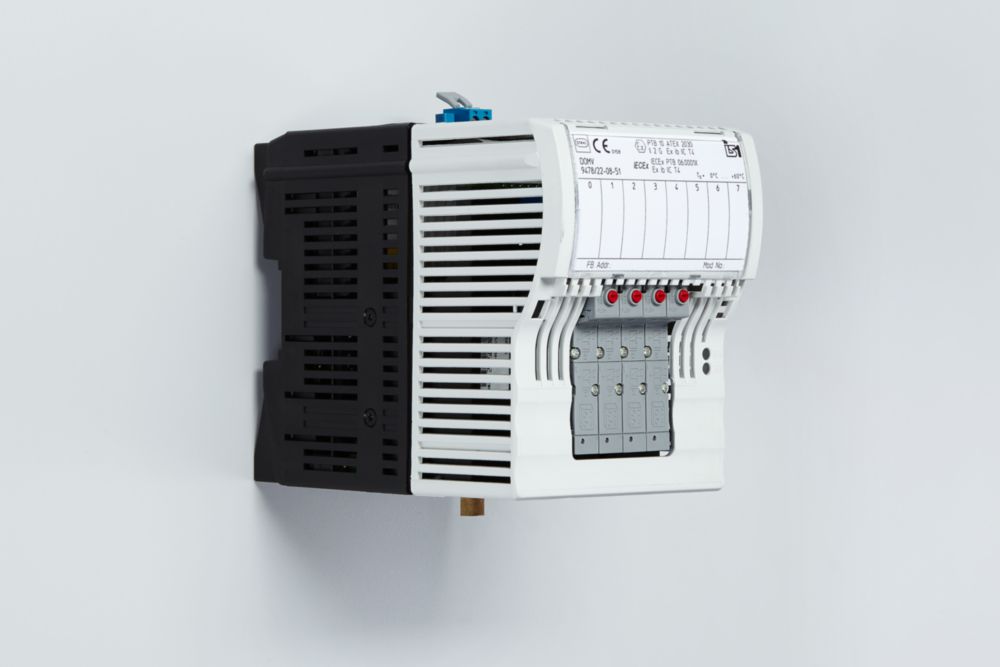

Digital output module valve for Zone 1 Series 9478
Art. No.:
203599
Product Type:
9478/22-08-51
Product description:
Remote I/O IS1+ Valve digital output module for Zone 1 pneu.
Max. power consumption:
5.75 W
Zone Filter:
Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates:
ATEX (PTB), Canada (FM), China (NEPSI), IECEx (PTB), Korea (KTL), SIL (exida), USA (FM)
Country of origin:
DE
On request
Technical data
General
| MY R. STAHL | 9478A |
| Product variant | Digital output module valve for Zone 1 |
| Product Type | 9478/22-08-51 |
| Product description | Remote I/O IS1+ Valve digital output module for Zone 1 pneu. |
| Highlights | 8 channels for pneumatic valvesPneumatic outputs with integrated 3/2-way valves and SIL2 shutdown inputModule in Zone 1 can be replaced without having to disconnect the power supply (i.e. hot-swapped) |
| Functional Description | The 9478 digital output module valve for Zone 1 has eight channels for controlling pneumatic valves. The integrated 3/2-way solenoid valves are monitored to check for wire breakage and short-circuiting regardless of the control status. An additional Ex i control input is suitable for safe shutdown up to SIL 2. Operation in combination with Ex i I/O modules is permissible. |
Explosion Protection
Safety Data
Auxiliary power
Galvanic isolation
Input
Device Specific Data
Diagnostics
Ambient Conditions
Mechanical Data
Mounting / Installation
Commercial data
Downloads
| Description | Document Type | Language | |
|---|---|---|---|
| IS1+ Remote I/O Digital output module valve For Zone 1 pneu. - 9478/22-08-51 - 203599 - en-US | Single Data Sheet |
  |
|
| Remote I/O IS1+ Valve digital output module for Zone 1 pneu. - 9478/22-08-51 - 203599 - de-DE | Single Data Sheet |
 |
|
| Remote I/O IS1+ Valve digital output module for Zone 1 pneu. - 9478/22-08-51 - 203599 - en-GB | Single Data Sheet |
 |
|
| Digital output module valve for Zone 1/Div. 1 - 9478 - fr-FR | Product Overview |
 |
|
| Digital output module valve for Zone 1/Div. 1 - 9478 - es-ES | Product Overview |
 |
|
| Digital output module valve for Zone 1/Div. 1 - 9478 - de-DE | Product Overview |
|
|
| Digital output module valve for Zone 1/Div. 1 - 9478 - en-GB | Product Overview |
|
|
| Digital output module valve for Zone 1/Div. 1 - 9478 - zh-CN | Product Overview |
 |
|
| Digital output module valve for Zone 1/Div. 1 - 9478 - en-US | Product Overview |
|
|
| Remote I/O IS1+ Valve digital output module for Zone 1 pneu. - 9478/22-08-51 - 203599 - fr-FR | Single Data Sheet |
|
|
| Remote I/O IS1+ Valve digital output module for Zone 1 pneu. - 9478/22-08-51 - 203599 - es-ES | Single Data Sheet |
|
