Safety switches Series 8150/5-V37

R. STAHL Series 8150/5-V37 safety switches safely disconnect machines and system parts from the energy supply for cleaning and repair as prescribed. All of the installed load disconnect switches have AC-3 switching capacity. The switches can be locked in the 0-position using padlocks.

  • Can be used with conventional drives or with variable-frequency drives
  • Intelligent design: A single rotary actuator for actuating the main and auxiliary contacts, ≥ 20 ms leading auxiliary contact for safe disconnection
  • Designed in accordance with IEC/EN 62626-1, class 1
  • The rotary actuator can be locked in the 0-position with three padlocks

Filter product lines

hide
Certificates
AC rated operational voltage
Rated operational current
Frequency range
Switching capacity AC-3 230 V
Switching capacity AC-3 400 V
Switching capacity AC-3 440 V
Switching capacity AC-3 500 V
Switching capacity AC-3 690 V
Schaltleistung AC-23 690 V
Min. ambient temperature
Max. ambient temperature
Enclosure material
Handle colour
Detailed number of poles

10 Products

Please select products you want to compare Compare
Ex Safety switches Series 8150/5-V37 R. STAHL

Safety switches Series 8150/5-V37

Art. No.: 214171
Product Type: 8150/5-V37-302-50-0010
max. ambient temperature: +50 °C
min. ambient temperature: -40 °C
Frequency range: 50 - 60 Hz
AC rated operational voltage: 690 V
Rated operational current: 16 A
Certificates: ATEX (PTB), IECEx (PTB), India (PESO), China (NEPSI)
Switching capacity AC-3 230 V: 4.00 kW
Switching capacity AC-3 400 V: 7.50 kW
Switching capacity AC-3 440 V: 7.50 kW
Switching capacity AC-3 500 V: 7.50 kW
Switching capacity AC-3 690 V: 11.00 kW
Enclosure material: Stainless steel 1.4404
Handle colour: Black shroud and handle
Detailed number of poles: 3-pole
Please select products you want to compare Compare
Ex Safety switches Series 8150/5-V37 R. STAHL

Safety switches Series 8150/5-V37

Art. No.: 222694
Product Type: 8150/5-V37-308-51-1010-K
min. ambient temperature: -40 °C
max. ambient temperature: +44 °C
Frequency range: 50 - 60 Hz
AC rated operational voltage: 690 V
Rated operational current: 125 A
Certificates: ATEX (PTB), IECEx (PTB), India (PESO), China (NEPSI)
Switching capacity AC-3 230 V: 37.00 - 45.00 kW
Switching capacity AC-3 400 V: 55.00 - 90.00 kW
Switching capacity AC-3 440 V: 75.00 - 90.00 kW
Switching capacity AC-3 500 V: 75.00 - -- kW
Switching capacity AC-3 690 V: 110.00 - -- kW
Enclosure material: Stainless steel 1.4404
Handle colour: Yellow shroud, red handle
Detailed number of poles: 3-pole
Please select products you want to compare Compare
Ex Safety switches Series 8150/5-V37 | Art. No. 222691 R. STAHL

Safety switches Series 8150/5-V37

Art. No.: 222691
Product Type: 8150/5-V37-304-50-1010
min. ambient temperature: -40 °C
max. ambient temperature: +43 °C
Frequency range: 50 - 60 Hz
AC rated operational voltage: 690 V
Rated operational current: 25 A
Certificates: ATEX (PTB), IECEx (PTB), India (PESO), China (NEPSI)
Switching capacity AC-3 230 V: 5.50 kW
Switching capacity AC-3 400 V: 11.00 kW
Switching capacity AC-3 440 V: 11.00 kW
Switching capacity AC-3 500 V: 15.00 kW
Switching capacity AC-23 690 V: 22.00 kW
Enclosure material: Stainless steel 1.4404
Handle colour: Yellow shroud, red handle
Detailed number of poles: 3-pole
Please select products you want to compare Compare
Ex Safety switches Series 8150/5-V37 R. STAHL

Safety switches Series 8150/5-V37

Art. No.: 222693
Product Type: 8150/5-V37-306-51-1010-K
min. ambient temperature: -40 °C
max. ambient temperature: +42 °C
Frequency range: 50 - 60 Hz
Rated operational current: 63 A
AC rated operational voltage: 690 V
Certificates: ATEX (PTB), IECEx (PTB), India (PESO), China (NEPSI)
Switching capacity AC-3 230 V: 18.50 - 22.00 kW
Switching capacity AC-3 400 V: 30.00 - 45.00 kW
Switching capacity AC-3 440 V: 37.00 - 45.00 kW
Switching capacity AC-3 500 V: 37.00 - 55.00 kW
Switching capacity AC-3 690 V: 55.00 - -- kW
Enclosure material: Stainless steel 1.4404
Handle colour: Yellow shroud, red handle
Detailed number of poles: 3-pole
Please select products you want to compare Compare
Ex Safety switches Series 8150/5-V37 R. STAHL

Safety switches Series 8150/5-V37

Art. No.: 222688
Product Type: 8150/5-V37-302-50-1010
max. ambient temperature: +50 °C
min. ambient temperature: -40 °C
Frequency range: 50 - 60 Hz
AC rated operational voltage: 690 V
Rated operational current: 16 A
Certificates: ATEX (PTB), IECEx (PTB), India (PESO), China (NEPSI)
Switching capacity AC-3 230 V: 4.00 kW
Switching capacity AC-3 400 V: 7.50 kW
Switching capacity AC-3 440 V: 7.50 kW
Switching capacity AC-3 500 V: 7.50 kW
Switching capacity AC-3 690 V: 11.00 kW
Enclosure material: Stainless steel 1.4404
Handle colour: Yellow shroud, red handle
Detailed number of poles: 3-pole
Please select products you want to compare Compare
Ex Safety switches Series 8150/5-V37 R. STAHL

Safety switches Series 8150/5-V37

Art. No.: 222692
Product Type: 8150/5-V37-305-51-1010-K
max. ambient temperature: +45 °C
min. ambient temperature: -40 °C
Frequency range: 50 - 60 Hz
AC rated operational voltage: 690 V
Rated operational current: 40 A
Certificates: ATEX (PTB), IECEx (PTB), India (PESO), China (NEPSI)
Switching capacity AC-3 230 V: 11.00 kW
Switching capacity AC-3 400 V: 22.00 kW
Switching capacity AC-3 440 V: 22.00 kW
Switching capacity AC-3 500 V: 22.00 kW
Switching capacity AC-3 690 V: 37.00 kW
Enclosure material: Stainless steel 1.4404
Handle colour: Yellow shroud, red handle
Detailed number of poles: 3-pole
Please select products you want to compare Compare
Ex Safety switches Series 8150/5-V37 R. STAHL

Safety switches Series 8150/5-V37

Art. No.: 214173
Product Type: 8150/5-V37-305-51-0010-K
max. ambient temperature: +45 °C
min. ambient temperature: -40 °C
Frequency range: 50 - 60 Hz
AC rated operational voltage: 690 V
Rated operational current: 40 A
Certificates: ATEX (PTB), IECEx (PTB), India (PESO), China (NEPSI)
Switching capacity AC-3 230 V: 11.00 kW
Switching capacity AC-3 400 V: 22.00 kW
Switching capacity AC-3 440 V: 22.00 kW
Switching capacity AC-3 500 V: 22.00 kW
Switching capacity AC-3 690 V: 37.00 kW
Enclosure material: Stainless steel 1.4404
Handle colour: Black shroud and handle
Detailed number of poles: 3-pole
Please select products you want to compare Compare
Ex Safety switches Series 8150/5-V37 R. STAHL

Safety switches Series 8150/5-V37

Art. No.: 214174
Product Type: 8150/5-V37-306-51-0010-K
min. ambient temperature: -40 °C
max. ambient temperature: +42 °C
Frequency range: 50 - 60 Hz
Rated operational current: 63 A
AC rated operational voltage: 690 V
Certificates: ATEX (PTB), IECEx (PTB), India (PESO), China (NEPSI)
Switching capacity AC-3 230 V: 18.50 - 22.00 kW
Switching capacity AC-3 400 V: 30.00 - 45.00 kW
Switching capacity AC-3 440 V: 37.00 - 45.00 kW
Switching capacity AC-3 500 V: 37.00 - 55.00 kW
Switching capacity AC-3 690 V: 55.00 - -- kW
Enclosure material: Stainless steel 1.4404
Handle colour: Black shroud and handle
Detailed number of poles: 3-pole
Please select products you want to compare Compare

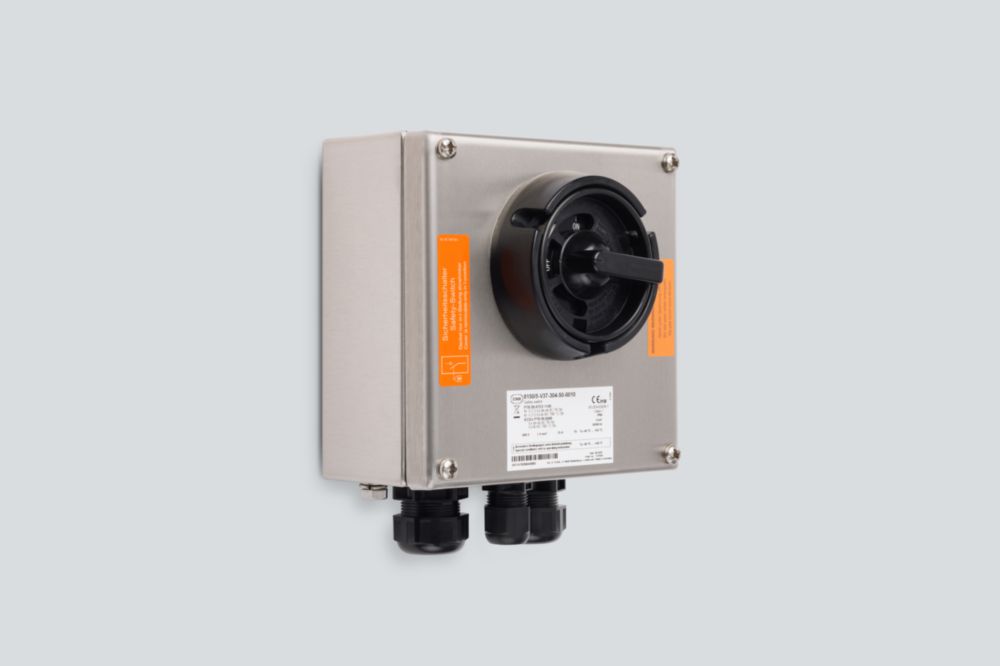

Ex Safety switches Series 8150/5-V37 R. STAHL

Safety switches Series 8150/5-V37

Art. No.: 214172
Product Type: 8150/5-V37-304-50-0010
min. ambient temperature: -40 °C
max. ambient temperature: +43 °C
Frequency range: 50 - 60 Hz
AC rated operational voltage: 690 V
Rated operational current: 25 A
Certificates: ATEX (PTB), IECEx (PTB), India (PESO), China (NEPSI)
Switching capacity AC-3 230 V: 5.50 kW
Switching capacity AC-3 400 V: 11.00 kW
Switching capacity AC-3 440 V: 11.00 kW
Switching capacity AC-3 500 V: 15.00 kW
Switching capacity AC-23 690 V: 22.00 kW
Enclosure material: Stainless steel 1.4404
Handle colour: Black shroud and handle
Detailed number of poles: 3-pole
Please select products you want to compare Compare
Ex Safety switches Series 8150/5-V37 R. STAHL

Safety switches Series 8150/5-V37

Art. No.: 201468
Product Type: 8150/5-V37-308-51-0010-K
min. ambient temperature: -40 °C
max. ambient temperature: +44 °C
Frequency range: 50 - 60 Hz
AC rated operational voltage: 690 V
Rated operational current: 125 A
Certificates: ATEX (PTB), IECEx (PTB), India (PESO), China (NEPSI)
Switching capacity AC-3 230 V: 37.00 - 45.00 kW
Switching capacity AC-3 400 V: 55.00 - 90.00 kW
Switching capacity AC-3 440 V: 75.00 - 90.00 kW
Switching capacity AC-3 500 V: 75.00 - -- kW
Switching capacity AC-3 690 V: 110.00 - -- kW
Enclosure material: Stainless steel 1.4404
Handle colour: Black shroud and handle
Detailed number of poles: 3-pole
