Plugs 16 A Series 8570/12
Art. No.:
272883
Product Type:
8570/12-509-S-XX-X-XX-XXX
Product description:
16 A plug
min. ambient temperature:
-50 °C
max. ambient temperature:
+35 °C
Rated operational current:
16 A
Certificates:
ATEX (PTB), Brazil (ULB), China (CQST), IECEx (PTB), Korea (KGS), Taiwan (ITRI)
Frequency range:
50 / 60 Hz
Silicone-free:
No
Colour code:
blue
Coding (clock hour position):
9
Detailed number of poles:
3 P + N + PE
Country of origin:
DE
On request

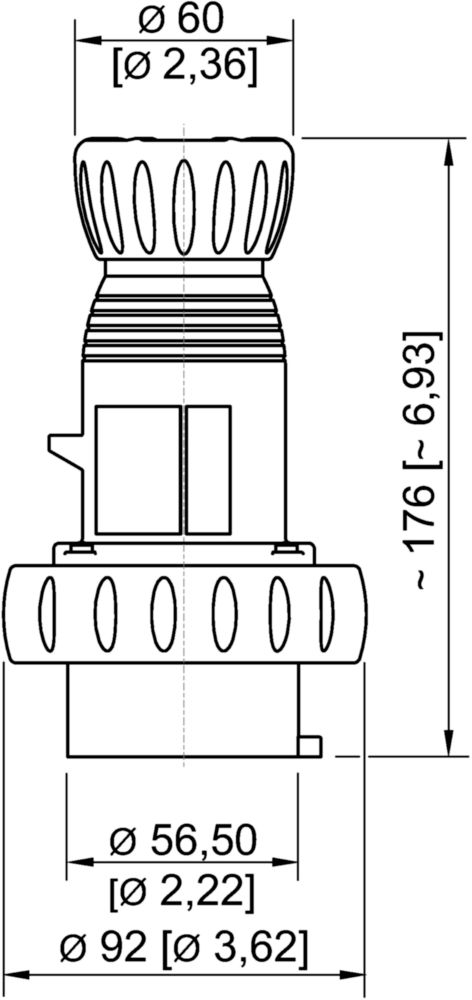

Technical data
General
| MY R. STAHL | 8570P |
| Product variant | Plug |
| Product Type | 8570/12-509-S-XX-X-XX-XXX |
| Highlights | Different voltage ranges according to EN 60309No effect of torsional forces from the conductor on the sealLarge temperature range of useHigh mechanical impact and shock resistancePerfect protection against penetration of liquids and dusts3D data for download on the websiteVariants for use in USA/Canada available on request |
| Functional Description |
The R. STAHL 8570/12 series SolConeX plugs for Zone 1/21 are 3-, 4- or 5-pole versions up to 16 A. They are easy and simple to plug and unplug thanks to floating pins. The pivoting strain relief makes it easier to install the cable. Self-cleaning and corrosion-free plug pins made from high-quality materials ensure optimum electrical contact. Further product options available: - Further voltage ranges according to EN 60309 - Silicone-free versions |
| Description | 8570/12-509-S-XX-X-XX-XXX 5-pole plug, 120/208 to 144/250 V AC, 50/60 Hz, 16 A |
Explosion Protection
Electrical Data
Ambient Conditions
Mechanical Data
Mounting / Installation
Components
Commercial data
Downloads
