Series 8581/22 100 A plug

R. STAHL Series 8581/22 plugs for Class I, Div. 2, Groups A, B, C and D and Zone 1/21 are 4- or 5-pole 100 A plugs. The floating pins allow them to be inserted and removed simply and easily. The pivoting strain relief makes it easier to install the cable. Self-cleaning and corrosion-free plug pins made from high-quality materials ensure optimum electrical contact.

  • Degree of protection IP66, extreme temperature range of 30 to +40 °C
  • No impact of torsional forces from the wire on the seal
  • Wear-free contacts even in a corrosive atmosphere

Filter product lines

hide
Certificates
Product Description
Rated operational voltage
Rated operational current
Frequency range
Min. ambient temperature
Max. ambient temperature
Silicone-free
Colour code
Coding (clock hour position)​
Detailed number of poles

6 Products

Please select products you want to compare Compare

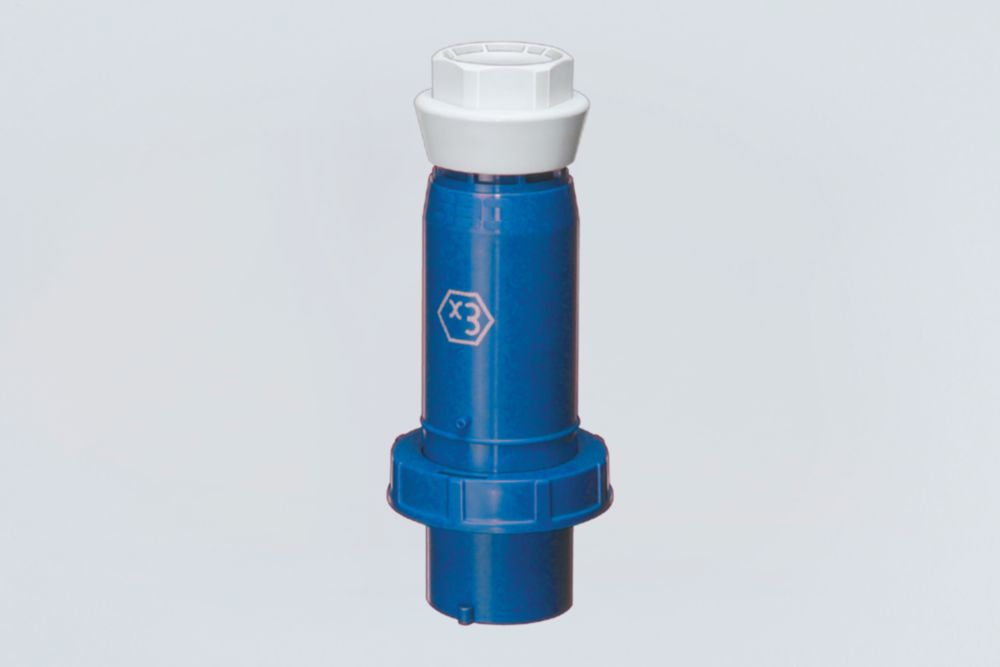

Ex Plugs 100 A Series 8581/22 R. STAHL

Series 8581/22 100 A plug

Art. No.: 153655
Product Type: 8581/22-409
min. ambient temperature: -30 °C
max. ambient temperature: +45 °C
Rated operational current: 100 A
Product description: 100 A plug Plug
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), China (CQST), Korea (KGS), Brazil (ULB)
Rated operational voltage: 250 V AC
Frequency range: 50 / 60 Hz
Silicone-free: Yes
Colour code: blue
Coding (clock hour position): 9
Detailed number of poles: 3-pole, 4 conductors
Please select products you want to compare Compare

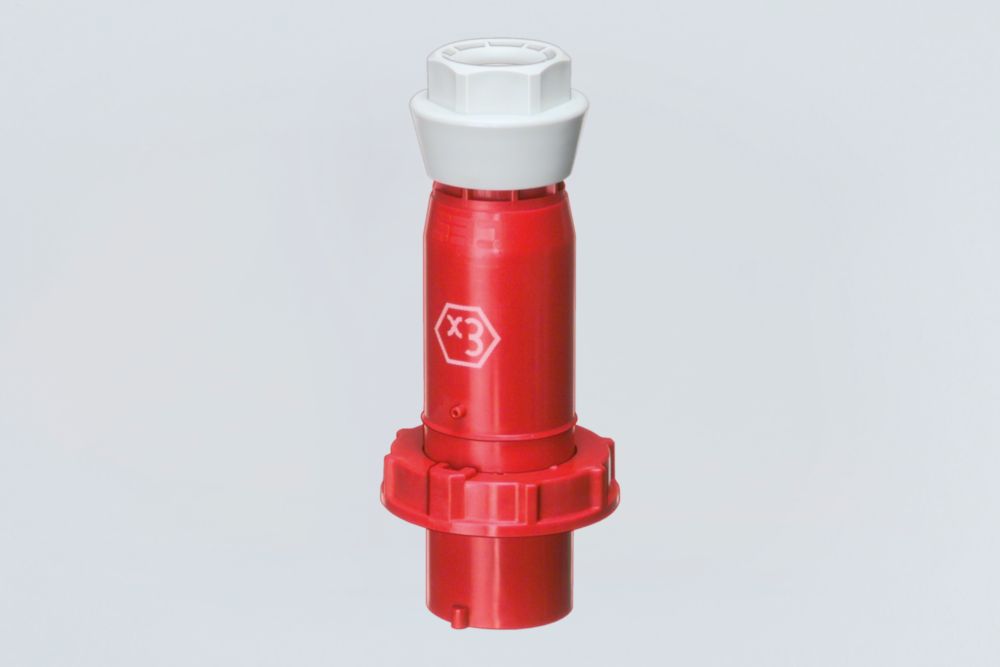

Ex Plugs 100 A Series 8581/22 R. STAHL

Series 8581/22 100 A plug

Art. No.: 153652
Product Type: 8581/22-407
min. ambient temperature: -30 °C
max. ambient temperature: +45 °C
Rated operational current: 100 A
Product description: 100 A plug Plug
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), China (CQST), Korea (KGS), Brazil (ULB)
Rated operational voltage: 480 V AC
Frequency range: 50 / 60 Hz
Silicone-free: Yes
Colour code: red
Coding (clock hour position): 7
Detailed number of poles: 3-pole, 4 conductors
Please select products you want to compare Compare

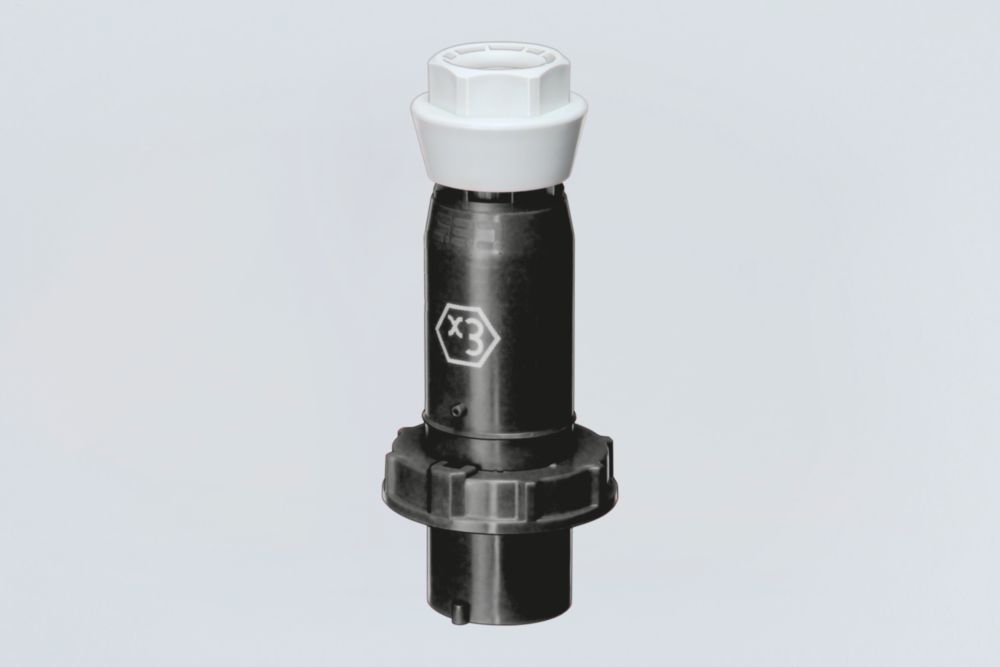

Ex Plugs 100 A Series 8581/22 R. STAHL

Series 8581/22 100 A plug

Art. No.: 153649
Product Type: 8581/22-405
min. ambient temperature: -30 °C
max. ambient temperature: +45 °C
Rated operational current: 100 A
Product description: 100 A plug Plug
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), China (CQST), Korea (KGS), Brazil (ULB)
Rated operational voltage: 600 V AC
Frequency range: 50 / 60 Hz
Silicone-free: Yes
Colour code: black
Coding (clock hour position): 5
Detailed number of poles: 3-pole, 4 conductors
Please select products you want to compare Compare
Ex Plugs 100 A Series 8581/22 R. STAHL

Series 8581/22 100 A plug

Art. No.: 153647
Product Type: 8581/22-509
min. ambient temperature: -30 °C
max. ambient temperature: +45 °C
Rated operational current: 100 A
Product description: 100 A plug Plug
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), China (CQST), Korea (KGS), Brazil (ULB)
Rated operational voltage: 208Y/120 V AC
Frequency range: 50 / 60 Hz
Silicone-free: Yes
Colour code: blue
Coding (clock hour position): 9
Detailed number of poles: 4-pole, 5 conductors
Please select products you want to compare Compare
Ex Plugs 100 A Series 8581/22 R. STAHL

Series 8581/22 100 A plug

Art. No.: 153643
Product Type: 8581/22-507
min. ambient temperature: -30 °C
max. ambient temperature: +45 °C
Rated operational current: 100 A
Product description: 100 A plug Plug
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), China (CQST), Korea (KGS), Brazil (ULB)
Rated operational voltage: 480Y/277 V AC
Frequency range: 50 / 60 Hz
Silicone-free: Yes
Colour code: red
Coding (clock hour position): 7
Detailed number of poles: 4-pole, 5 conductors
Please select products you want to compare Compare
Ex Plugs 100 A Series 8581/22 R. STAHL

Series 8581/22 100 A plug

Art. No.: 153638
Product Type: 8581/22-505
min. ambient temperature: -30 °C
max. ambient temperature: +45 °C
Rated operational current: 100 A
Product description: 100 A plug Plug
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), China (CQST), Korea (KGS), Brazil (ULB)
Rated operational voltage: 600Y/347 V AC
Frequency range: 50 / 60 Hz
Silicone-free: Yes
Colour code: black
Coding (clock hour position): 5
Detailed number of poles: 4-pole, 5 conductors
