100 A wall-mounting socket - 209877

Series 8581/41 100 A wall-mounting sockets
Art. No.: 209877

Product Type: 8581/41-407
Product description: 100 A wall-mounting socket
min. ambient temperature: -30 °C
max. ambient temperature: +45 °C
Entry 2 type: 8290/3-M63
Rated operational current: 100 A
Entry 1 type: can be ordered as an accessory
Certificates: ATEX (PTB), Brazil (ULB), Canada (FM), China (CQST), IECEx (PTB), Korea (KGS), USA (FM)
Rated operational voltage: 480 V AC
Auxiliary contacts: 2 (1 NO + 1 NC)
Frequency range: 50 / 60 Hz
Silicone-free: No
Colour code: red
Coding (clock hour position): 7
Detailed number of poles: 3-pole, 4 conductors
Country of origin: DE
More information

Technical data

General

MY R. STAHL 8581B
Product Type 8581/41-407
Highlights Reliable load disconnect switch with easily visible, lockable handle and display of the switch position
An integrated auxiliary contact for control and signalling purposes, can be optionally enhanced using pluggable Ex e or Ex i auxiliary contacts that are easily retrofittable
Large temperature range of use
High mechanical impact and shock resistance
Perfect protection against penetration of liquids and dusts
3D data for download on the website
Functional Description The R. STAHL Series 8581/41 sockets for Class I, Div. 2, Groups A, B, C and D and Zone 1/21 in 4- and 5-pole versions have full AC-3 switching capacity up to 100 A. The high degree of protection (IP66) ensures maximum protection against the ingress of dust and water in any application situation. Self-cleaning lamellar contacts provide optimum contact and the plugs can be inserted and removed in the zero position quickly and easily. The load disconnect switch, with a mechanical locking device and a handle that can be locked in the ON (0) and OFF (I) position, is an additional safety feature.

Explosion Protection

Electrical Data

Device Specific Data

Ambient Conditions

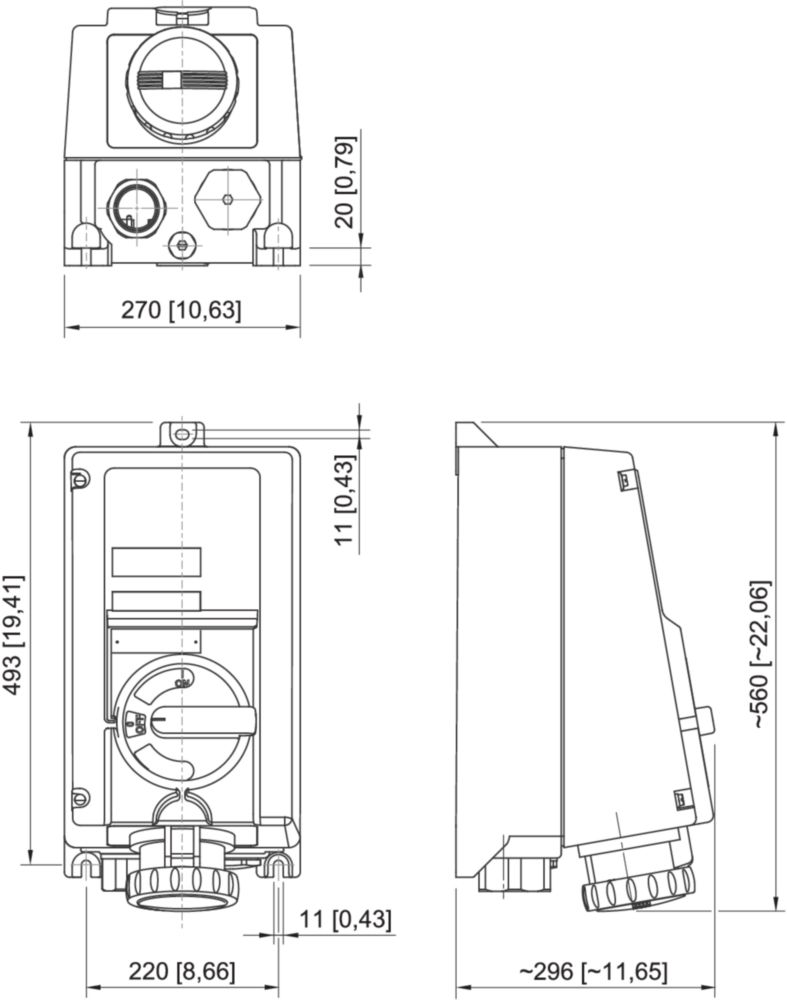

Mechanical Data

Mounting / Installation

Components

Commercial data
