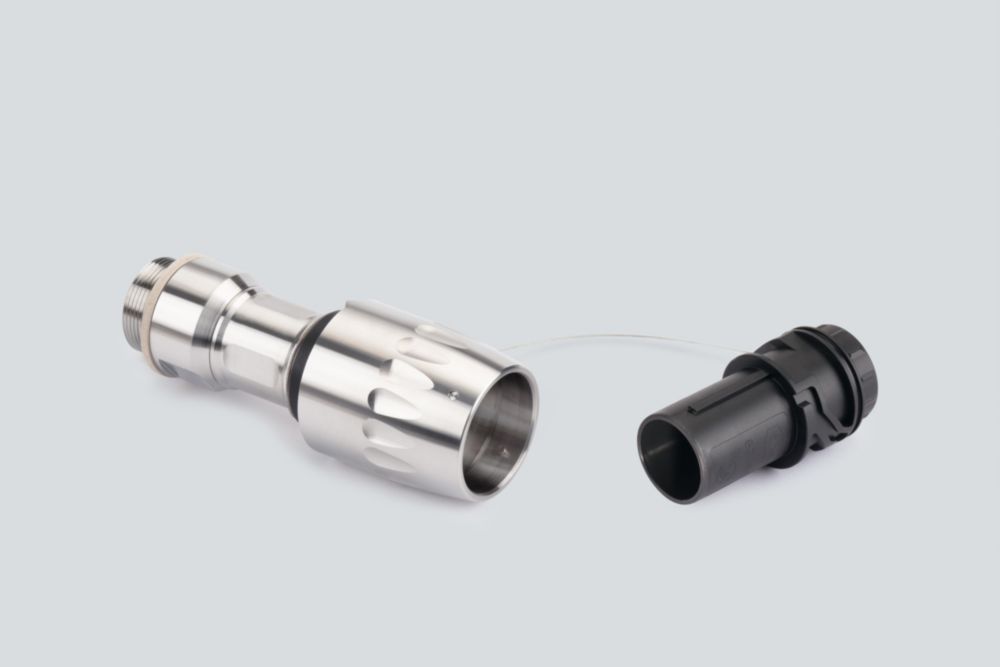

NEC/CE Code Series 8595 miniCON Ex plug connector
Art. No.:
324646
Product Type:
8595/1-PS2-S-P05-00E
Product description:
miniCON plug connector
min. ambient temperature:
-60 °C
max. ambient temperature:
+75 °C
Version:
Ex e device plug
No. of poles:
7 P + PE / 8 P
Enclosure material:
Stainless steel 1.4404
Contact type:
Pin contact
Connection cross-section:
0.50 mm²
Connection thread:
M32 x 1.5
Country of origin:
DE
On request
Technical data
General
| MY R. STAHL | 8595H |
| Product Type | 8595/1-PS2-S-P05-00E |
| Product description | miniCON plug connector |
| Highlights | Simple handling using hot swap technologyVersatile application possibilities thanks to modular structureMost extreme operating conditions in hazardous areasReliable data and signal connections or power suppliesSimple connection and disconnection thanks to one-handed operation |
| Functional Description | R. STAHL's Series 8595/1 explosion-protected miniCON plug connectors with up to eight poles keep you safely connected. The high-quality stainless steel plug connectors have impressed many customers with their reliability in a diverse range of applications. Their hot swap disconnecting capacity means that intrinsically safe signal supplies and power supplies up to 500 V/8 A can be connected and disconnected reliably and safely without the need for a hot work permit or other hot work authorisation.The miniCON connectors designed for conductor cross-sections of 24 AWG to 14 AWG (0.25 mm² to 2.5 mm²) are available for directly connecting electrical lines or for device installation in the device plug and flange socket types of construction. The new plug connectors for hazardous areas in Class I, II, Division 2 and in Zones 1 and 21 stand out from the competition thanks to their modular structure and logically arranged components, which enable quick, easy mounting. Our patented single-handed operation means that matching plug connectors, which can be defined by the installer using internal coding for up to three applications, can be connected in no time. If required, nickel-plated brass versions are available. |
| Description |
Enclosure material: Stainless steel 1.4404 Contact type: Pin contact Connection cross-section: 0.50 mm² Number of poles: 7 P + PE/8 P Connection type: Crimping |
Explosion Protection
Electrical Data
Device Specific Data
Ambient Conditions
Mechanical Data
Mounting / Installation
Components
Commercial data
Downloads
| Description | Document Type | Language | |
|---|---|---|---|
| miniCON plug connector - 8595/1-PS2-S-P05-00E - 324646 - en-US | Single Data Sheet |
  |
|
| NEC®/CE Code miniCON Ex plug connector - 8595 - de-DE | Product Overview |
 |
|
| NEC®/CE Code miniCON Ex plug connector - 8595 - en-GB | Product Overview |
 |
|
| NEC®/CE Code miniCON Ex plug connector - 8595 - fr-FR | Product Overview |
 |
|
| NEC®/CE Code miniCON Ex plug connector - 8595 - es-ES | Product Overview |
 |
|
| NEC®/CE Code miniCON Ex plug connector - 8595 - en-US | Product Overview |
|
|
| miniCON plug connector - 8595/1-PS2-S-P05-00E - 324646 - de-DE | Single Data Sheet |
|
|
| miniCON plug connector - 8595/1-PS2-S-P05-00E - 324646 - en-GB | Single Data Sheet |
|
|
| miniCON plug connector - 8595/1-PS2-S-P05-00E - 324646 - fr-FR | Single Data Sheet |
|
|
| miniCON plug connector - 8595/1-PS2-S-P05-00E - 324646 - es-ES | Single Data Sheet |
|
