Socket for CPU & power module Zone 2 Series 9496
Art. No.:
246871
Product Type:
9496/35-03-00
Product description:
Remote I/O IS1+ Socket f. CPU and power module for Zone 2
Zone Filter:
Zone 2 | 3 G | Gc
Ex interface zone:
2
Certificates:
ATEX (PTB), Brazil (ULB), Canada (FM), China (NEPSI), IECEx (PTB), India (PESO), Korea (KTL), USA (FM)
Ship approval:
ABS, BVIS, EU RO MR (DNV), KR, LR
Number of slots:
3
Protocols:
EtherNet/IP, Modbus TCP, PROFIBUS DP V1 PNO red. HART, PROFIBUS DP V1 STAHL red. HART, PROFINET
Nominal voltage:
24.00 V
Country of origin:
DE
Available in stock
Technical data
General
| MY R. STAHL | 9496A |
| Product variant | Series 9496/35 – socket for CPU & power modules |
| Product Type | 9496/35-03-00 |
| Product description | Remote I/O IS1+ Socket f. CPU and power module for Zone 2 |
| Highlights |
For mounting 9442 IS1+ CPU modules and 9445 power modulesSelector switch for configuring the communication protocol and the station addressRedundancy for CPU or power moduleMounting on DIN rail or on mounting plate itselfSpecial aluminium profile provides increased stability and heat dissipationExtended ambient temperature range from -40 to +75 °C when installed on mounting plateCompatible with 9494 IS1+ BusRail |
| Functional Description | The 9496 socket is connected to the 9494 IS1+ BusRail and has three slots for the 9442 CPU modules and 9445 power modules. Alternatively, the CPU or power modules can be designed to be redundant. The socket and the BusRail are used to connect the I/O modules to the high-speed data bus and the Ex i power supply. The bus protocol and RS485 address are defined using a rotary switch. The socket is mounted on a DIN rail and can be screwed onto a metal mounting plate for increased ambient loads (vibrations, temperatures up to +75 °C). |
| Description |

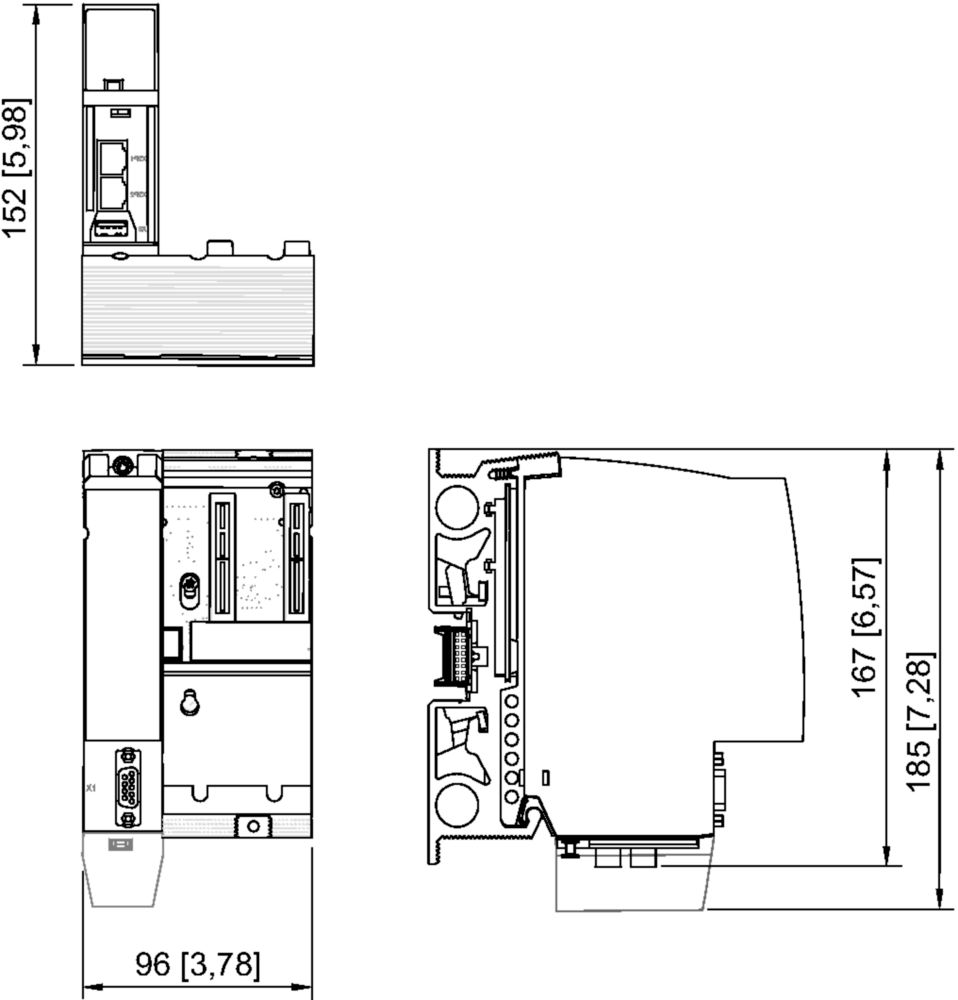

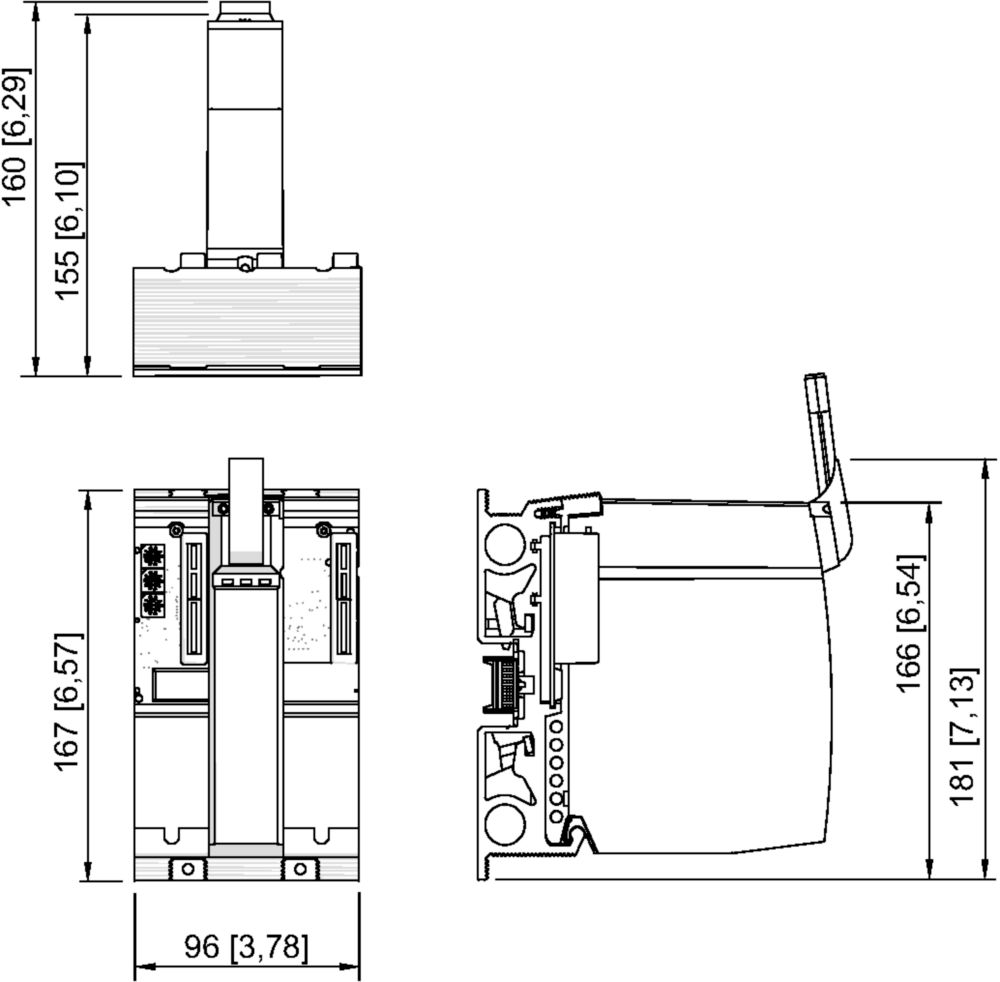

Zone 2 3 slots for mounting 1 x CPU and 2 x power module or 2 x CPU and 1 x power module Dimensions approx. L = 167 mm, W = 96 mm, H = 50.6 mm |
Explosion Protection
Electrical Data
Auxiliary power
Galvanic isolation
Ambient Conditions
Mechanical Data
Mounting / Installation
Commercial data
Downloads
| Description | Document Type | Language | |
|---|---|---|---|
| Remote I/O IS1+ Socket f. CPU and power module for Zone 2 - 9496/35-03-00 - 246871 - de-DE | Single Data Sheet |
 |
|
| Remote I/O IS1+ Socket f. CPU and power module for Zone 2 - 9496/35-03-00 - 246871 - en-GB | Single Data Sheet |
 |
|
| Socket for CPU & power modules Zone 2 - 9496 - de-DE | Product Overview |
|
|
| Socket for CPU & power modules Zone 2 - 9496 - en-GB | Product Overview |
|
|
| Remote I/O IS1+ Socket f. CPU and power module for Zone 2 - 9496/35-03-00 - 246871 - fr-FR | Single Data Sheet |
 |
|
| Remote I/O IS1+ Socket f. CPU and power module for Zone 2 - 9496/35-03-00 - 246871 - es-ES | Single Data Sheet |
 |
