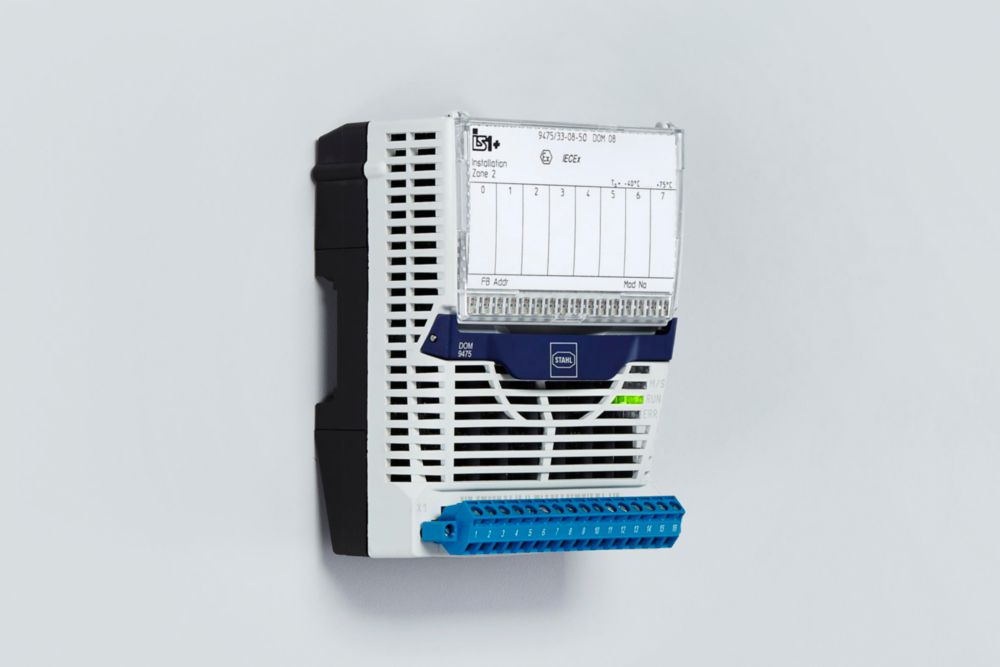

Digital output module, 8-channel version for Zone 2 Series 9475/33-08-xx
Art. No.:
210658
Product Type:
9475/33-08-60
Product description:
Remote I/O IS1+ Digital output module for Zone 2 Ex i
Max. power consumption:
5.80 W
Class 1 Division / Zone:
Division 2 / Zone 2
Zone Filter:
Zone 2 | 3 G | Gc
Ex interface zone:
0, 1, 2, 20, 21, 22
Certificates:
ATEX (DEK), Brazil (ULB), Canada (FM), China (NEPSI), IECEx (DEK), India (PESO), Korea (KTL), USA (FM)
Installation:
Zone 2 and safe areas
Number of channels:
8 Ex i outputs
Ex i output rated operation:
17.5 V/20 mA
Country of origin:
DE
Available in stock
Technical data
General
| MY R. STAHL | 9475D |
| Product Type | 9475/33-08-60 |
| Product description | Remote I/O IS1+ Digital output module for Zone 2 Ex i |
| Highlights | 8 channels for Ex i solenoid valves up to 30 mAEx ia outputs with line fault monitoringModules in Zone 2 can be replaced without having to disconnect the power supply (i.e. hot-swapped) |
| Functional Description | The 9475/33-08 digital output modules for Zone 2 have eight channels for controlling Ex i solenoid valves or indicator lamps. All outputs are short-circuit proof, galvanically separated from the system and individually monitored to check for wire breakage/short-circuiting. |
Explosion Protection
Safety Data
Electrical Data
Auxiliary power
Galvanic isolation
Output
Device Specific Data
Diagnostics
Ambient Conditions
Mechanical Data
Mounting / Installation
Commercial data
Downloads
| Description | Document Type | Language | |
|---|---|---|---|
| Remote I/O IS1+ Digital output module for Zone 2 Ex i - 9475/33-08-60 - 210658 - en-US | Single Data Sheet |
  |
|
| Remote I/O IS1+ Digital output module for Zone 2 Ex i - 9475/33-08-60 - 210658 - de-DE | Single Data Sheet |
 |
|
| Remote I/O IS1+ Digital output module for Zone 2 Ex i - 9475/33-08-60 - 210658 - en-GB | Single Data Sheet |
 |
|
| Digital output module, 8-channel version - 9475/33-08 - fr-FR | Product Overview |
 |
|
| Digital output module, 8-channel version - 9475/33-08 - es-ES | Product Overview |
 |
|
| Digital output module, 8-channel version - 9475/33-08 - de-DE | Product Overview |
|
|
| Digital output module, 8-channel version - 9475/33-08 - en-GB | Product Overview |
|
|
| Digital output module, 8-channel version - 9475/33-08 - zh-CN | Product Overview |
 |
|
| Digital output module, 8-channel version - 9475/33-08 - en-US | Product Overview |
|
|
| Remote I/O IS1+ Digital output module for Zone 2 Ex i - 9475/33-08-60 - 210658 - fr-FR | Single Data Sheet |
|
|
| Remote I/O IS1+ Digital output module for Zone 2 Ex i - 9475/33-08-60 - 210658 - es-ES | Single Data Sheet |
|
