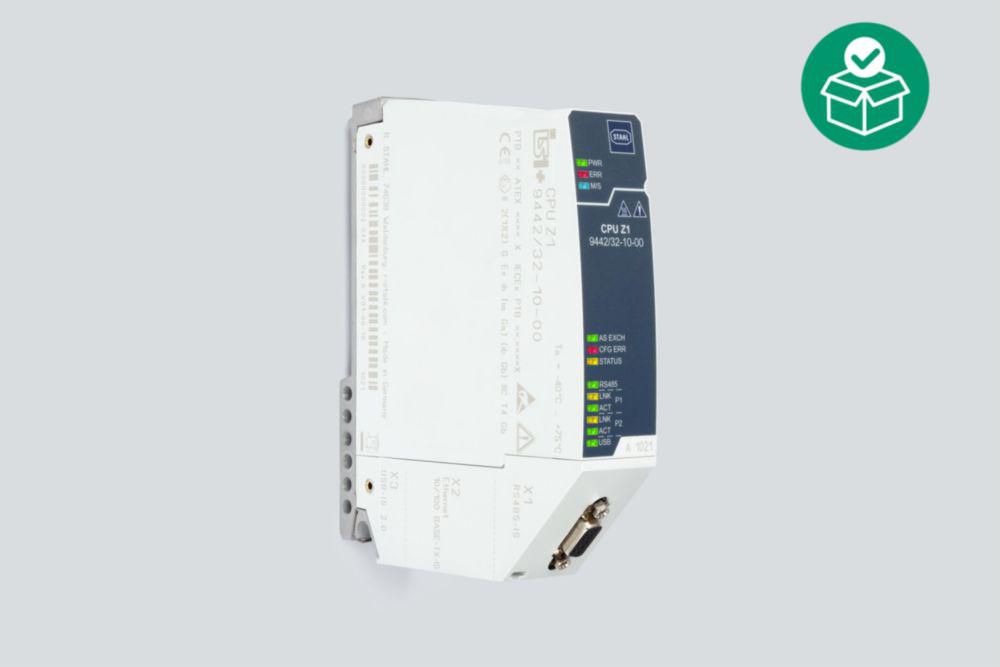

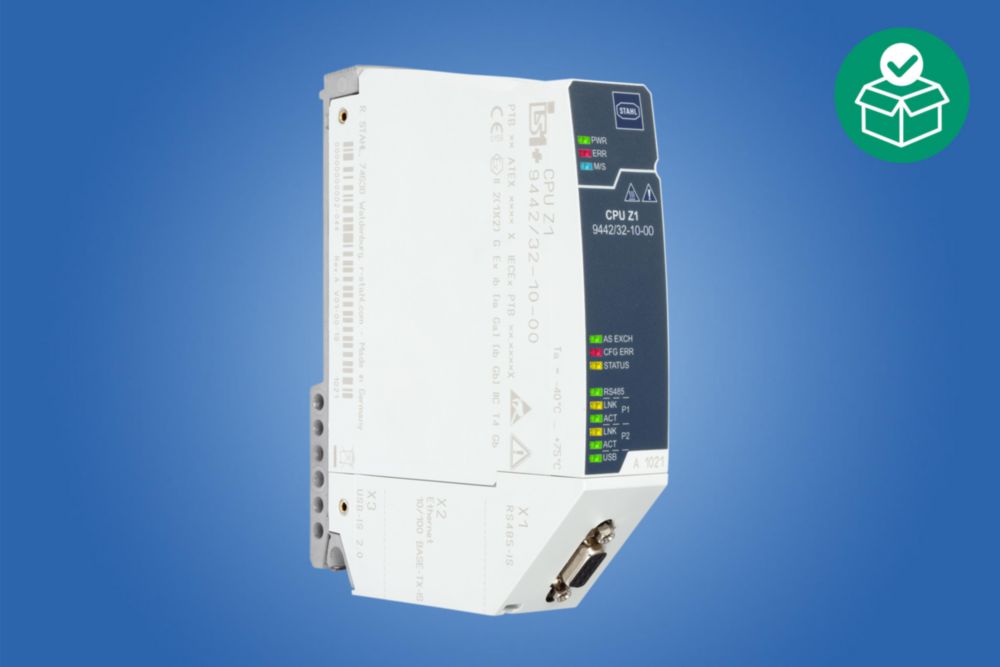

The 9442/32 CPU module functions as a gateway between the IS1+ Remote I/O system and the automation system. All supported communication protocols are in the CPU module and can be configured by the user. In addition to the process values, other information such as diagnostics, parameterisation and configuration is transmitted via the CPU module. The 9496 socket and the 9494 BusRail are used for communicating with the I/O modules. Integration in control systems and plant asset management tools is based on standards such as GSD, EDS, web servers and FDT/DTM.
- Supports PROFIBUS DP, PROFINET, Modbus TCP+RTU and EtherNet/IPTM; incl. HART transmission and redundancy
- RS485-IS (max. 1.5 Mbps) and
- Ethernet 100BASE-TX (max. 100 Mbps) interfaces
- Extensive diagnostics based on NE 107
- Supports FDT/DTM, OPC UA and web servers for integration in asset management systems
- Extended ambient temperature range from -40 to +75 °C
