Control boxes made of polyester resin Series 8146

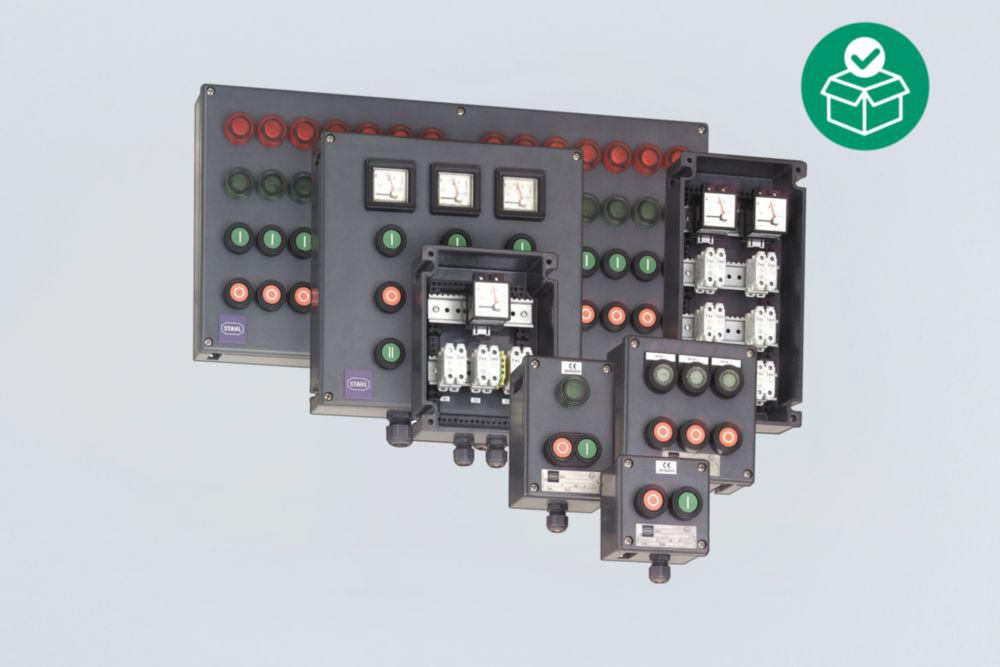

R. STAHL Series 8146 control boxes are available in eight basic sizes and various enclosure heights; they can be combined to make larger units. They are made of high-quality glass fibre reinforced polyester resin. We equip these with various components according to customer requirements, whereby the following optional accessories are available: Flanges, cover hinges or cable glands made of metal.

  • Practical Ex e control boxes made of glass fibre reinforced polyester resin
  • Can be equipped as required with control devices, indicator lamps, illuminated pushbuttons, control switches, ammeters and voltmeters
  • Optional: Flanges, cover hinges, flange enclosures, brass plates, cable glands made of metal

Filter product lines

hide
Certificates
Min. ambient temperature
Max. ambient temperature
Enclosure material
Enclosure material 2
Silicone-free
Wall thickness
Cover thickness
Width
Height
Depth
Enclosure colour

47 Products

Please select products you want to compare Compare
Ex Control Stations Made of Polyester Resin Series 8146 | Art. No. 257033 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 257033
Product Type: 8146/5041+ 8187
max. ambient temperature: +60 °C
min. ambient temperature: -40 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), India (PESO), Korea (KGS), China (NEPSI), Taiwan (ITRI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: No
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm
Width: 170 mm
Height: 112.500 mm
Depth: 91 mm
Please select products you want to compare Compare

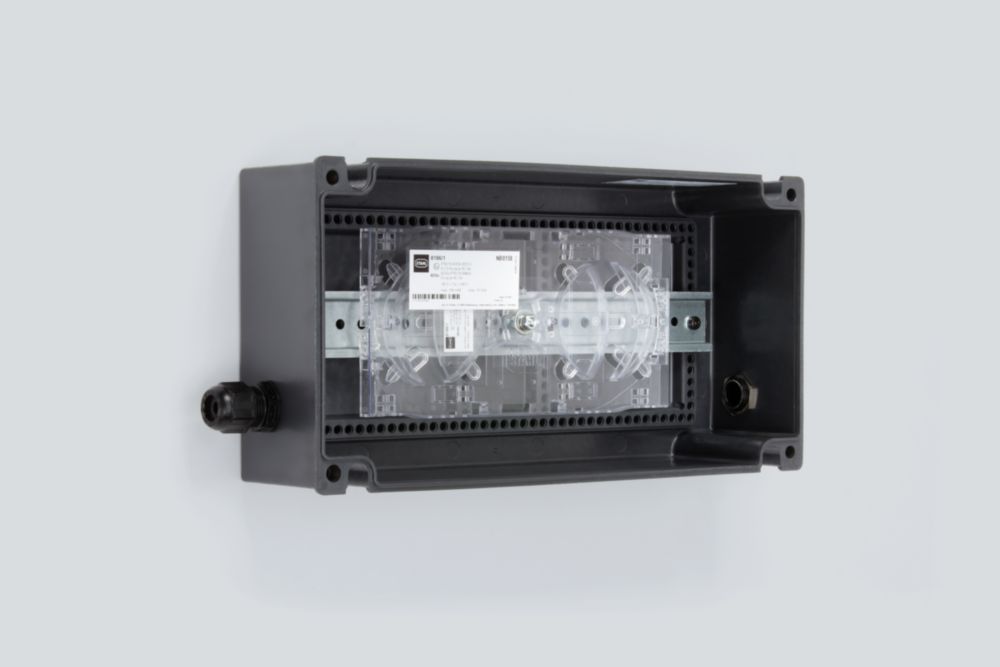

Ex Control Stations Made of Polyester Resin Series 8146 | Art. No. 257034 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 257034
Product Type: 8146/5071+ 8186
max. ambient temperature: +60 °C
min. ambient temperature: -40 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), India (PESO), Korea (KGS), China (NEPSI), Taiwan (ITRI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: No
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm
Width: 340.500 mm
Height: 170 mm
Depth: 91 mm
Please select products you want to compare Compare
Ex Control boxes made of polyester resin Series 8146 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 137137
Product Type: 8146/5
max. ambient temperature: +55 °C
min. ambient temperature: -60 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), USA (UL), Canada (UL), India (PESO), Korea (KGS), Brazil (ULB), China (NEPSI), Taiwan (ITRI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Please select products you want to compare Compare
Ex Control boxes made of polyester resin Series 8146 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 225822
Product Type: 8146/5241
max. ambient temperature: +40 °C
min. ambient temperature: -20 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), India (PESO), Korea (KGS), China (NEPSI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: Yes
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm
Width: 227 mm
Height: 112.500 mm
Depth: 91 mm
Please select products you want to compare Compare
Ex Control boxes made of polyester resin Series 8146 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 225821
Product Type: 8146/5086
max. ambient temperature: +40 °C
min. ambient temperature: -20 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), India (PESO), Korea (KGS), China (NEPSI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: Yes
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm
Width: 340.500 mm
Height: 340.500 mm
Depth: 230 mm
Please select products you want to compare Compare
Ex Control boxes made of polyester resin Series 8146 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 225820
Product Type: 8146/5095
max. ambient temperature: +40 °C
min. ambient temperature: -20 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), India (PESO), Korea (KGS), China (NEPSI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: Yes
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm
Width: 681.500 mm
Height: 340.500 mm
Depth: 190 mm
Please select products you want to compare Compare
Ex Control boxes made of polyester resin Series 8146 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 225818
Product Type: 8146/5075
max. ambient temperature: +40 °C
min. ambient temperature: -20 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), India (PESO), Korea (KGS), China (NEPSI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: Yes
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm
Width: 340.500 mm
Height: 170 mm
Depth: 190 mm
Please select products you want to compare Compare
Ex Control boxes made of polyester resin Series 8146 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 225817
Product Type: 8146/5093
max. ambient temperature: +40 °C
min. ambient temperature: -20 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), India (PESO), Korea (KGS), China (NEPSI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: Yes
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm
Width: 681.500 mm
Height: 340.500 mm
Depth: 150 mm
Please select products you want to compare Compare
Ex Control boxes made of polyester resin Series 8146 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 225816
Product Type: 8146/5083
max. ambient temperature: +40 °C
min. ambient temperature: -20 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), India (PESO), Korea (KGS), China (NEPSI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: Yes
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm
Width: 340.500 mm
Height: 340.500 mm
Depth: 150 mm
Please select products you want to compare Compare
Ex Control boxes made of polyester resin Series 8146 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 225815
Product Type: 8146/5S73
max. ambient temperature: +40 °C
min. ambient temperature: -20 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), India (PESO), Korea (KGS), China (NEPSI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: Yes
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm
Width: 340.500 mm
Height: 170 mm
Depth: 150 mm
Please select products you want to compare Compare
Ex Control boxes made of polyester resin Series 8146 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 225814
Product Type: 8146/5073
max. ambient temperature: +40 °C
min. ambient temperature: -20 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), India (PESO), Korea (KGS), China (NEPSI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: Yes
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm
Width: 340.500 mm
Height: 170 mm
Depth: 150 mm
Please select products you want to compare Compare
Ex Control boxes made of polyester resin Series 8146 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 225813
Product Type: 8146/5031
max. ambient temperature: +40 °C
min. ambient temperature: -20 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), USA (UL), Canada (UL), India (PESO), Korea (KGS), China (NEPSI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: Yes
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm
Width: 112.500 mm
Height: 112.500 mm
Depth: 91 mm
Please select products you want to compare Compare
Ex Control boxes made of polyester resin Series 8146 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 225812
Product Type: 8146/5092
max. ambient temperature: +40 °C
min. ambient temperature: -20 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), India (PESO), Korea (KGS), China (NEPSI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: Yes
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm
Width: 681.500 mm
Height: 340.500 mm
Depth: 131 mm
Please select products you want to compare Compare
Ex Control boxes made of polyester resin Series 8146 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 225811
Product Type: 8146/5082
max. ambient temperature: +40 °C
min. ambient temperature: -20 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), India (PESO), Korea (KGS), China (NEPSI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: Yes
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm
Width: 340.500 mm
Height: 340.500 mm
Depth: 131 mm
Please select products you want to compare Compare
Ex Control boxes made of polyester resin Series 8146 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 225810
Product Type: 8146/5072
max. ambient temperature: +40 °C
min. ambient temperature: -20 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), India (PESO), Korea (KGS), China (NEPSI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: Yes
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm
Width: 340.500 mm
Height: 170 mm
Depth: 131 mm
Please select products you want to compare Compare
Ex Control boxes made of polyester resin Series 8146 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 225809
Product Type: 8146/5062
max. ambient temperature: +40 °C
min. ambient temperature: -20 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), India (PESO), Korea (KGS), China (NEPSI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: Yes
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm
Width: 227 mm
Height: 170 mm
Depth: 131 mm
Please select products you want to compare Compare
Ex Control boxes made of polyester resin Series 8146 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 225808
Product Type: 8146/5052
max. ambient temperature: +40 °C
min. ambient temperature: -20 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), India (PESO), Korea (KGS), China (NEPSI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: Yes
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm
Width: 170 mm
Height: 170 mm
Depth: 131 mm
Please select products you want to compare Compare
Ex Control boxes made of polyester resin Series 8146 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 225807
Product Type: 8146/5091
max. ambient temperature: +40 °C
min. ambient temperature: -20 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), India (PESO), Korea (KGS), China (NEPSI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: Yes
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm
Width: 681.500 mm
Height: 340.500 mm
Depth: 91 mm
Please select products you want to compare Compare
Ex Control boxes made of polyester resin Series 8146 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 225806
Product Type: 8146/5081
max. ambient temperature: +40 °C
min. ambient temperature: -20 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), India (PESO), Korea (KGS), China (NEPSI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: Yes
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm
Width: 340.500 mm
Height: 340.500 mm
Depth: 91 mm
Please select products you want to compare Compare
Ex Control boxes made of polyester resin Series 8146 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 225805
Product Type: 8146/5S71
max. ambient temperature: +40 °C
min. ambient temperature: -20 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), India (PESO), Korea (KGS), China (NEPSI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: Yes
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm
Width: 340.500 mm
Height: 170 mm
Depth: 91 mm
Please select products you want to compare Compare
Ex Control boxes made of polyester resin Series 8146 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 225804
Product Type: 8146/5071
max. ambient temperature: +40 °C
min. ambient temperature: -20 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), India (PESO), Korea (KGS), China (NEPSI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: Yes
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm
Width: 340.500 mm
Height: 170 mm
Depth: 91 mm
Please select products you want to compare Compare
Ex Control boxes made of polyester resin Series 8146 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 225803
Product Type: 8146/5061
max. ambient temperature: +40 °C
min. ambient temperature: -20 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), India (PESO), Korea (KGS), China (NEPSI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: Yes
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm
Width: 227 mm
Height: 170 mm
Depth: 91 mm
Please select products you want to compare Compare
Ex Control boxes made of polyester resin Series 8146 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 225802
Product Type: 8146/5051
max. ambient temperature: +40 °C
min. ambient temperature: -20 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), India (PESO), Korea (KGS), China (NEPSI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: Yes
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm
Width: 170 mm
Height: 170 mm
Depth: 91 mm
Please select products you want to compare Compare
Ex Control boxes made of polyester resin Series 8146 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 225206
Product Type: 8146/5041
max. ambient temperature: +40 °C
min. ambient temperature: -20 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), USA (UL), Canada (UL), India (PESO), Korea (KGS), China (NEPSI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: Yes
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm
Width: 170 mm
Height: 112.500 mm
Depth: 91 mm
Please select products you want to compare Compare
Ex Control boxes made of polyester resin Series 8146 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 136964
Product Type: 8146/5241
max. ambient temperature: +40 °C
min. ambient temperature: -60 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), India (PESO), Korea (KGS), Brazil (ULB), China (NEPSI), Taiwan (ITRI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: No
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm
Width: 227 mm
Height: 112.500 mm
Depth: 91 mm
Please select products you want to compare Compare
Ex Control boxes made of polyester resin Series 8146 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 136955
Product Type: 8146/5086
max. ambient temperature: +40 °C
min. ambient temperature: -60 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), India (PESO), Korea (KGS), Brazil (ULB), China (NEPSI), Taiwan (ITRI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: No
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm
Width: 340.500 mm
Height: 340.500 mm
Depth: 230 mm
Please select products you want to compare Compare
Ex Control boxes made of polyester resin Series 8146 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 136952
Product Type: 8146/5095
max. ambient temperature: +40 °C
min. ambient temperature: -60 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), India (PESO), Korea (KGS), Brazil (ULB), China (NEPSI), Taiwan (ITRI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: No
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm
Width: 681.500 mm
Height: 340.500 mm
Depth: 190 mm
Please select products you want to compare Compare
Ex Control boxes made of polyester resin Series 8146 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 136947
Product Type: 8146/5085
max. ambient temperature: +40 °C
min. ambient temperature: -60 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), India (PESO), Korea (KGS), Brazil (ULB), China (NEPSI), Taiwan (ITRI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: No
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm
Width: 340.500 mm
Height: 340.500 mm
Depth: 190 mm
Please select products you want to compare Compare
Ex Control boxes made of polyester resin Series 8146 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 136942
Product Type: 8146/5075
max. ambient temperature: +40 °C
min. ambient temperature: -60 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), India (PESO), Korea (KGS), Brazil (ULB), China (NEPSI), Taiwan (ITRI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: No
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm
Width: 340.500 mm
Height: 170 mm
Depth: 190 mm
Please select products you want to compare Compare
Ex Control boxes made of polyester resin Series 8146 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 136937
Product Type: 8146/5084
max. ambient temperature: +40 °C
min. ambient temperature: -60 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), India (PESO), Korea (KGS), Brazil (ULB), China (NEPSI), Taiwan (ITRI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: No
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm
Width: 340.500 mm
Height: 340.500 mm
Depth: 171 mm
Please select products you want to compare Compare
Ex Control boxes made of polyester resin Series 8146 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 136930
Product Type: 8146/5093
max. ambient temperature: +40 °C
min. ambient temperature: -60 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), India (PESO), Korea (KGS), Brazil (ULB), China (NEPSI), Taiwan (ITRI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: No
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm
Width: 681.500 mm
Height: 340.500 mm
Depth: 150 mm
Please select products you want to compare Compare
Ex Control boxes made of polyester resin Series 8146 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 136924
Product Type: 8146/5083
max. ambient temperature: +40 °C
min. ambient temperature: -60 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), India (PESO), Korea (KGS), Brazil (ULB), China (NEPSI), Taiwan (ITRI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: No
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm
Width: 340.500 mm
Height: 340.500 mm
Depth: 150 mm
Please select products you want to compare Compare
Ex Control boxes made of polyester resin Series 8146 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 136918
Product Type: 8146/5S73
max. ambient temperature: +40 °C
min. ambient temperature: -60 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), India (PESO), Korea (KGS), Brazil (ULB), China (NEPSI), Taiwan (ITRI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: No
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm
Width: 340.500 mm
Height: 170 mm
Depth: 150 mm
Please select products you want to compare Compare
Ex Control boxes made of polyester resin Series 8146 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 136911
Product Type: 8146/5073
max. ambient temperature: +40 °C
min. ambient temperature: -60 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), India (PESO), Korea (KGS), Brazil (ULB), China (NEPSI), Taiwan (ITRI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: No
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm
Width: 340.500 mm
Height: 170 mm
Depth: 150 mm
Please select products you want to compare Compare
Ex Control boxes made of polyester resin Series 8146 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 136885
Product Type: 8146/5031
max. ambient temperature: +40 °C
min. ambient temperature: -60 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), USA (UL), Canada (UL), India (PESO), Korea (KGS), Brazil (ULB), China (NEPSI), Taiwan (ITRI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: No
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm
Width: 112.500 mm
Height: 112.500 mm
Depth: 91 mm
Please select products you want to compare Compare
Ex Control boxes made of polyester resin Series 8146 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 136846
Product Type: 8146/5092
max. ambient temperature: +40 °C
min. ambient temperature: -60 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), India (PESO), Korea (KGS), Brazil (ULB), China (NEPSI), Taiwan (ITRI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: No
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm
Width: 681.500 mm
Height: 340.500 mm
Depth: 131 mm
Please select products you want to compare Compare
Ex Control boxes made of polyester resin Series 8146 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 136824
Product Type: 8146/5082
max. ambient temperature: +40 °C
min. ambient temperature: -60 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), India (PESO), Korea (KGS), Brazil (ULB), China (NEPSI), Taiwan (ITRI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: No
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm
Width: 340.500 mm
Height: 340.500 mm
Depth: 131 mm
Please select products you want to compare Compare
Ex Control boxes made of polyester resin Series 8146 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 136817
Product Type: 8146/5072
max. ambient temperature: +40 °C
min. ambient temperature: -60 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), India (PESO), Korea (KGS), Brazil (ULB), China (NEPSI), Taiwan (ITRI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: No
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm
Width: 340.500 mm
Height: 170 mm
Depth: 131 mm
Please select products you want to compare Compare
Ex Control boxes made of polyester resin Series 8146 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 136785
Product Type: 8146/5062
max. ambient temperature: +40 °C
min. ambient temperature: -60 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), India (PESO), Korea (KGS), Brazil (ULB), China (NEPSI), Taiwan (ITRI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: No
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm
Width: 227 mm
Height: 170 mm
Depth: 131 mm
Please select products you want to compare Compare
Ex Control boxes made of polyester resin Series 8146 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 136777
Product Type: 8146/5052
max. ambient temperature: +40 °C
min. ambient temperature: -60 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), India (PESO), Korea (KGS), Brazil (ULB), China (NEPSI), Taiwan (ITRI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: No
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm
Width: 170 mm
Height: 170 mm
Depth: 131 mm
Please select products you want to compare Compare
Ex Control boxes made of polyester resin Series 8146 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 136754
Product Type: 8146/5091
max. ambient temperature: +40 °C
min. ambient temperature: -60 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), India (PESO), Korea (KGS), Brazil (ULB), China (NEPSI), Taiwan (ITRI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: No
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm
Width: 681.500 mm
Height: 340.500 mm
Depth: 91 mm
Please select products you want to compare Compare
Ex Control boxes made of polyester resin Series 8146 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 136746
Product Type: 8146/5081
max. ambient temperature: +40 °C
min. ambient temperature: -60 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), India (PESO), Korea (KGS), Brazil (ULB), China (NEPSI), Taiwan (ITRI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: No
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm
Width: 340.500 mm
Height: 340.500 mm
Depth: 91 mm
Please select products you want to compare Compare
Ex Control boxes made of polyester resin Series 8146 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 136730
Product Type: 8146/5S71
max. ambient temperature: +40 °C
min. ambient temperature: -60 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), India (PESO), Korea (KGS), Brazil (ULB), China (NEPSI), Taiwan (ITRI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: No
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm
Width: 340.500 mm
Height: 170 mm
Depth: 91 mm
Please select products you want to compare Compare
Ex Control boxes made of polyester resin Series 8146 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 136723
Product Type: 8146/5071
max. ambient temperature: +40 °C
min. ambient temperature: -60 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), India (PESO), Korea (KGS), Brazil (ULB), China (NEPSI), Taiwan (ITRI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: No
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm
Width: 340.500 mm
Height: 170 mm
Depth: 91 mm
Please select products you want to compare Compare
Ex Control boxes made of polyester resin Series 8146 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 136703
Product Type: 8146/5061
max. ambient temperature: +40 °C
min. ambient temperature: -60 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), India (PESO), Korea (KGS), Brazil (ULB), China (NEPSI), Taiwan (ITRI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: No
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm
Width: 227 mm
Height: 170 mm
Depth: 91 mm
Please select products you want to compare Compare
Ex Control boxes made of polyester resin Series 8146 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 136697
Product Type: 8146/5051
max. ambient temperature: +40 °C
min. ambient temperature: -60 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), India (PESO), Korea (KGS), Brazil (ULB), China (NEPSI), Taiwan (ITRI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: No
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm
Width: 170 mm
Height: 170 mm
Depth: 91 mm
Please select products you want to compare Compare
Ex Control boxes made of polyester resin Series 8146 R. STAHL

Control boxes made of polyester resin Series 8146

Art. No.: 136678
Product Type: 8146/5041
max. ambient temperature: +40 °C
min. ambient temperature: -60 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM), USA (UL), Canada (UL), India (PESO), Korea (KGS), Brazil (ULB), China (NEPSI), Taiwan (ITRI)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: No
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm
Width: 170 mm
Height: 112.500 mm
Depth: 91 mm
