Series 8146 cable end boxes
Art. No.:
136158
Product Type:
8146/1000-C923
Product description:
Cable end box
min. ambient temperature:
-30 °C
max. ambient temperature:
+50 °C
Certificates:
ATEX (PTB), Canada / USA (UL), IECEx (PTB)
Connection cross-section:
185 - 185 mm²
Entry 1:
4 x Threaded holes
without cable entry
M75
without cable entry
M75
Type of terminals 1:
12 x M12 bolt-type terminal
1-conductor, 185 mm2
1-conductor, 185 mm2
Type of terminals PE 1:
4 x M12 bolt-type terminal
1-conductor, 185 mm², green-yellow
1-conductor, 185 mm², green-yellow
Country of origin:
DE
On request
Technical data
General
| MY R. STAHL | 8146B |
| Product Type | 8146/1000-C923 |
| Product description | Cable end box |
| Highlights | Cable end boxes for terminals up to 185 mm²Degree of protection IP66Rated operational current depending on enclosure version up to 400 A |
| Functional Description | R. STAHL Series 8146 cable end boxes comprise robust glass fibre reinforced Ex e enclosures. They are equipped with terminals up to 185 mm². These are suitable for voltages up to 690 V, the rated operational current is max. 400 A depending on the enclosure version. The incoming and outgoing leads are fed into the enclosures via cable glands. |
| For customer | BASF |
Explosion Protection
Electrical Data
Ambient Conditions

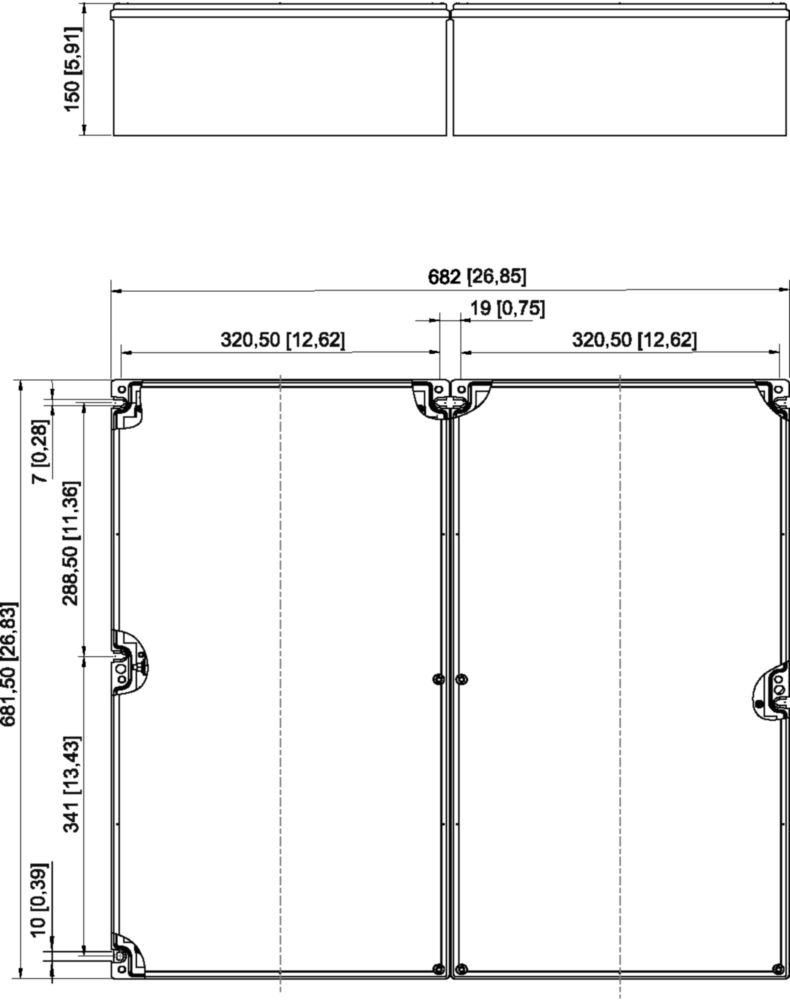

Mechanical Data
Mounting / Installation
Components
Commercial data
Downloads
| Description | Document Type | Language | |
|---|---|---|---|
| Cable End Boxes Series 8146 | Data Sheet |
 |
|
| Cable End Boxes Series 8146 | Data Sheet |
 |
|
| Cable end box - 8146/1000-C923 - 136158 - de-DE | Single Data Sheet |
|
|
| Cable end box - 8146/1000-C923 - 136158 - en-GB | Single Data Sheet |
|
|
| Cable end box - 8146/1000-C923 - 136158 - fr-FR | Single Data Sheet |
 |
|
| Cable end box - 8146/1000-C923 - 136158 - es-ES | Single Data Sheet |
 |
