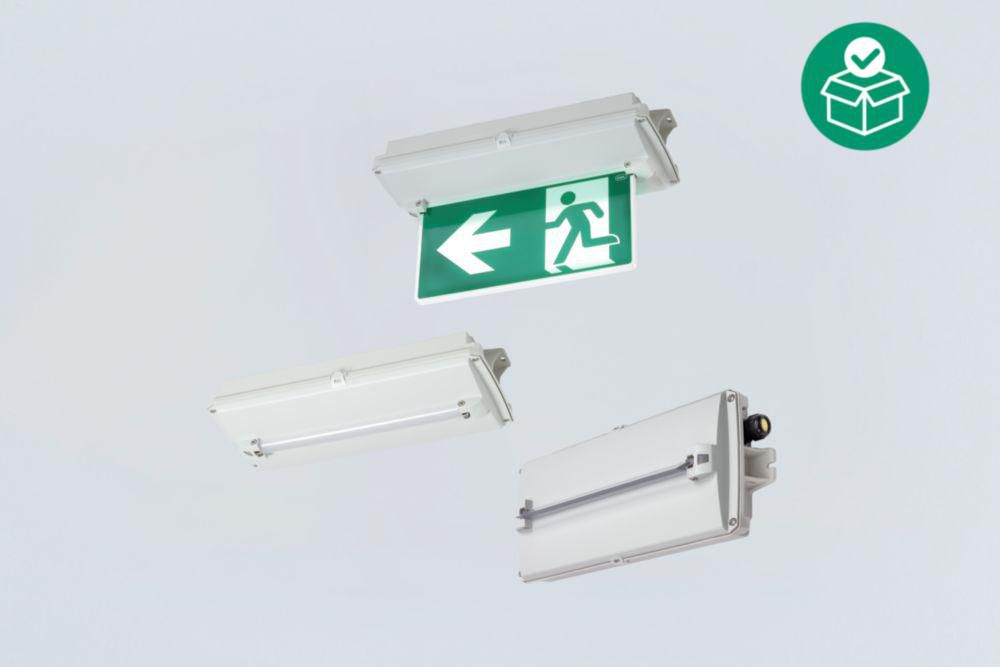

C-LUX compact emergency luminaires Series 6109

C-LUX 6109 series compact emergency luminaires can be used for emergency lighting, as well as for indication or escape route luminaires.

  • Suitable for wall, ceiling and suspended mounting
  • Operating modes: Continuous mode, continuous mode with switchable emergency lighting
  • With function and rated operating time test with optional DALI technology
  • Large recognition range d ≥ 30 m
  • Emergency exit signs with suspended panel so that they can be read from both sides
  • Lightweight, robust and compact design

Filter product lines

hide
Certificates
Product status
Zone Filter
Lamp
Light distribution
Luminous flux
Emergency light output
Colour temperature
Min. ambient temperature
Max. ambient temperature
Enclosure material
Diffuser
Max.solid connection terminals
Disconnection of the luminaire
Through wiring
Drilled holes
Cable entries

23 Products

Please select products you want to compare Compare
Ex C-LUX 6102 series compact light fittings R. STAHL

C-LUX compact emergency luminaires Series 6109

Art. No.: 287814
Product Type: 6109/111-0101-160-0111-31-A850-001
min. ambient temperature: -30°C
max. ambient temperature: +50°C
Zone Filter: Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc / Zone 21 | 2 D | Db / Zone 22 | 3 D | Dc
Product status: -Emty-
Certificates: ATEX (IBE), IECEx (IBE), Polen (CNBOP), Brazil (ULB), China (NEPSI)
Lamp: LED
Light distribution: 0...60° (w. deflection opt.)
Luminous flux: 490 lm
Emergency light output: 25% – 3.0 h, 50% – 1.5 h
Colour temperature: 5000 K
Enclosure material: Thermoset
Max. solid connection terminals: 6 mm²
Disconnection of the luminaire: No
Through wiring: Loop in/loop out
Drilled holes: 3 x M25
Cable glands and entries: 2 x M25 Ø 7 ... 17 mm
Please select products you want to compare Compare
Ex C-LUX 6102 series compact light fittings R. STAHL

C-LUX compact emergency luminaires Series 6109

Art. No.: 287816
Product Type: 6109/111-0111-180-0111-31-1850-A11
min. ambient temperature: -30°C
max. ambient temperature: +50°C
Zone Filter: Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc / Zone 21 | 2 D | Db / Zone 22 | 3 D | Dc
Product status: -Emty-
Certificates: ATEX (IBE), IECEx (IBE), Polen (CNBOP), Brazil (ULB), China (NEPSI)
Lamp: LED
Luminous flux: 0 lm
Emergency light output: 25% – 3.0 h, 50% – 1.5 h
Enclosure material: Thermoset
Max. solid connection terminals: 6 mm²
Disconnection of the luminaire: No
Through wiring: Loop in/loop out
Drilled holes: 3 x M25
Cable glands and entries: 2 x M25 Ø 7 ... 17 mm
Please select products you want to compare Compare
Ex C-LUX 6102 series compact light fittings R. STAHL

C-LUX compact emergency luminaires Series 6109

Art. No.: 287813
Product Type: 6109/111-0101-160-0111-31-4850-001
min. ambient temperature: -30°C
max. ambient temperature: +50°C
Zone Filter: Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc / Zone 21 | 2 D | Db / Zone 22 | 3 D | Dc
Product status: -Emty-
Certificates: ATEX (IBE), IECEx (IBE), Polen (CNBOP), Brazil (ULB), China (NEPSI)
Lamp: LED
Light distribution: 80° (with diffuser)
Luminous flux: 600 lm
Emergency light output: 25% – 3.0 h, 50% – 1.5 h
Colour temperature: 5000 K
Enclosure material: Thermoset
Diffuser: With diffuser 2 x 40°
Max. solid connection terminals: 6 mm²
Disconnection of the luminaire: No
Through wiring: Loop in/loop out
Drilled holes: 3 x M25
Cable glands and entries: 2 x M25 Ø 7 ... 17 mm
Please select products you want to compare Compare
Ex C-LUX 6102 series compact light fittings R. STAHL

C-LUX compact emergency luminaires Series 6109

Art. No.: 287819
Product Type: 6109/111-0111-180-0111-31-1850-C11
min. ambient temperature: -30°C
max. ambient temperature: +50°C
Zone Filter: Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc / Zone 21 | 2 D | Db / Zone 22 | 3 D | Dc
Product status: -Emty-
Certificates: ATEX (IBE), IECEx (IBE), Polen (CNBOP), Brazil (ULB), China (NEPSI)
Lamp: LED
Luminous flux: 0 lm
Emergency light output: 25% – 3.0 h, 50% – 1.5 h
Enclosure material: Thermoset
Max. solid connection terminals: 6 mm²
Disconnection of the luminaire: No
Through wiring: Loop in/loop out
Drilled holes: 3 x M25
Cable glands and entries: 2 x M25 Ø 7 ... 17 mm
Please select products you want to compare Compare
Ex C-LUX 6102 series compact light fittings R. STAHL

C-LUX compact emergency luminaires Series 6109

Art. No.: 287817
Product Type: 6109/111-0111-180-0111-31-1850-A21
min. ambient temperature: -30°C
max. ambient temperature: +50°C
Zone Filter: Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc / Zone 21 | 2 D | Db / Zone 22 | 3 D | Dc
Product status: -Emty-
Certificates: ATEX (IBE), IECEx (IBE), Polen (CNBOP), Brazil (ULB), China (NEPSI)
Lamp: LED
Luminous flux: 0 lm
Emergency light output: 25% – 3.0 h, 50% – 1.5 h
Enclosure material: Thermoset
Max. solid connection terminals: 6 mm²
Disconnection of the luminaire: No
Through wiring: Loop in/loop out
Drilled holes: 3 x M25
Cable glands and entries: 2 x M25 Ø 7 ... 17 mm
Please select products you want to compare Compare
Ex C-LUX 6102 series compact light fittings R. STAHL

C-LUX compact emergency luminaires Series 6109

Art. No.: 287820
Product Type: 6109/111-0111-180-0111-31-1850-D11
min. ambient temperature: -30°C
max. ambient temperature: +50°C
Zone Filter: Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc / Zone 21 | 2 D | Db / Zone 22 | 3 D | Dc
Product status: -Emty-
Certificates: ATEX (IBE), IECEx (IBE), Polen (CNBOP), Brazil (ULB), China (NEPSI)
Lamp: LED
Luminous flux: 0 lm
Emergency light output: 25% – 3.0 h, 50% – 1.5 h
Enclosure material: Thermoset
Max. solid connection terminals: 6 mm²
Disconnection of the luminaire: No
Through wiring: Loop in/loop out
Drilled holes: 3 x M25
Cable glands and entries: 2 x M25 Ø 7 ... 17 mm
Please select products you want to compare Compare
Ex C-LUX 6102 series compact light fittings R. STAHL

C-LUX compact emergency luminaires Series 6109

Art. No.: 287821
Product Type: 6109/111-0111-180-0111-31-4850-001
min. ambient temperature: -30°C
max. ambient temperature: +50°C
Zone Filter: Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc / Zone 21 | 2 D | Db / Zone 22 | 3 D | Dc
Product status: -Emty-
Certificates: ATEX (IBE), IECEx (IBE), Polen (CNBOP), Brazil (ULB), China (NEPSI)
Lamp: LED
Light distribution: 80° (with diffuser)
Luminous flux: 600 lm
Emergency light output: 25% – 3.0 h, 50% – 1.5 h
Colour temperature: 5000 K
Enclosure material: Thermoset
Diffuser: With diffuser 2 x 40°
Max. solid connection terminals: 6 mm²
Disconnection of the luminaire: No
Through wiring: Loop in/loop out
Drilled holes: 3 x M25
Cable glands and entries: 2 x M25 Ø 7 ... 17 mm
Please select products you want to compare Compare
Ex C-LUX 6102 series compact light fittings R. STAHL

C-LUX compact emergency luminaires Series 6109

Art. No.: 287811
Product Type: 6109/111-0101-160-0111-31-1850-K11
min. ambient temperature: -30°C
max. ambient temperature: +50°C
Zone Filter: Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc / Zone 21 | 2 D | Db / Zone 22 | 3 D | Dc
Product status: -Emty-
Certificates: ATEX (IBE), IECEx (IBE), Polen (CNBOP), Brazil (ULB), China (NEPSI)
Lamp: LED
Luminous flux: 0 lm
Emergency light output: 25% – 3.0 h, 50% – 1.5 h
Enclosure material: Thermoset
Max. solid connection terminals: 6 mm²
Disconnection of the luminaire: No
Through wiring: Loop in/loop out
Drilled holes: 3 x M25
Cable glands and entries: 2 x M25 Ø 7 ... 17 mm
Please select products you want to compare Compare
Ex C-LUX 6102 series compact light fittings R. STAHL

C-LUX compact emergency luminaires Series 6109

Art. No.: 287822
Product Type: 6109/111-0111-180-0111-31-A850-001
min. ambient temperature: -30°C
max. ambient temperature: +50°C
Zone Filter: Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc / Zone 21 | 2 D | Db / Zone 22 | 3 D | Dc
Product status: -Emty-
Certificates: ATEX (IBE), IECEx (IBE), Polen (CNBOP), Brazil (ULB), China (NEPSI)
Lamp: LED
Light distribution: 0...60° (w. deflection opt.)
Luminous flux: 490 lm
Emergency light output: 25% – 3.0 h, 50% – 1.5 h
Colour temperature: 5000 K
Enclosure material: Thermoset
Max. solid connection terminals: 6 mm²
Disconnection of the luminaire: No
Through wiring: Loop in/loop out
Drilled holes: 3 x M25
Cable glands and entries: 2 x M25 Ø 7 ... 17 mm
Please select products you want to compare Compare
Ex C-LUX 6102 series compact light fittings R. STAHL

C-LUX compact emergency luminaires Series 6109

Art. No.: 287810
Product Type: 6109/111-0101-160-0111-31-1850-H21
min. ambient temperature: -30°C
max. ambient temperature: +50°C
Zone Filter: Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc / Zone 21 | 2 D | Db / Zone 22 | 3 D | Dc
Product status: -Emty-
Certificates: ATEX (IBE), IECEx (IBE), Polen (CNBOP), Brazil (ULB), China (NEPSI)
Lamp: LED
Luminous flux: 0 lm
Emergency light output: 25% – 3.0 h, 50% – 1.5 h
Enclosure material: Thermoset
Max. solid connection terminals: 6 mm²
Disconnection of the luminaire: No
Through wiring: Loop in/loop out
Drilled holes: 3 x M25
Cable glands and entries: 2 x M25 Ø 7 ... 17 mm
Please select products you want to compare Compare
Ex C-LUX 6102 series compact light fittings R. STAHL

C-LUX compact emergency luminaires Series 6109

Art. No.: 287818
Product Type: 6109/111-0111-180-0111-31-1850-B11
min. ambient temperature: -30°C
max. ambient temperature: +50°C
Zone Filter: Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc / Zone 21 | 2 D | Db / Zone 22 | 3 D | Dc
Product status: -Emty-
Certificates: ATEX (IBE), IECEx (IBE), Polen (CNBOP), Brazil (ULB), China (NEPSI)
Lamp: LED
Luminous flux: 0 lm
Emergency light output: 25% – 3.0 h, 50% – 1.5 h
Enclosure material: Thermoset
Max. solid connection terminals: 6 mm²
Disconnection of the luminaire: No
Through wiring: Loop in/loop out
Drilled holes: 3 x M25
Cable glands and entries: 2 x M25 Ø 7 ... 17 mm
Please select products you want to compare Compare
Ex C-LUX 6102 series compact light fittings R. STAHL

C-LUX compact emergency luminaires Series 6109

Art. No.: 287803
Product Type: 6109/111-0101-160-0111-31-1850-C21
min. ambient temperature: -30°C
max. ambient temperature: +50°C
Zone Filter: Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc / Zone 21 | 2 D | Db / Zone 22 | 3 D | Dc
Product status: -Emty-
Certificates: ATEX (IBE), IECEx (IBE), Polen (CNBOP), Brazil (ULB), China (NEPSI)
Lamp: LED
Luminous flux: 0 lm
Emergency light output: 25% – 3.0 h, 50% – 1.5 h
Enclosure material: Thermoset
Max. solid connection terminals: 6 mm²
Disconnection of the luminaire: No
Through wiring: Loop in/loop out
Drilled holes: 3 x M25
Cable glands and entries: 2 x M25 Ø 7 ... 17 mm
Please select products you want to compare Compare
Ex C-LUX 6102 series compact light fittings R. STAHL

C-LUX compact emergency luminaires Series 6109

Art. No.: 287798
Product Type: 6109/111-0101-160-0111-31-0850-001
min. ambient temperature: -30°C
max. ambient temperature: +50°C
Zone Filter: Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc / Zone 21 | 2 D | Db / Zone 22 | 3 D | Dc
Product status: -Emty-
Certificates: ATEX (IBE), IECEx (IBE), Polen (CNBOP), Brazil (ULB), China (NEPSI)
Lamp: LED
Light distribution: 2 x 15° (without light attachment)
Luminous flux: 775 lm
Emergency light output: 25% – 3.0 h, 50% – 1.5 h
Colour temperature: 5000 K
Enclosure material: Thermoset
Max. solid connection terminals: 6 mm²
Disconnection of the luminaire: No
Through wiring: Loop in/loop out
Drilled holes: 3 x M25
Cable glands and entries: 2 x M25 Ø 7 ... 17 mm
Please select products you want to compare Compare
Ex C-LUX 6102 series compact light fittings R. STAHL

C-LUX compact emergency luminaires Series 6109

Art. No.: 287801
Product Type: 6109/111-0101-160-0111-31-1850-B11
min. ambient temperature: -30°C
max. ambient temperature: +50°C
Zone Filter: Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc / Zone 21 | 2 D | Db / Zone 22 | 3 D | Dc
Product status: -Emty-
Certificates: ATEX (IBE), IECEx (IBE), Polen (CNBOP), Brazil (ULB), China (NEPSI)
Lamp: LED
Luminous flux: 0 lm
Emergency light output: 25% – 3.0 h, 50% – 1.5 h
Enclosure material: Thermoset
Max. solid connection terminals: 6 mm²
Disconnection of the luminaire: No
Through wiring: Loop in/loop out
Drilled holes: 3 x M25
Cable glands and entries: 2 x M25 Ø 7 ... 17 mm
Please select products you want to compare Compare
Ex C-LUX 6102 series compact light fittings R. STAHL

C-LUX compact emergency luminaires Series 6109

Art. No.: 287805
Product Type: 6109/111-0101-160-0111-31-1850-D21
min. ambient temperature: -30°C
max. ambient temperature: +50°C
Zone Filter: Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc / Zone 21 | 2 D | Db / Zone 22 | 3 D | Dc
Product status: -Emty-
Certificates: ATEX (IBE), IECEx (IBE), Polen (CNBOP), Brazil (ULB), China (NEPSI)
Lamp: LED
Luminous flux: 0 lm
Emergency light output: 25% – 3.0 h, 50% – 1.5 h
Enclosure material: Thermoset
Max. solid connection terminals: 6 mm²
Disconnection of the luminaire: No
Through wiring: Loop in/loop out
Drilled holes: 3 x M25
Cable glands and entries: 2 x M25 Ø 7 ... 17 mm
Please select products you want to compare Compare
Ex C-LUX 6102 series compact light fittings R. STAHL

C-LUX compact emergency luminaires Series 6109

Art. No.: 287800
Product Type: 6109/111-0101-160-0111-31-1850-A21
min. ambient temperature: -30°C
max. ambient temperature: +50°C
Zone Filter: Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc / Zone 21 | 2 D | Db / Zone 22 | 3 D | Dc
Product status: -Emty-
Certificates: ATEX (IBE), IECEx (IBE), Polen (CNBOP), Brazil (ULB), China (NEPSI)
Lamp: LED
Luminous flux: 0 lm
Emergency light output: 25% – 3.0 h, 50% – 1.5 h
Enclosure material: Thermoset
Max. solid connection terminals: 6 mm²
Disconnection of the luminaire: No
Through wiring: Loop in/loop out
Drilled holes: 3 x M25
Cable glands and entries: 2 x M25 Ø 7 ... 17 mm
Please select products you want to compare Compare
Ex C-LUX 6102 series compact light fittings R. STAHL

C-LUX compact emergency luminaires Series 6109

Art. No.: 287808
Product Type: 6109/111-0101-160-0111-31-1850-G11
min. ambient temperature: -30°C
max. ambient temperature: +50°C
Zone Filter: Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc / Zone 21 | 2 D | Db / Zone 22 | 3 D | Dc
Product status: -Emty-
Certificates: ATEX (IBE), IECEx (IBE), Polen (CNBOP), Brazil (ULB), China (NEPSI)
Lamp: LED
Luminous flux: 0 lm
Emergency light output: 25% – 3.0 h, 50% – 1.5 h
Enclosure material: Thermoset
Max. solid connection terminals: 6 mm²
Disconnection of the luminaire: No
Through wiring: Loop in/loop out
Drilled holes: 3 x M25
Cable glands and entries: 2 x M25 Ø 7 ... 17 mm
Please select products you want to compare Compare
Ex C-LUX 6102 series compact light fittings R. STAHL

C-LUX compact emergency luminaires Series 6109

Art. No.: 287807
Product Type: 6109/111-0101-160-0111-31-1850-E21
min. ambient temperature: -30°C
max. ambient temperature: +50°C
Zone Filter: Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc / Zone 21 | 2 D | Db / Zone 22 | 3 D | Dc
Product status: -Emty-
Certificates: ATEX (IBE), IECEx (IBE), Polen (CNBOP), Brazil (ULB), China (NEPSI)
Lamp: LED
Luminous flux: 0 lm
Emergency light output: 25% – 3.0 h, 50% – 1.5 h
Enclosure material: Thermoset
Max. solid connection terminals: 6 mm²
Disconnection of the luminaire: No
Through wiring: Loop in/loop out
Drilled holes: 3 x M25
Cable glands and entries: 2 x M25 Ø 7 ... 17 mm
Please select products you want to compare Compare
Ex C-LUX 6102 series compact light fittings R. STAHL

C-LUX compact emergency luminaires Series 6109

Art. No.: 287802
Product Type: 6109/111-0101-160-0111-31-1850-C11
min. ambient temperature: -30°C
max. ambient temperature: +50°C
Zone Filter: Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc / Zone 21 | 2 D | Db / Zone 22 | 3 D | Dc
Product status: -Emty-
Certificates: ATEX (IBE), IECEx (IBE), Polen (CNBOP), Brazil (ULB), China (NEPSI)
Lamp: LED
Luminous flux: 0 lm
Emergency light output: 25% – 3.0 h, 50% – 1.5 h
Enclosure material: Thermoset
Max. solid connection terminals: 6 mm²
Disconnection of the luminaire: No
Through wiring: Loop in/loop out
Drilled holes: 3 x M25
Cable glands and entries: 2 x M25 Ø 7 ... 17 mm
Please select products you want to compare Compare
Ex C-LUX 6102 series compact light fittings R. STAHL

C-LUX compact emergency luminaires Series 6109

Art. No.: 287809
Product Type: 6109/111-0101-160-0111-31-1850-H11
min. ambient temperature: -30°C
max. ambient temperature: +50°C
Zone Filter: Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc / Zone 21 | 2 D | Db / Zone 22 | 3 D | Dc
Product status: -Emty-
Certificates: ATEX (IBE), IECEx (IBE), Polen (CNBOP), Brazil (ULB), China (NEPSI)
Lamp: LED
Luminous flux: 0 lm
Emergency light output: 25% – 3.0 h, 50% – 1.5 h
Enclosure material: Thermoset
Max. solid connection terminals: 6 mm²
Disconnection of the luminaire: No
Through wiring: Loop in/loop out
Drilled holes: 3 x M25
Cable glands and entries: 2 x M25 Ø 7 ... 17 mm
Please select products you want to compare Compare
Ex C-LUX 6102 series compact light fittings R. STAHL

C-LUX compact emergency luminaires Series 6109

Art. No.: 287799
Product Type: 6109/111-0101-160-0111-31-1850-A11
min. ambient temperature: -30°C
max. ambient temperature: +50°C
Zone Filter: Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc / Zone 21 | 2 D | Db / Zone 22 | 3 D | Dc
Product status: -Emty-
Certificates: ATEX (IBE), IECEx (IBE), Polen (CNBOP), Brazil (ULB), China (NEPSI)
Lamp: LED
Luminous flux: 0 lm
Emergency light output: 25% – 3.0 h, 50% – 1.5 h
Enclosure material: Thermoset
Max. solid connection terminals: 6 mm²
Disconnection of the luminaire: No
Through wiring: Loop in/loop out
Drilled holes: 3 x M25
Cable glands and entries: 2 x M25 Ø 7 ... 17 mm
Please select products you want to compare Compare
Ex C-LUX 6102 series compact light fittings R. STAHL

C-LUX compact emergency luminaires Series 6109

Art. No.: 287806
Product Type: 6109/111-0101-160-0111-31-1850-E11
min. ambient temperature: -30°C
max. ambient temperature: +50°C
Zone Filter: Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc / Zone 21 | 2 D | Db / Zone 22 | 3 D | Dc
Product status: -Emty-
Certificates: ATEX (IBE), IECEx (IBE), Polen (CNBOP), Brazil (ULB), China (NEPSI)
Lamp: LED
Luminous flux: 0 lm
Emergency light output: 25% – 3.0 h, 50% – 1.5 h
Enclosure material: Thermoset
Max. solid connection terminals: 6 mm²
Disconnection of the luminaire: No
Through wiring: Loop in/loop out
Drilled holes: 3 x M25
Cable glands and entries: 2 x M25 Ø 7 ... 17 mm
Please select products you want to compare Compare
Ex C-LUX 6102 series compact light fittings R. STAHL

C-LUX compact emergency luminaires Series 6109

Art. No.: 287804
Product Type: 6109/111-0101-160-0111-31-1850-D11
min. ambient temperature: -30°C
max. ambient temperature: +50°C
Zone Filter: Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc / Zone 21 | 2 D | Db / Zone 22 | 3 D | Dc
Product status: -Emty-
Certificates: ATEX (IBE), IECEx (IBE), Polen (CNBOP), Brazil (ULB), China (NEPSI)
Lamp: LED
Luminous flux: 0 lm
Emergency light output: 25% – 3.0 h, 50% – 1.5 h
Enclosure material: Thermoset
Max. solid connection terminals: 6 mm²
Disconnection of the luminaire: No
Through wiring: Loop in/loop out
Drilled holes: 3 x M25
Cable glands and entries: 2 x M25 Ø 7 ... 17 mm

ASK OUR EXPERTS

Please get in touch with our contact person

Ex contact customer service center R. STAHL

Sales Support

International
+49 7942 943–1000
Callback
Previous

We'll be glad to call you back to support you!

We'll be glad to call you back to support you!
*Mandatory fields
Previous
Previous

Contact form

*Mandatory fields
Previous

We'll be glad to call you back to support you.

Wir rufen Sie gerne für ein Beratungsgespräch zurück. EN
*Mandatory
