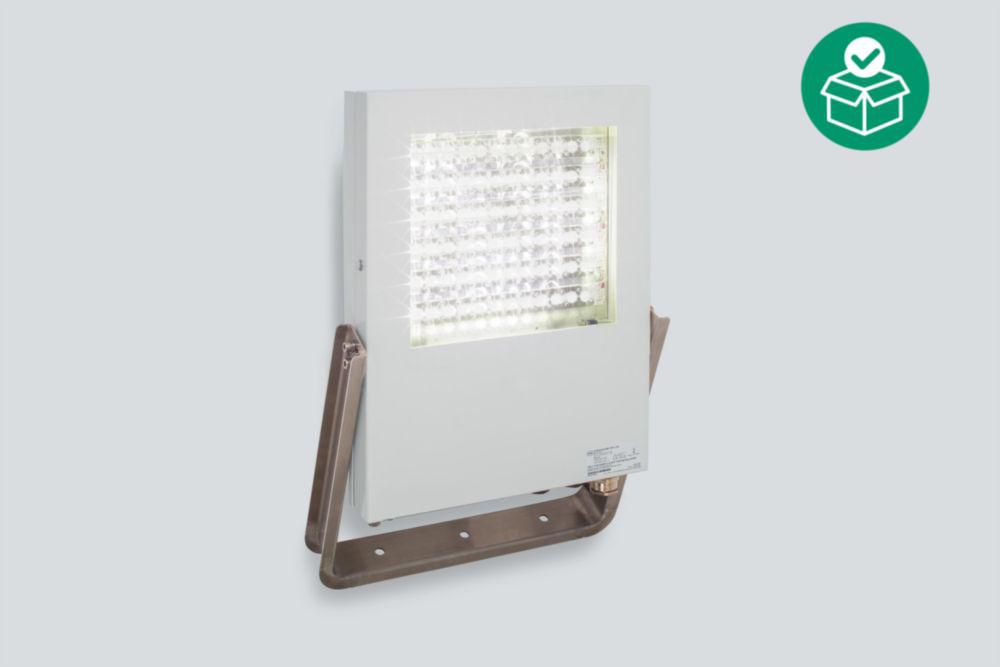

Floodlight LED Series 6525/22 (Ex ec)
Art. No.:
282368
Product Type:
6525/2224-3501-6015-242
max. ambient temperature:
+60 °C
min. ambient temperature:
-60 °C
Lamp wattage:
160 W
AC rated operational voltage:
110 - 277 V
Zone Filter:
Zone 2 | 3 G | Gc / Zone 21 | 2 D | Db / Zone 22 | 3 D | Dc
Certificates:
ATEX (BVIS), IECEx (BVIS), India (PESO)
Lamp:
LED
Light distribution:
wide beam
Enclosure material:
Stainless steel 1.4404
Max. solid connection terminals:
6 mm²
Drilled holes:
3 x M25
Country of origin:
DE
On request
Technical data
General
| MY R. STAHL | 6525C |
| Product Type | 6525/2224-3501-6015-242 |
| Highlights | Checked and approved in accordance with Ex ec type of protection, so vapour tightness test is not applicableStainless steel enclosure as standard for a long service life and safety even under harsh ambient conditionsExtremely wide range of ambient temperatures – between -60 °C and +60 °CRobust design with IK10 and IP66Wide-range input with optional 100 V to 277 VDALI versions available for lighting control, monitoring and switching |
| Functional Description | The revised generation of LED floodlights for Zone 2 now includes a version with Ex ec type of protection especially for the European market. This eliminates the time-consuming vapour tightness test. The wide-range input now also meets the electrical installation conditions for global use. With an optional DALI interface, the floodlight paves the way to a digital lighting solution. Its extremely low start-up current can also support existing installations, as the circuit breakers that are already installed do not need to be replaced. |
Explosion Protection
Electrical Data
Lighting Data
Ambient Conditions
Mechanical Data
Mounting / Installation
Components
Commercial data
Downloads
| Description | Document Type | Language | |
|---|---|---|---|
| LED floodlight - 6525/2224-3501-6015-242 - 282368 - en-US | Single Data Sheet |
  |
|
| LED floodlight - 6525/2224-3501-6015-242 - 282368 - de-DE | Single Data Sheet |
 |
|
| Floodlight LED - 6525/2224-3501-6015-242 - 282368 - en-GB | Single Data Sheet |
 |
|
| Floodlight LED - 6525/2224-3501-6015-242 - 282368 - fr-FR | Single Data Sheet |
 |
|
| Floodlight LED - 6525/22 (Ex ec) - es-ES | Product Overview |
 |
|
| Floodlight LED - 6525/22 (Ex ec) - de-DE | Product Overview |
|
|
| Floodlight LED - 6525/22 (Ex ec) - en-GB | Product Overview |
|
|
| Floodlight LED - 6525/22 (Ex ec) - fr-FR | Product Overview |
|
|
| Floodlight LED - 6525/22 (Ex ec) - zh-CN | Product Overview |
 |
|
| Floodlight LED - 6525/22 (Ex ec) - en-US | Product Overview |
|
|
| Floodlight LED - 6525/2224-3501-6015-242 - 282368 - es-ES | Single Data Sheet |
|
