Series 8572/14 16 A coupling

R. STAHL Series 8572/14 couplings are 3-pole 16 A compact couplings made from robust plastic for voltages up to 277 V. Self-cleaning lamellar contacts provide optimum contact and the floating pins allow the plugs to be inserted and removed in the zero position with minimum effort. The integrated mechanical locking device prevents the plugs from disconnecting under load.

  • Wear-free contacts protected against corrosion, even in a corrosive atmosphere
  • Large temperature range of use
  • High mechanical impact and shock resistance
  • Perfect protection against penetration of liquids and dusts
  • 3D data for download on the website

Filter product lines

hide
Certificates
Product Description
Rated operational current
Frequency range
Min. ambient temperature
Max. ambient temperature
Silicone-free
Colour code
Coding (clock hour position)​
Detailed number of poles
Subsitution for material

6 Products

Please select products you want to compare Compare
8572/14-306, 16 A compact coupling, 200 ... 250 V AC Blue, 2 P + PE, 6 h, 8 - 15 mm, Polyamide, Zone 1, 2, 21, 22

8572/14-306, 16 A compact coupling, 200 ... 250 V AC Blue, 2 P + PE, 6 h, 8 - 15 mm, Polyamide, Zone 1, 2, 21, 22 Core product

Art. No.: 242341
Product Type: 8572/14-306
max. ambient temperature: +45 °C
min. ambient temperature: -50 °C
Rated operational current: 16 A
Subsitution for material: 151481
Product description: 16 A compact coupling
Certificates: ATEX (PTB), IECEx (PTB), China (CQST)
Frequency range: 50 / 60 Hz
Silicone-free: No
Colour code: blue
Coding (clock hour position): 6
Detailed number of poles: 2 P + PE
Please select products you want to compare Compare

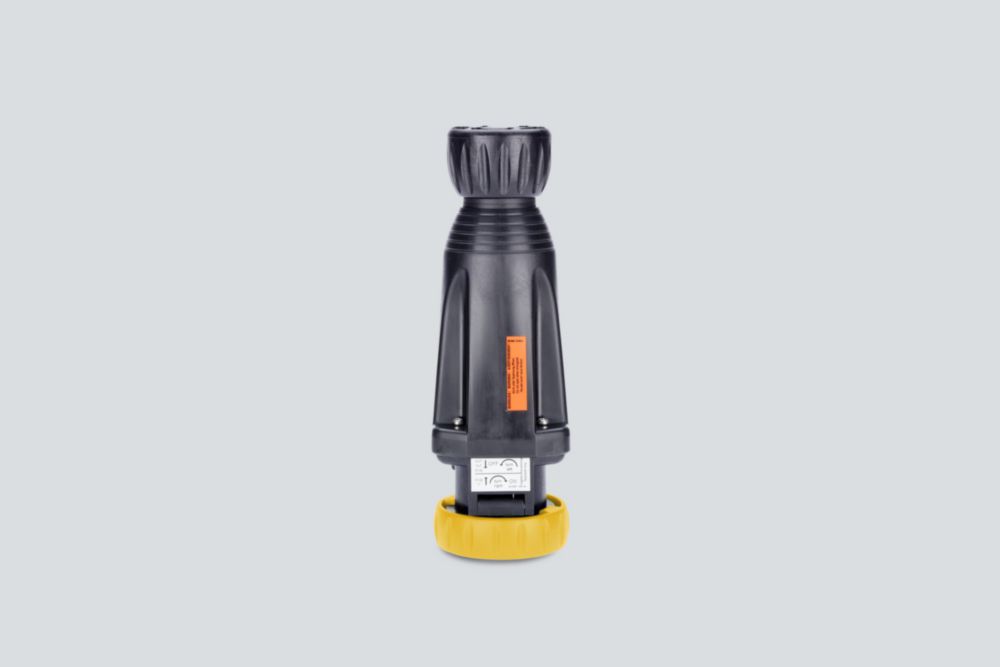

Ex Series 8572/14 16 A coupling R. STAHL

8572/14-304, 16 A compact coupling, 100 ... 130 V AC Yellow, 1 P + N + PE, 4 h, 8 - 15 mm, Polyamide, Zone 1, 2, 21, 22

Art. No.: 242343
Product Type: 8572/14-304
max. ambient temperature: +45 °C
min. ambient temperature: -50 °C
Rated operational current: 16 A
Subsitution for material: 151471
Product description: 16 A compact coupling
Certificates: ATEX (PTB), IECEx (PTB), China (CQST)
Frequency range: 50 / 60 Hz
Silicone-free: No
Colour code: yellow
Coding (clock hour position): 4
Detailed number of poles: 1 P + N + PE
Please select products you want to compare Compare
Ex Coupler Series 16 A 8572/14 R. STAHL

8572/14-305, 16 A compact coupling, 277 V AC Light grey, 1 P + N + PE, 5 h, 8 - 15 mm, Polyamide, Zone 1, 2, 21, 22

Art. No.: 242342
Product Type: 8572/14-305
max. ambient temperature: +45 °C
min. ambient temperature: -50 °C
Rated operational current: 16 A
Product description: 16 A compact coupling
Certificates: ATEX (PTB), IECEx (PTB), China (CQST)
Frequency range: 60 Hz
Silicone-free: No
Colour code: light grey
Coding (clock hour position): 5
Detailed number of poles: 1 P + N + PE
Please select products you want to compare Compare
Ex Coupler Series 16 A 8572/14 R. STAHL

8572/14-312, 16 A compact coupling, 50 ... 250 V AC Blue, 2 P + PE, 12 h, 8 - 15 mm, Polyamide, Zone 1, 2, 21, 22

Art. No.: 242346
Product Type: 8572/14-312
max. ambient temperature: +45 °C
min. ambient temperature: -50 °C
Rated operational current: 16 A
Subsitution for material: 151531
Product description: 16 A compact coupling downstream of isolating transformer
Certificates: ATEX (PTB), IECEx (PTB), China (CQST)
Frequency range: 50 / 60 Hz
Silicone-free: No
Colour code: blue
Coding (clock hour position): 12
Detailed number of poles: 2 P + PE
Please select products you want to compare Compare
Ex Coupler Series 16 A 8572/14 R. STAHL

8572/14-303, 16 A compact coupling, > 50 ... 110 V DC Light grey, 2 P + PE, 3 h, 8 - 15 mm, Polyamide, Zone 1, 2, 21, 22

Art. No.: 242344
Product Type: 8572/14-303
max. ambient temperature: +45 °C
min. ambient temperature: -50 °C
Rated operational current: 16 A
Subsitution for material: 151521
Product description: 16 A compact coupling
Certificates: ATEX (PTB), IECEx (PTB), China (CQST)
Silicone-free: No
Colour code: light grey
Coding (clock hour position): 3
Detailed number of poles: 2 P + PE
Please select products you want to compare Compare

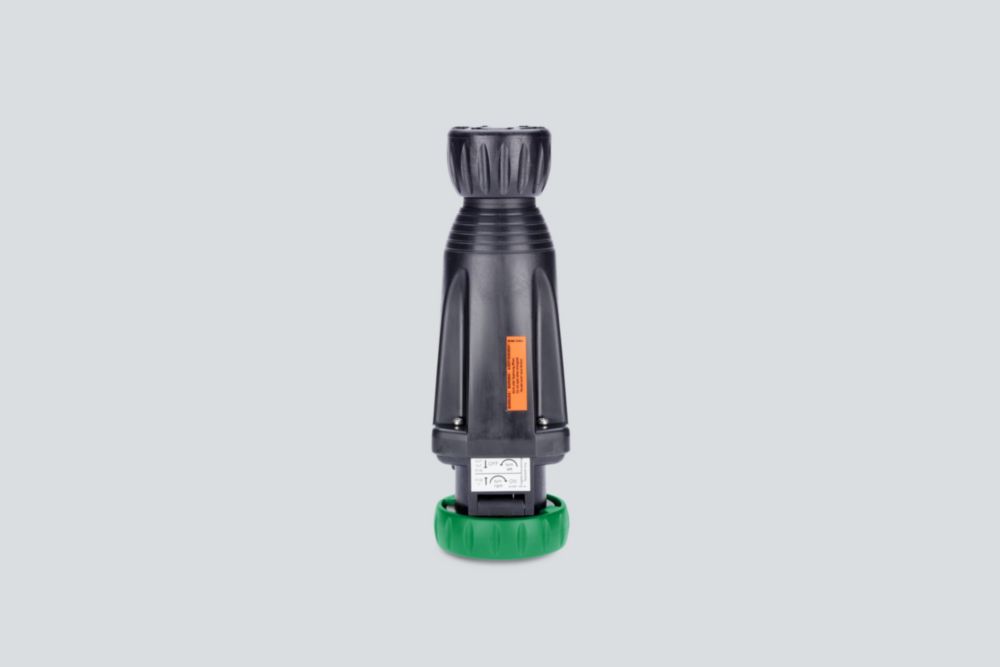

Ex Series 8572/14 16 A coupling R. STAHL

8572/14-302, 16 A compact coupling, > 50 V AC Green, 2 P + PE, 2 h, 8 - 15 mm, Polyamide, Zone 1, 2, 21, 22

Art. No.: 242345
Product Type: 8572/14-302
max. ambient temperature: +45 °C
min. ambient temperature: -50 °C
Rated operational current: 12 A
Subsitution for material: 151511
Product description: 16 A compact coupling
Certificates: ATEX (PTB), IECEx (PTB), China (CQST)
Frequency range: > 300 - 500 Hz
Silicone-free: No
Colour code: green
Coding (clock hour position): 2
Detailed number of poles: 2 P + PE
