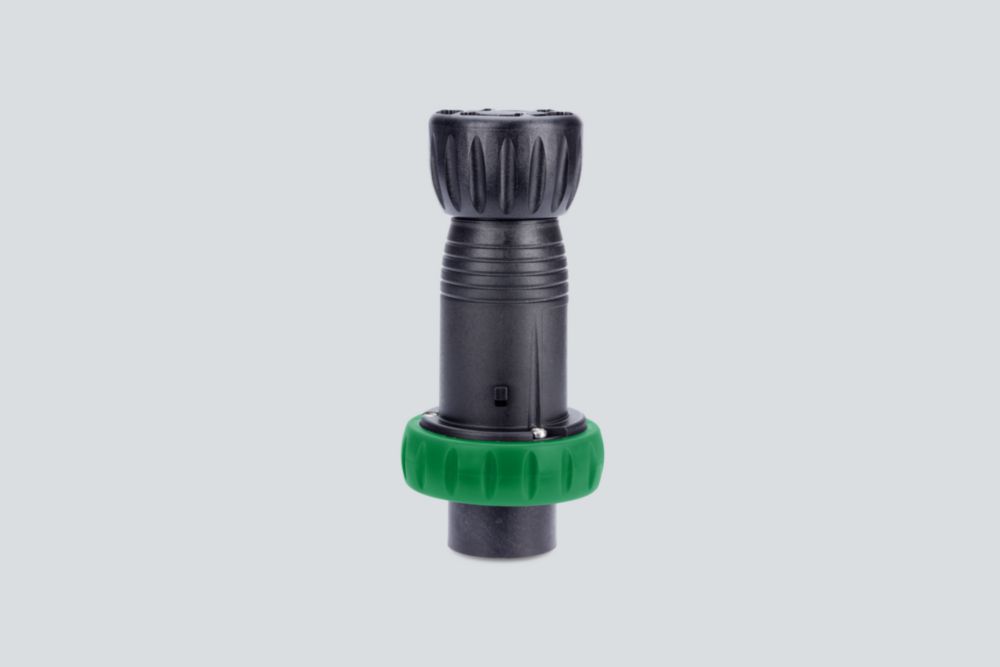

Series 8573/12 16 A extra-low voltage plugs

The new R. STAHL Series 8573/12 plugs are designed for 2- or 3-pole applications up to 16 A. The robust plastic plugs are resistant to corrosive chemicals and gases. The floating pins allow them to be inserted and removed quickly and easily. The inner, pivoting strain relief makes it easier to connect the wires quickly. Corrosion-free contact pins made from high-quality materials ensure optimum electrical contact.The new Series 8573/12 plug replaces Series 8575 plugs, is 100% compatible with this series and can be used with Series 8575 sockets.

  • Large temperature range of use
  • High mechanical impact and shock resistance
  • Perfect protection against penetration of liquids and dusts
  • 3D data for download on the website

Filter product lines

hide
Certificates
Product Description
Rated operational voltage
Rated operational current
Frequency range
Min. ambient temperature
Max. ambient temperature
Silicone-free
Colour code
Coding (clock hour position)​
Detailed number of poles
Subsitution for material

13 Products

Please select products you want to compare Compare
Ex Series 8573/12 16 A extra-low voltage plugs R. STAHL

8573/12-300, 16 A plug, 20 ... 25 V AC Violet, 3 P, 0 h, 8 - 15 mm, Polyamide, Zone 1, 2, 21, 22 Core product

Art. No.: 243190
Product Type: 8573/12-300
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Rated operational current: 16 A
Subsitution for material: 151486
Product description: 16 A plug Extra-low voltage
Certificates: ATEX (PTB), IECEx (PTB), China (CQST)
Rated operational voltage: 20 ... 25 V AC
Frequency range: 50 / 60 Hz
Silicone-free: No
Colour code: violet
Coding (clock hour position): 0
Detailed number of poles: 3 P
Please select products you want to compare Compare
Ex Series 8573/12 16 A extra-low voltage plugs R. STAHL

8573/12-200, 16 A plug, 20 ... 25 V AC Violet, 2 P, 0 h, 8 - 15 mm, Polyamide, Zone 1, 2, 21, 22 Core product

Art. No.: 243197
Product Type: 8573/12-200
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Rated operational current: 16 A
Subsitution for material: 151545
Product description: 16 A plug Extra-low voltage
Certificates: ATEX (PTB), IECEx (PTB), China (CQST)
Rated operational voltage: 20 ... 25 V AC
Frequency range: 50 / 60 Hz
Silicone-free: No
Colour code: violet
Coding (clock hour position): 0
Detailed number of poles: 2 P
Please select products you want to compare Compare
Ex Series 8573/12 16 A extra-low voltage plugs R. STAHL

8573/12-210, 16 A plug, 20 ... 25 V DC Violet, 2 P, 10 h, 8 - 15 mm, Polyamide, Zone 1, 2, 21, 22 Core product

Art. No.: 243203
Product Type: 8573/12-210
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Rated operational current: 16 A
Subsitution for material: 151553
Product description: 16 A plug Extra-low voltage
Certificates: ATEX (PTB), IECEx (PTB), China (CQST)
Rated operational voltage: 20 ... 25 V DC
Silicone-free: No
Colour code: violet
Coding (clock hour position): 10
Detailed number of poles: 2 P
Please select products you want to compare Compare
Ex Stecker Kleinspannung 16 A Reihe 8573/12 R. STAHL

8573/12-212, 16 A plug, 40 ... 50 V AC Light grey, 2 P, 12 h, 8 - 15 mm, Polyamide, Zone 1, 2, 21, 22 Core product

Art. No.: 243202
Product Type: 8573/12-212
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Rated operational current: 16 A
Subsitution for material: 151562
Product description: 16 A plug Extra-low voltage
Certificates: ATEX (PTB), IECEx (PTB), China (CQST)
Rated operational voltage: 40 ... 50 V AC
Frequency range: 50 / 60 Hz
Silicone-free: No
Colour code: light grey
Coding (clock hour position): 12
Detailed number of poles: 2 P
Please select products you want to compare Compare
Ex Stecker Kleinspannung 16 A Reihe 8573/12 R. STAHL

8573/12-312, 16 A plug, 40 ... 50 V AC Light grey, 3 P, 12 h, 8 - 15 mm, Polyamide, Zone 1, 2, 21, 22 Core product

Art. No.: 243195
Product Type: 8573/12-312
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Rated operational current: 16 A
Subsitution for material: 151496
Product description: 16 A plug Extra-low voltage
Certificates: ATEX (PTB), IECEx (PTB), China (CQST)
Rated operational voltage: 40 ... 50 V AC
Frequency range: 50 / 60 Hz
Silicone-free: No
Colour code: light grey
Coding (clock hour position): 12
Detailed number of poles: 3 P
Please select products you want to compare Compare
Ex Plugs, Extra-low Voltage 16 A Series 8573/12 R. STAHL

8573/12-211, 16 A plug, 20 ... 25 & 40 ... 50 V AC Green, 2 P, 11 h, 8 - 15 mm, Polyamide, Zone 1, 2, 21, 22

Art. No.: 243201
Product Type: 8573/12-211
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Rated operational current: 12 A
Subsitution for material: 151601
Product description: 16 A plug Extra-low voltage
Certificates: ATEX (PTB), IECEx (PTB), China (CQST)
Rated operational voltage: 20 ... 25 & 40 ... 50 V AC
Frequency range: > 400 - 500 Hz
Silicone-free: No
Colour code: green
Coding (clock hour position): 11
Detailed number of poles: 2 P
Please select products you want to compare Compare
Ex Plugs, Extra-low Voltage 16 A Series 8573/12 R. STAHL

8573/12-204, 16 A plug, 20 ... 25 & 40 ... 50 V AC Green, 2 P, 4 h, 8 - 15 mm, Polyamide, Zone 1, 2, 21, 22

Art. No.: 243200
Product Type: 8573/12-204
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Rated operational current: 12 A
Subsitution for material: 151586
Product description: 16 A plug Extra-low voltage
Certificates: ATEX (PTB), IECEx (PTB), China (CQST)
Rated operational voltage: 20 ... 25 & 40 ... 50 V AC
Frequency range: 100 - 200 Hz
Silicone-free: No
Colour code: green
Coding (clock hour position): 4
Detailed number of poles: 2 P
Please select products you want to compare Compare
Ex Plugs, Extra-low Voltage 16 A Series 8573/12 R. STAHL

8573/12-203, 16 A plug, 20 ... 25 & 40 ... 50 V AC Green, 2 P, 3 h, 8 - 15 mm, Polyamide, Zone 1, 2, 21, 22

Art. No.: 243199
Product Type: 8573/12-203
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Rated operational current: 12 A
Subsitution for material: 151578
Product description: 16 A plug Extra-low voltage
Certificates: ATEX (PTB), IECEx (PTB), China (CQST)
Rated operational voltage: 20 ... 25 & 40 ... 50 V AC
Frequency range: 400 Hz
Silicone-free: No
Colour code: green
Coding (clock hour position): 3
Detailed number of poles: 2 P
Please select products you want to compare Compare
Ex Plugs, Extra-low Voltage 16 A Series 8573/12 R. STAHL

8573/12-202, 16 A plug, 20 ... 25 & 40 ... 50 V AC Green, 2 P, 2 h, 8 - 15 mm, Polyamide, Zone 1, 2, 21, 22

Art. No.: 243198
Product Type: 8573/12-202
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Rated operational current: 12 A
Subsitution for material: 151570
Product description: 16 A plug Extra-low voltage
Certificates: ATEX (PTB), IECEx (PTB), China (CQST)
Rated operational voltage: 20 ... 25 & 40 ... 50 V AC
Frequency range: 300 Hz
Silicone-free: No
Colour code: green
Coding (clock hour position): 2
Detailed number of poles: 2 P
Please select products you want to compare Compare
Ex Plugs, Extra-low Voltage 16 A Series 8573/12 R. STAHL

8573/12-311, 16 A plug, 20 ... 25 & 40 ... 50 V AC Green, 3 P, 11 h, 8 - 15 mm, Polyamide, Zone 1, 2, 21, 22

Art. No.: 243194
Product Type: 8573/12-311
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Rated operational current: 12 A
Subsitution for material: 151536
Product description: 16 A plug Extra-low voltage
Certificates: ATEX (PTB), IECEx (PTB), China (CQST)
Rated operational voltage: 20 ... 25 & 40 ... 50 V AC
Frequency range: > 400 - 500 Hz
Silicone-free: No
Colour code: green
Coding (clock hour position): 11
Detailed number of poles: 3 P
Please select products you want to compare Compare
Ex Plugs, Extra-low Voltage 16 A Series 8573/12 R. STAHL

8573/12-304, 16 A plug, 20 ... 25 & 40 ... 50 V AC Green, 3 P, 4 h, 8 - 15 mm, Polyamide, Zone 1, 2, 21, 22

Art. No.: 243193
Product Type: 8573/12-304
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Rated operational current: 12 A
Subsitution for material: 151526
Product description: 16 A plug Extra-low voltage
Certificates: ATEX (PTB), IECEx (PTB), China (CQST)
Rated operational voltage: 20 ... 25 & 40 ... 50 V AC
Frequency range: 100 - 200 Hz
Silicone-free: No
Colour code: green
Coding (clock hour position): 4
Detailed number of poles: 3 P
Please select products you want to compare Compare
Ex Plugs, Extra-low Voltage 16 A Series 8573/12 R. STAHL

8573/12-303, 16 A plug, 20 ... 25 & 40 ... 50 V AC Green, 3 P, 3 h, 8 - 15 mm, Polyamide, Zone 1, 2, 21, 22

Art. No.: 243192
Product Type: 8573/12-303
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Rated operational current: 12 A
Subsitution for material: 151516
Product description: 16 A plug Extra-low voltage
Certificates: ATEX (PTB), IECEx (PTB), China (CQST)
Rated operational voltage: 20 ... 25 & 40 ... 50 V AC
Frequency range: 400 Hz
Silicone-free: No
Colour code: green
Coding (clock hour position): 3
Detailed number of poles: 3 P
Please select products you want to compare Compare
Ex Plugs, Extra-low Voltage 16 A Series 8573/12 R. STAHL

8573/12-302, 16 A plug, 20 ... 25 & 40 ... 50 V AC Green, 3 P, 2 h, 8 - 15 mm, Polyamide, Zone 1, 2, 21, 22

Art. No.: 243191
Product Type: 8573/12-302
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Rated operational current: 12 A
Subsitution for material: 151506
Product description: 16 A plug Extra-low voltage
Certificates: ATEX (PTB), IECEx (PTB), China (CQST)
Rated operational voltage: 20 ... 25 & 40 ... 50 V AC
Frequency range: 300 Hz
Silicone-free: No
Colour code: green
Coding (clock hour position): 2
Detailed number of poles: 3 P
