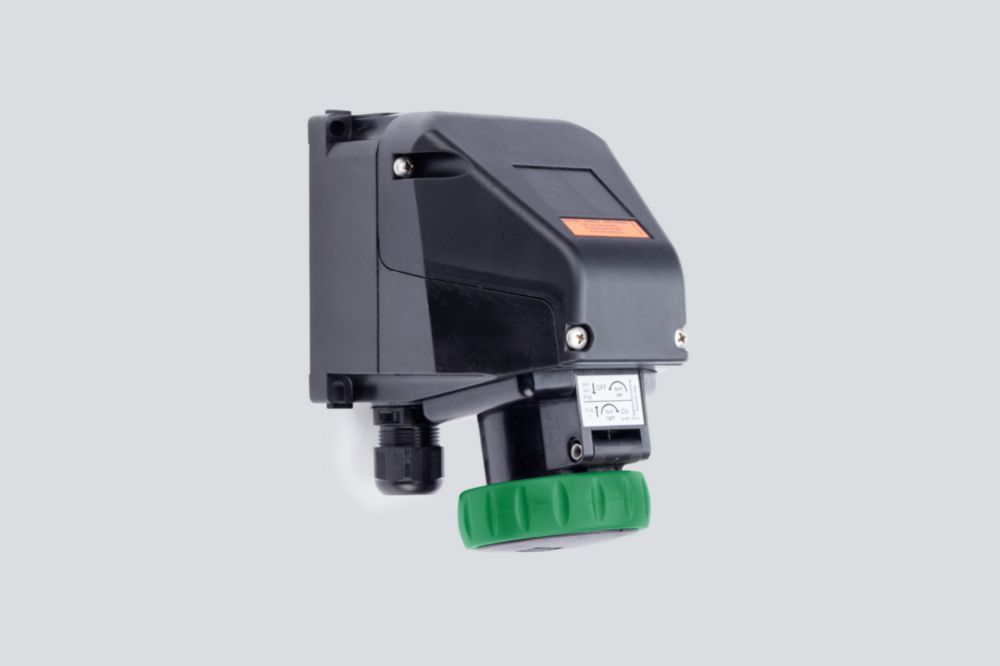

Series 8573/13 16 A wall-mounting sockets, compact, with extra-low voltage

The sockets of the new R. STAHL Series 8573/13 are for 2- or 3-pole applications up to 16 A. The compact sockets for extra-low voltages up to 50 V are made from robust and chemical-resistant plastics. Self-cleaning lamellar contacts provide optimum contact. The integrated rotary switch mechanism and the integrated locking device reliably prevent the plugs from disconnecting under load.The new Series 8573/13 compact socket replaces Series 8575 sockets, is 100% compatible with this series and can be used with Series 8575 plugs.

  • Compact design
  • Large temperature range of use
  • High mechanical impact and shock resistance
  • Perfect protection against penetration of liquids and dusts
  • 3D data for download on the website

Filter product lines

hide
Certificates
Product Description
Rated operational current
Frequency range
Min. ambient temperature
Max. ambient temperature
Silicone-free
Colour code
Coding (clock hour position)​
Detailed number of poles
Entry type 1
Entry 2 type
Subsitution for material

13 Products

Please select products you want to compare Compare
Ex Series 8573/13 16 A wall-mounting sockets, compact, with extra-low voltage R. STAHL

8573/13-200, 16 A compact wall-mounting socket, 20 ... 25 V AC Violet, 2 P, 0 h, M25 x 1.5, 7 - 17 mm, Polyamide, Zone 1, 2, 21, 22 Core product

Art. No.: 243157
Product Type: 8573/13-200
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Entry 2 type: 8290/3-M25
Entry 1 type: 8161/7-M25-1707-LT
Rated operational current: 16 A
Subsitution for material: 151713
Product description: 16 A compact wall-mounting socket Extra-low voltage
Certificates: ATEX (PTB), IECEx (PTB), China (CQST)
Frequency range: 50 / 60 Hz
Silicone-free: No
Colour code: violet
Coding (clock hour position): 0
Detailed number of poles: 2 P
Please select products you want to compare Compare
Ex Series 8573/13 16 A wall-mounting sockets, compact, with extra-low voltage R. STAHL

8573/13-210, 16 A compact wall-mounting socket, 20 ... 25 V DC Violet, 2 P, 10 h, M25 x 1.5, 7 - 17 mm, Polyamide, Zone 1, 2, 21, 22 Core product

Art. No.: 243173
Product Type: 8573/13-210
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Entry 2 type: 8290/3-M25
Entry 1 type: 8161/7-M25-1707-LT
Rated operational current: 16 A
Subsitution for material: 151716
Product description: 16 A compact wall-mounting socket Extra-low voltage
Certificates: ATEX (PTB), IECEx (PTB), China (CQST)
Silicone-free: No
Colour code: violet
Coding (clock hour position): 10
Detailed number of poles: 2 P
Please select products you want to compare Compare
Ex Series 8573/13 16 A wall-mounting sockets, compact, with extra-low voltage R. STAHL

8573/13-212, 16 A compact wall-mounting socket, 40 ... 50 V AC Light grey, 2 P, 12 h, M25 x 1.5, 7 - 17 mm, Polyamide, Zone 1, 2, 21, 22 Core product

Art. No.: 243172
Product Type: 8573/13-212
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Entry 2 type: 8290/3-M25
Entry 1 type: 8161/7-M25-1707-LT
Rated operational current: 16 A
Subsitution for material: 151721
Product description: 16 A compact wall-mounting socket Extra-low voltage
Certificates: ATEX (PTB), IECEx (PTB), China (CQST)
Frequency range: 50 / 60 Hz
Silicone-free: No
Colour code: light grey
Coding (clock hour position): 12
Detailed number of poles: 2 P
Please select products you want to compare Compare
Ex Series 8573/13 16 A wall-mounting sockets, compact, with extra-low voltage R. STAHL

8573/13-300, 16 A compact wall-mounting socket, 20 ... 25 V AC Violet, 3 P, 0 h, M25 x 1.5, 7 - 17 mm, Polyamide, Zone 1, 2, 21, 22 Core product

Art. No.: 241380
Product Type: 8573/13-300
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Entry 2 type: 8290/3-M25
Entry 1 type: 8161/7-M25-1707-LT
Rated operational current: 16 A
Subsitution for material: 151704
Product description: 16 A compact wall-mounting socket Extra-low voltage
Certificates: ATEX (PTB), IECEx (PTB), China (CQST)
Frequency range: 50 / 60 Hz
Silicone-free: No
Colour code: violet
Coding (clock hour position): 0
Detailed number of poles: 3 P
Please select products you want to compare Compare
Ex Series 8573/13 16 A wall-mounting sockets, compact, with extra-low voltage R. STAHL

8573/13-312, 16 A compact wall-mounting socket, 40 ... 50 V AC Light grey, 3 P, 12 h, M25 x 1.5, 7 - 17 mm, Polyamide, Zone 1, 2, 21, 22 Core product

Art. No.: 243155
Product Type: 8573/13-312
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Entry 2 type: 8290/3-M25
Entry 1 type: 8161/7-M25-1707-LT
Rated operational current: 16 A
Subsitution for material: 151706
Product description: 16 A compact wall-mounting socket Extra-low voltage
Certificates: ATEX (PTB), IECEx (PTB), China (CQST)
Frequency range: 50 / 60 Hz
Silicone-free: No
Colour code: light grey
Coding (clock hour position): 12
Detailed number of poles: 3 P
Please select products you want to compare Compare
Ex Wall-mounting Sockets, Compact, Extra-low Voltage Series 8573/13 R. STAHL

8573/13-211, 16 A compact wall-mounting socket, 20 ... 25 & 40 ... 50 V AC Green, 2 P, 11 h, M25 x 1.5, 7 - 17 mm, Polyamide, Zone 1, 2, 21, 22

Art. No.: 243171
Product Type: 8573/13-211
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Entry 2 type: 8290/3-M25
Entry 1 type: 8161/7-M25-1707-LT
Rated operational current: 12 A
Subsitution for material: 151739
Product description: 16 A compact wall-mounting socket Extra-low voltage
Certificates: ATEX (PTB), IECEx (PTB), China (CQST)
Frequency range: > 400 - 500 Hz
Silicone-free: No
Colour code: green
Coding (clock hour position): 11
Detailed number of poles: 2 P
Please select products you want to compare Compare
Ex Wall-mounting Sockets, Compact, Extra-low Voltage Series 8573/13 R. STAHL

8573/13-204, 16 A compact wall-mounting socket, 20 ... 25 & 40 ... 50 V AC Green, 2 P, 4 h, M25 x 1.5, 7 - 17 mm, Polyamide, Zone 1, 2, 21, 22

Art. No.: 243160
Product Type: 8573/13-204
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Entry 2 type: 8290/3-M25
Entry 1 type: 8161/7-M25-1707-LT
Rated operational current: 12 A
Subsitution for material: 151737
Product description: 16 A compact wall-mounting socket Extra-low voltage
Certificates: ATEX (PTB), IECEx (PTB), China (CQST)
Frequency range: 100 - 200 Hz
Silicone-free: No
Colour code: green
Coding (clock hour position): 4
Detailed number of poles: 2 P
Please select products you want to compare Compare
Ex Wall-mounting Sockets, Compact, Extra-low Voltage Series 8573/13 R. STAHL

8573/13-203, 16 A compact wall-mounting socket, 20 ... 25 & 40 ... 50 V AC Green, 2 P, 3 h, M25 x 1.5, 7 - 17 mm, Polyamide, Zone 1, 2, 21, 22

Art. No.: 243159
Product Type: 8573/13-203
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Entry 2 type: 8290/3-M25
Entry 1 type: 8161/7-M25-1707-LT
Rated operational current: 12 A
Subsitution for material: 151734
Product description: 16 A compact wall-mounting socket Extra-low voltage
Certificates: ATEX (PTB), IECEx (PTB), China (CQST)
Frequency range: 400 Hz
Silicone-free: No
Colour code: green
Coding (clock hour position): 3
Detailed number of poles: 2 P
Please select products you want to compare Compare
Ex Wall-mounting Sockets, Compact, Extra-low Voltage Series 8573/13 R. STAHL

8573/13-202, 16 A compact wall-mounting socket, 20 ... 25 & 40 ... 50 V AC Green, 2 P, 2 h, M25 x 1.5, 7 - 17 mm, Polyamide, Zone 1, 2, 21, 22

Art. No.: 243158
Product Type: 8573/13-202
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Entry 2 type: 8290/3-M25
Entry 1 type: 8161/7-M25-1707-LT
Rated operational current: 12 A
Subsitution for material: 151727
Product description: 16 A compact wall-mounting socket Extra-low voltage
Certificates: ATEX (PTB), IECEx (PTB), China (CQST)
Frequency range: 300 Hz
Silicone-free: No
Colour code: green
Coding (clock hour position): 2
Detailed number of poles: 2 P
Please select products you want to compare Compare
Ex Wall-mounting Sockets, Compact, Extra-low Voltage Series 8573/13 R. STAHL

8573/13-311, 16 A compact wall-mounting socket, 20 ... 25 & 40 ... 50 V AC Green, 3 P, 11 h, M25 x 1.5, 7 - 17 mm, Polyamide, Zone 1, 2, 21, 22

Art. No.: 243154
Product Type: 8573/13-311
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Entry 2 type: 8290/3-M25
Entry 1 type: 8161/7-M25-1707-LT
Rated operational current: 12 A
Subsitution for material: 151701
Product description: 16 A compact wall-mounting socket Extra-low voltage
Certificates: ATEX (PTB), IECEx (PTB), China (CQST)
Frequency range: > 400 - 500 Hz
Silicone-free: No
Colour code: green
Coding (clock hour position): 11
Detailed number of poles: 3 P
Please select products you want to compare Compare
Ex Wall-mounting Sockets, Compact, Extra-low Voltage Series 8573/13 R. STAHL

8573/13-304, 16 A compact wall-mounting socket, 20 ... 25 & 40 ... 50 V AC Green, 3 P, 4 h, M25 x 1.5, 7 - 17 mm, Polyamide, Zone 1, 2, 21, 22

Art. No.: 243153
Product Type: 8573/13-304
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Entry 2 type: 8290/3-M25
Entry 1 type: 8161/7-M25-1707-LT
Rated operational current: 12 A
Subsitution for material: 151697
Product description: 16 A compact wall-mounting socket Extra-low voltage
Certificates: ATEX (PTB), IECEx (PTB), China (CQST)
Frequency range: 100 - 200 Hz
Silicone-free: No
Colour code: green
Coding (clock hour position): 4
Detailed number of poles: 3 P
Please select products you want to compare Compare
Ex Wall-mounting Sockets, Compact, Extra-low Voltage Series 8573/13 R. STAHL

8573/13-303, 16 A compact wall-mounting socket, 20 ... 25 & 40 ... 50 V AC Green, 3 P, 3 h, M25 x 1.5, 7 - 17 mm, Polyamide, Zone 1, 2, 21, 22

Art. No.: 243152
Product Type: 8573/13-303
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Entry 2 type: 8290/3-M25
Entry 1 type: 8161/7-M25-1707-LT
Rated operational current: 12 A
Subsitution for material: 151693
Product description: 16 A compact wall-mounting socket Extra-low voltage
Certificates: ATEX (PTB), IECEx (PTB), China (CQST)
Frequency range: 400 Hz
Silicone-free: No
Colour code: green
Coding (clock hour position): 3
Detailed number of poles: 3 P
Please select products you want to compare Compare
Ex Wall-mounting Sockets, Compact, Extra-low Voltage Series 8573/13 R. STAHL

8573/13-302, 16 A compact wall-mounting socket, 20 ... 25 & 40 ... 50 V AC Green, 3 P, 2 h, M25 x 1.5, 7 - 17 mm, Polyamide, Zone 1, 2, 21, 22

Art. No.: 241384
Product Type: 8573/13-302
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Entry 2 type: 8290/3-M25
Entry 1 type: 8161/7-M25-1707-LT
Rated operational current: 12 A
Subsitution for material: 151687
Product description: 16 A compact wall-mounting socket Extra-low voltage
Certificates: ATEX (PTB), IECEx (PTB), China (CQST)
Frequency range: 300 Hz
Silicone-free: No
Colour code: green
Coding (clock hour position): 2
Detailed number of poles: 3 P
