Series 8573/14 16 A extra-low voltage coupling

The new R. STAHL Series 8573/14 couplings are designed for 2- or 3-pole applications up to 16 A for extra-low voltages up to 50 V. The robust, chemical-resistant plastic allows for a compact design. Self-cleaning lamellar contacts provide optimum contact. The integrated rotary switch mechanism and the integrated locking device reliably prevent the plugs from disconnecting under load.

  • Large temperature range of use
  • High mechanical impact and shock resistance
  • Perfect protection against penetration of liquids and dusts
  • 3D data for download on the website

Filter product lines

hide
Certificates
Product Description
Rated operational current
Frequency range
Min. ambient temperature
Max. ambient temperature
Silicone-free
Colour code
Coding (clock hour position)​
Detailed number of poles
Subsitution for material

13 Products

Please select products you want to compare Compare
Ex Coupler, Extra-low Voltage 16 A Series 8573/14 R. STAHL

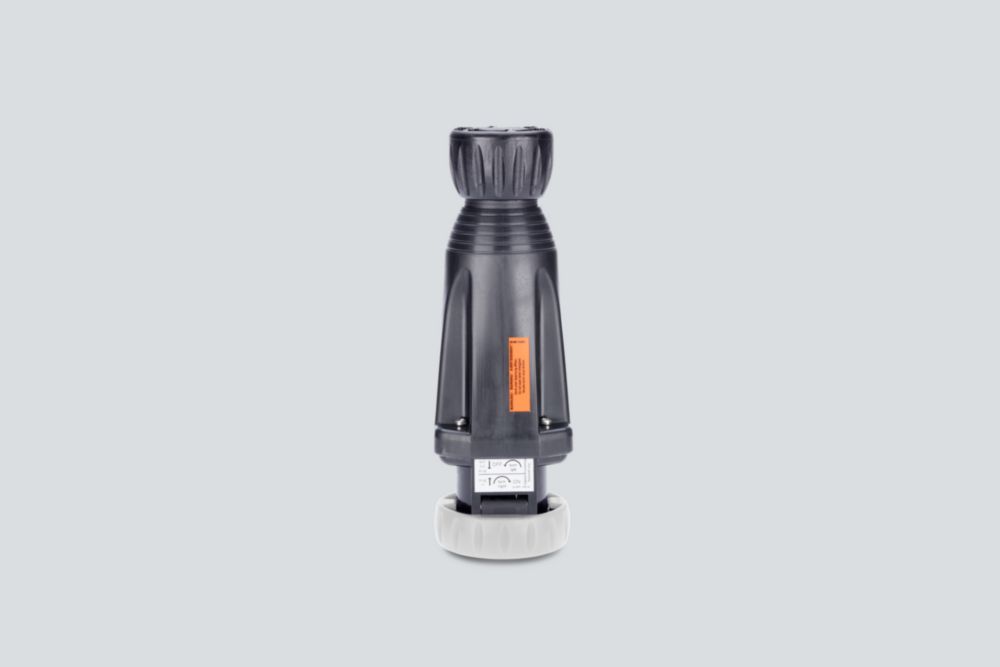

8573/14-212, 16 A compact coupling, 40 ... 50 V AC Light grey, 2 P, 12 h, 8 - 15 mm, Polyamide, Zone 1, 2, 21, 22

Art. No.: 243187
Product Type: 8573/14-212
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Rated operational current: 16 A
Subsitution for material: 151611
Product description: 16 A compact coupling Extra-low voltage
Certificates: ATEX (PTB), IECEx (PTB), China (CQST)
Frequency range: 50 / 60 Hz
Silicone-free: No
Colour code: light grey
Coding (clock hour position): 12
Detailed number of poles: 2 P
Please select products you want to compare Compare
Ex Series 8573/14 16 A extra-low voltage coupling R. STAHL

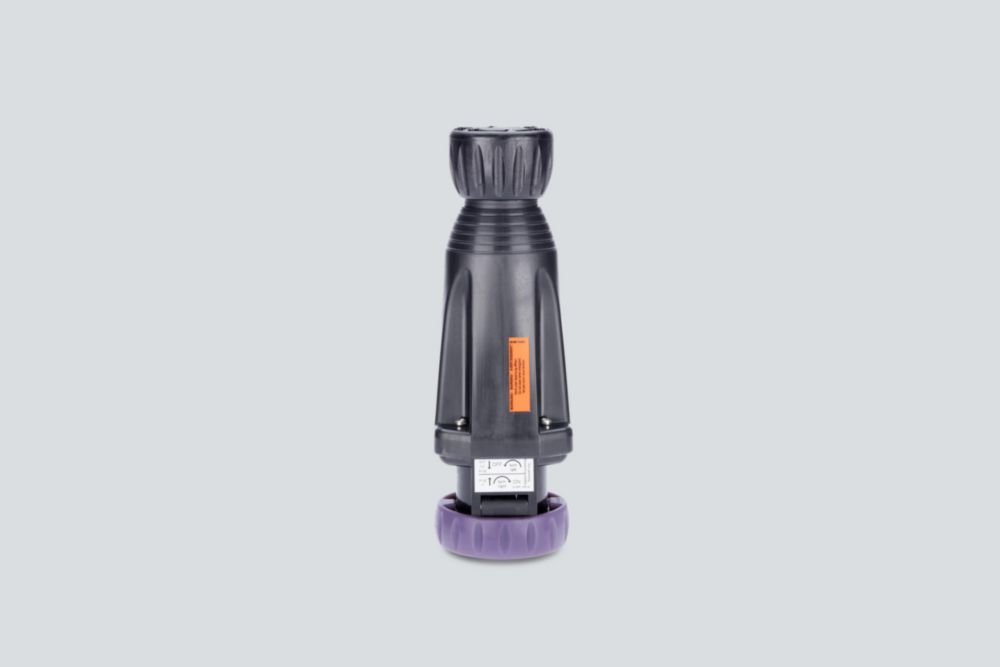

8573/14-210, 16 A compact coupling, 20 ... 25 V DC Violet, 2 P, 10 h, 8 - 15 mm, Polyamide, Zone 1, 2, 21, 22

Art. No.: 243188
Product Type: 8573/14-210
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Rated operational current: 16 A
Subsitution for material: 151605
Product description: 16 A compact coupling Extra-low voltage
Certificates: ATEX (PTB), IECEx (PTB), China (CQST)
Silicone-free: No
Colour code: violet
Coding (clock hour position): 10
Detailed number of poles: 2 P
Please select products you want to compare Compare
Ex Series 8573/14 16 A extra-low voltage coupling R. STAHL

8573/14-200, 16 A compact coupling, 20 ... 25 V AC Violet, 2 P, 0 h, 8 - 15 mm, Polyamide, Zone 1, 2, 21, 22

Art. No.: 243182
Product Type: 8573/14-200
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Rated operational current: 16 A
Subsitution for material: 151598
Product description: 16 A compact coupling Extra-low voltage
Certificates: ATEX (PTB), IECEx (PTB), China (CQST)
Frequency range: 50 / 60 Hz
Silicone-free: No
Colour code: violet
Coding (clock hour position): 0
Detailed number of poles: 2 P
Please select products you want to compare Compare
Ex Coupler, Extra-low Voltage 16 A Series 8573/14 R. STAHL

8573/14-312, 16 A compact coupling, 40 ... 50 V AC Light grey, 3 P, 12 h, 8 - 15 mm, Polyamide, Zone 1, 2, 21, 22

Art. No.: 243180
Product Type: 8573/14-312
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Rated operational current: 16 A
Subsitution for material: 151591
Product description: 16 A compact coupling Extra-low voltage
Certificates: ATEX (PTB), IECEx (PTB), China (CQST)
Frequency range: 50 / 60 Hz
Silicone-free: No
Colour code: light grey
Coding (clock hour position): 12
Detailed number of poles: 3 P
Please select products you want to compare Compare
Ex Series 8573/14 16 A extra-low voltage coupling R. STAHL

8573/14-300, 16 A compact coupling, 20 ... 25 V AC Violet, 3 P, 0 h, 8 - 15 mm, Polyamide, Zone 1, 2, 21, 22

Art. No.: 243175
Product Type: 8573/14-300
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Rated operational current: 16 A
Subsitution for material: 151583
Product description: 16 A compact coupling Extra-low voltage
Certificates: ATEX (PTB), IECEx (PTB), China (CQST)
Frequency range: 50 / 60 Hz
Silicone-free: No
Colour code: violet
Coding (clock hour position): 0
Detailed number of poles: 3 P
Please select products you want to compare Compare
Ex Coupler, Extra-low Voltage 16 A Series 8573/14 R. STAHL

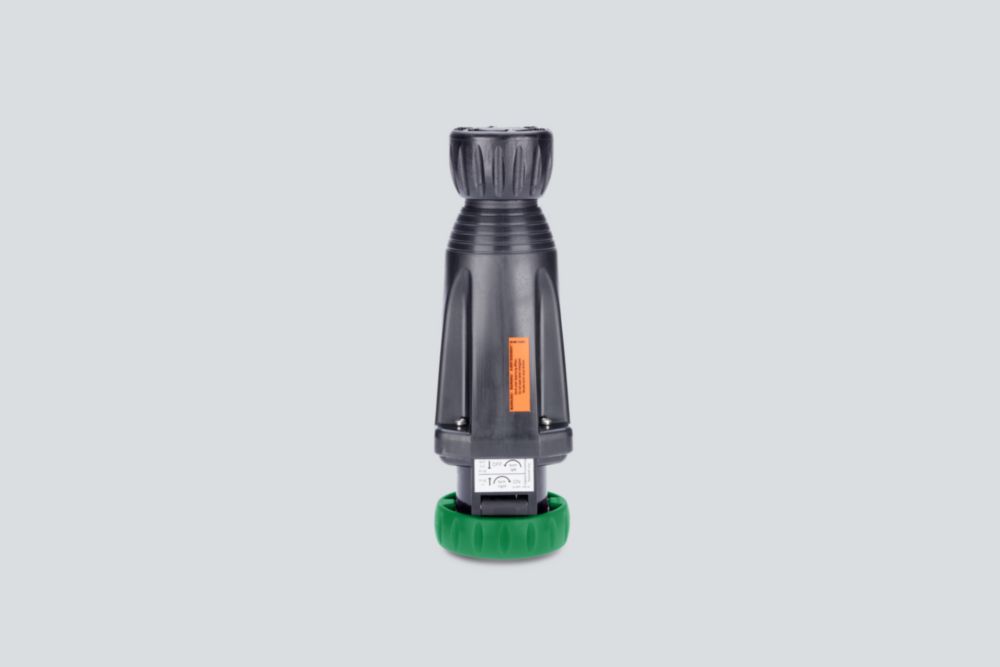

8573/14-211, 16 A compact coupling, 20 ... 25 & 40 ... 50 V AC Green, 2 P, 11 h, 8 - 15 mm, Polyamide, Zone 1, 2, 21, 22

Art. No.: 243186
Product Type: 8573/14-211
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Rated operational current: 12 A
Subsitution for material: 151633
Product description: 16 A compact coupling Extra-low voltage
Certificates: ATEX (PTB), IECEx (PTB), China (CQST)
Frequency range: > 400 - 500 Hz
Silicone-free: No
Colour code: green
Coding (clock hour position): 11
Detailed number of poles: 2 P
Please select products you want to compare Compare
Ex Coupler, Extra-low Voltage 16 A Series 8573/14 R. STAHL

8573/14-204, 16 A compact coupling, 20 ... 25 & 40 ... 50 V AC Green, 2 P, 4 h, 8 - 15 mm, Polyamide, Zone 1, 2, 21, 22

Art. No.: 243185
Product Type: 8573/14-204
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Rated operational current: 12 A
Subsitution for material: 151628
Product description: 16 A compact coupling Extra-low voltage
Certificates: ATEX (PTB), IECEx (PTB), China (CQST)
Frequency range: 100 - 200 Hz
Silicone-free: No
Colour code: green
Coding (clock hour position): 4
Detailed number of poles: 2 P
Please select products you want to compare Compare
Ex Coupler, Extra-low Voltage 16 A Series 8573/14 R. STAHL

8573/14-203, 16 A compact coupling, 20 ... 25 & 40 ... 50 V AC Green, 2 P, 3 h, 8 - 15 mm, Polyamide, Zone 1, 2, 21, 22

Art. No.: 243184
Product Type: 8573/14-203
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Rated operational current: 12 A
Subsitution for material: 151622
Product description: 16 A compact coupling Extra-low voltage
Certificates: ATEX (PTB), IECEx (PTB), China (CQST)
Frequency range: 400 Hz
Silicone-free: No
Colour code: green
Coding (clock hour position): 3
Detailed number of poles: 2 P
Please select products you want to compare Compare
Ex Coupler, Extra-low Voltage 16 A Series 8573/14 R. STAHL

8573/14-202, 16 A compact coupling, 20 ... 25 & 40 ... 50 V AC Green, 2 P, 2 h, 8 - 15 mm, Polyamide, Zone 1, 2, 21, 22

Art. No.: 243183
Product Type: 8573/14-202
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Rated operational current: 12 A
Subsitution for material: 151616
Product description: 16 A compact coupling Extra-low voltage
Certificates: ATEX (PTB), IECEx (PTB), China (CQST)
Frequency range: 300 Hz
Silicone-free: No
Colour code: green
Coding (clock hour position): 2
Detailed number of poles: 2 P
Please select products you want to compare Compare
Ex Coupler, Extra-low Voltage 16 A Series 8573/14 R. STAHL

8573/14-311, 16 A compact coupling, 20 ... 25 & 40 ... 50 V AC Green, 3 P, 11 h, 8 - 15 mm, Polyamide, Zone 1, 2, 21, 22

Art. No.: 243179
Product Type: 8573/14-311
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Rated operational current: 12 A
Subsitution for material: 151575
Product description: 16 A compact coupling Extra-low voltage
Certificates: ATEX (PTB), IECEx (PTB), China (CQST)
Frequency range: > 400 - 500 Hz
Silicone-free: No
Colour code: green
Coding (clock hour position): 11
Detailed number of poles: 3 P
Please select products you want to compare Compare
Ex Coupler, Extra-low Voltage 16 A Series 8573/14 R. STAHL

8573/14-304, 16 A compact coupling, 20 ... 25 & 40 ... 50 V AC Green, 3 P, 4 h, 8 - 15 mm, Polyamide, Zone 1, 2, 21, 22

Art. No.: 243178
Product Type: 8573/14-304
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Rated operational current: 12 A
Subsitution for material: 151567
Product description: 16 A compact coupling Extra-low voltage
Certificates: ATEX (PTB), IECEx (PTB), China (CQST)
Frequency range: 100 - 200 Hz
Silicone-free: No
Colour code: green
Coding (clock hour position): 4
Detailed number of poles: 3 P
Please select products you want to compare Compare
Ex Coupler, Extra-low Voltage 16 A Series 8573/14 R. STAHL

8573/14-303, 16 A compact coupling, 20 ... 25 & 40 ... 50 V AC Green, 3 P, 3 h, 8 - 15 mm, Polyamide, Zone 1, 2, 21, 22

Art. No.: 243177
Product Type: 8573/14-303
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Rated operational current: 12 A
Subsitution for material: 151558
Product description: 16 A compact coupling Extra-low voltage
Certificates: ATEX (PTB), IECEx (PTB), China (CQST)
Frequency range: 400 Hz
Silicone-free: No
Colour code: green
Coding (clock hour position): 3
Detailed number of poles: 3 P
Please select products you want to compare Compare
Ex Coupler, Extra-low Voltage 16 A Series 8573/14 R. STAHL

8573/14-302, 16 A compact coupling, 20 ... 25 & 40 ... 50 V AC Green, 3 P, 2 h, 8 - 15 mm, Polyamide, Zone 1, 2, 21, 22

Art. No.: 243176
Product Type: 8573/14-302
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Rated operational current: 12 A
Subsitution for material: 151549
Product description: 16 A compact coupling Extra-low voltage
Certificates: ATEX (PTB), IECEx (PTB), China (CQST)
Frequency range: 300 Hz
Silicone-free: No
Colour code: green
Coding (clock hour position): 2
Detailed number of poles: 3 P
