Wall-mounting sockets 32 A Series 8571/11

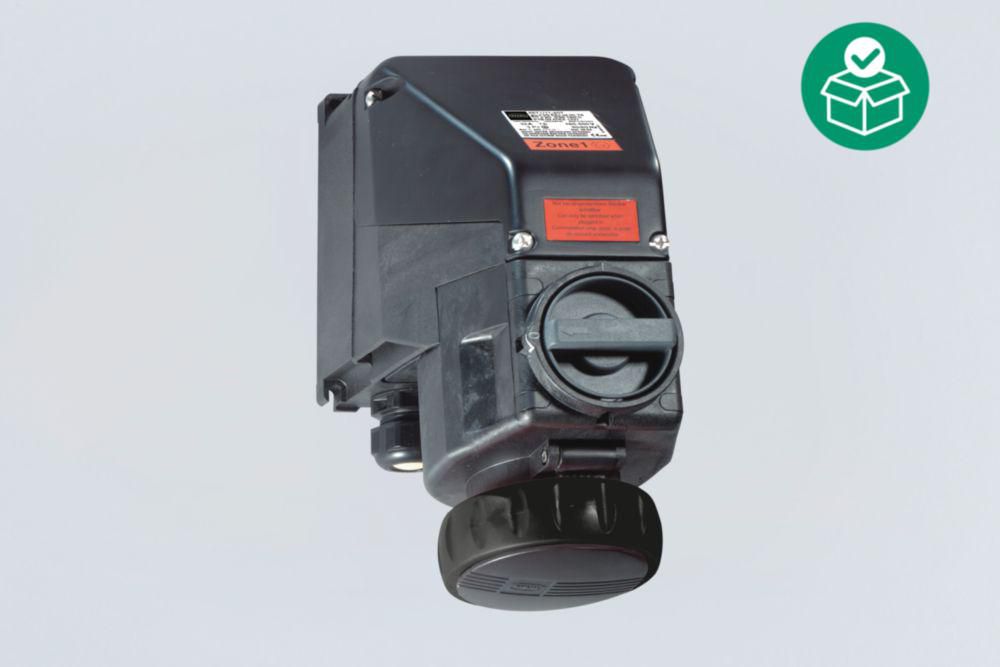

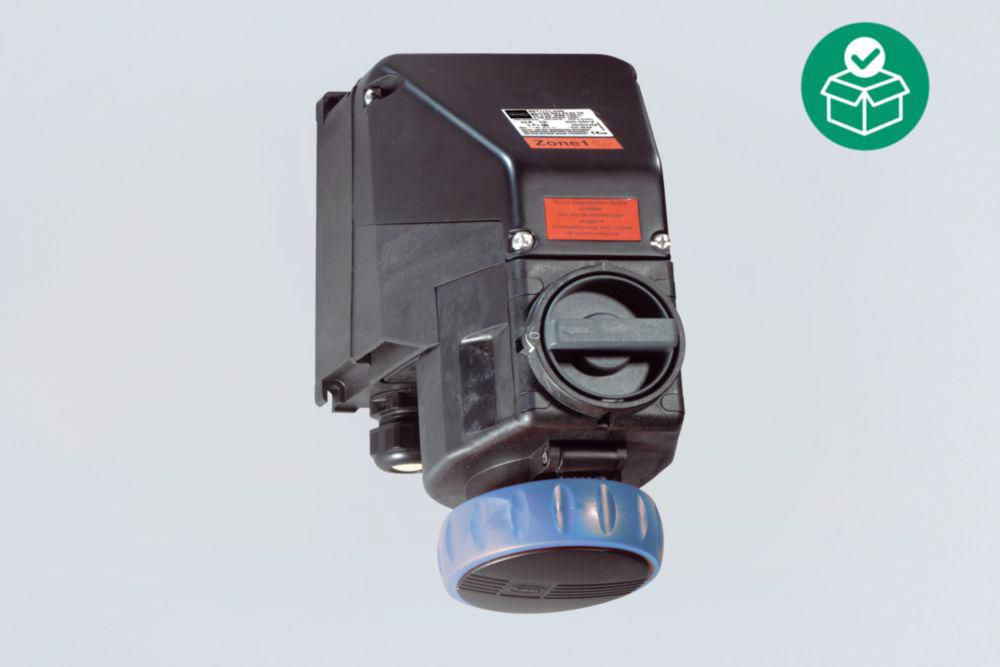

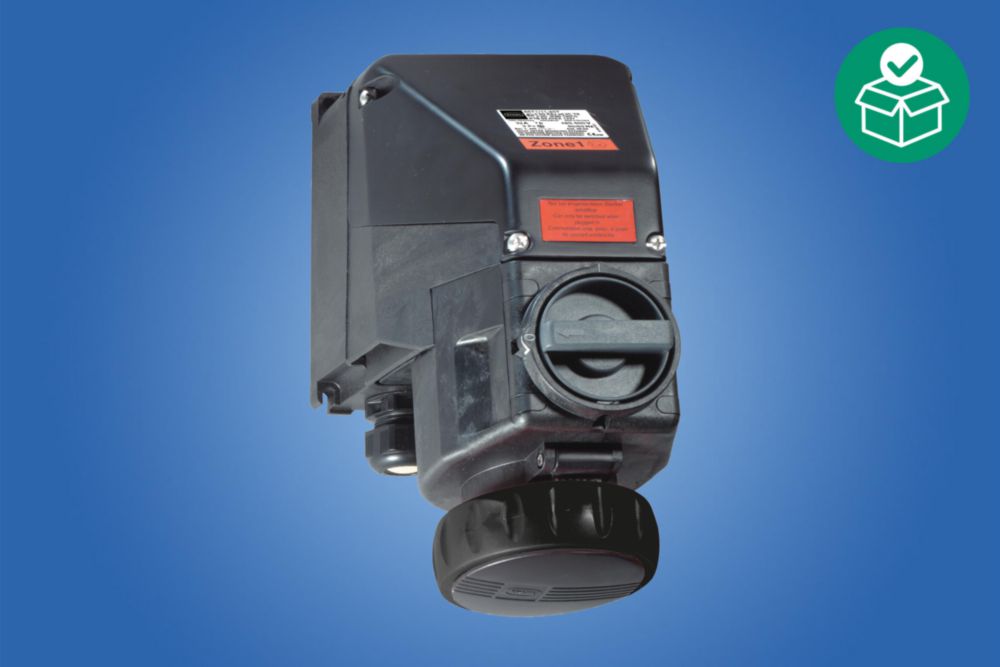

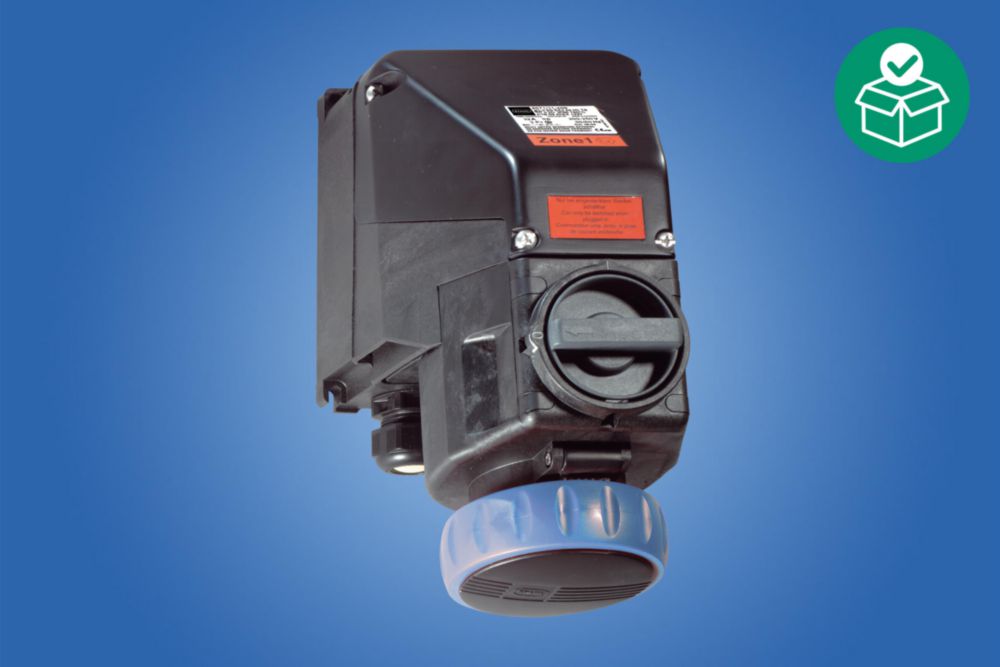

The R. STAHL 8571/11 series SolConeX sockets for Zone 1/21 in 4- and 5-pole versions have full AC-3 switching capacity up to 32 A. The high degree of protection IP66 ensures maximum protection against the ingress of dust and/or water in any application situation. Self-cleaning lamellar contacts provide optimum contact and the plugs can be inserted and removed in the zero position quickly and easily. The load disconnect switch, with mechanical locking device and a handle that can be locked in the 0 or I position, is an additional safety feature.
Further product options available:
- Further voltage ranges according to EN 60309
- Silicone-free versions
- Ex e or Ex i auxiliary contacts for control and signalling purposes ‒ can also be retrofitted
- With NAMUR resistor circuitry
- External earth connection
- Customer-specific label plates
- Plates also in stainless steel
- Additional entries ‒ also in metal

  • Different voltage ranges according to EN 60309
  • Large temperature range of use
  • High mechanical impact and shock resistance
  • Perfect protection against penetration of liquids and dusts
  • 3D data for download on the website
  • Variants for use in USA/Canada available on request

Filter product lines

hide
Certificates
Product Description
Rated operational current
Frequency range
Min. ambient temperature
Max. ambient temperature
Silicone-free
Colour code
Coding (clock hour position)​
Detailed number of poles
Entry type 1
Entry 2 type

14 Products

Please select products you want to compare Compare
Ex Series 7571/11 32 A wall-mounting sockets R. STAHL

Wall-mounting sockets 32 A Series 8571/11

Art. No.: 276197
Product Type: 8571/11-411-S-01-0-00-XXX
min. ambient temperature: -50 °C
Entry 2 type: 8290/3-M32
max. ambient temperature: +25 °C
Entry 1 type: 8161/7-M32-2109-LT
Rated operational current: 32 A
Product description: 32 A wall-mounting socket
Certificates: ATEX (PTB), IECEx (PTB), Korea (KTL), China (CQST), India (PESO), Brazil (ULB), Taiwan (ITRI)
Frequency range: 60 Hz
Silicone-free: No
Colour code: red
Coding (clock hour position): 11
Detailed number of poles: 3 P + PE
Please select products you want to compare Compare
Ex Series 7571/11 32 A wall-mounting sockets R. STAHL

Wall-mounting sockets 32 A Series 8571/11

Art. No.: 276194
Product Type: 8571/11-407-S-01-0-00-XXX
min. ambient temperature: -50 °C
Entry 2 type: 8290/3-M32
max. ambient temperature: +25 °C
Entry 1 type: 8161/7-M32-2109-LT
Rated operational current: 32 A
Product description: 32 A wall-mounting socket
Certificates: ATEX (PTB), IECEx (PTB), Korea (KTL), China (CQST), India (PESO), Brazil (ULB), Taiwan (ITRI)
Frequency range: 50 / 60 Hz
Silicone-free: No
Colour code: black
Coding (clock hour position): 7
Detailed number of poles: 3 P + PE
Please select products you want to compare Compare
Ex Series 7571/11 32 A wall-mounting sockets R. STAHL

Wall-mounting sockets 32 A Series 8571/11

Art. No.: 276195
Product Type: 8571/11-409-S-01-0-00-XXX
min. ambient temperature: -50 °C
Entry 2 type: 8290/3-M32
max. ambient temperature: +25 °C
Entry 1 type: 8161/7-M32-2109-LT
Rated operational current: 32 A
Product description: 32 A wall-mounting socket
Certificates: ATEX (PTB), IECEx (PTB), Korea (KTL), China (CQST), India (PESO), Brazil (ULB), Taiwan (ITRI)
Frequency range: 50 / 60 Hz
Silicone-free: No
Colour code: blue
Coding (clock hour position): 9
Detailed number of poles: 3 P + PE
Please select products you want to compare Compare
Ex Series 8571/11 (discontinued) 32 A wall-mounting sockets R. STAHL

Wall-mounting sockets 32 A Series 8571/11

Art. No.: 276196
Product Type: 8571/11-410-S-01-0-00-XXX
min. ambient temperature: -50 °C
Entry 2 type: 8290/3-M32
max. ambient temperature: +25 °C
Entry 1 type: 8161/7-M32-2109-LT
Rated operational current: 25 A
Product description: 32 A wall-mounting socket
Certificates: ATEX (PTB), IECEx (PTB), Korea (KTL), China (CQST), India (PESO), Brazil (ULB), Taiwan (ITRI)
Frequency range: 100 - 300 Hz
Silicone-free: No
Colour code: green
Coding (clock hour position): 10
Detailed number of poles: 3 P + PE
Please select products you want to compare Compare
Ex Series 7571/11 32 A wall-mounting sockets R. STAHL

Wall-mounting sockets 32 A Series 8571/11

Art. No.: 276180
Product Type: 8571/11-509-S-01-0-00-XXX
min. ambient temperature: -50 °C
Entry 2 type: 8290/3-M32
max. ambient temperature: +25 °C
Entry 1 type: 8161/7-M32-2109-LT
Rated operational current: 32 A
Product description: 32 A wall-mounting socket
Certificates: ATEX (PTB), IECEx (PTB), Korea (KTL), China (CQST), India (PESO), Brazil (ULB), Taiwan (ITRI)
Frequency range: 50 / 60 Hz
Silicone-free: No
Colour code: blue
Coding (clock hour position): 9
Detailed number of poles: 3 P + N + PE
Please select products you want to compare Compare
Ex Series 7571/11 32 A wall-mounting sockets R. STAHL

Wall-mounting sockets 32 A Series 8571/11

Art. No.: 276179
Product Type: 8571/11-507-S-01-0-00-XXX
min. ambient temperature: -50 °C
Entry 2 type: 8290/3-M32
max. ambient temperature: +25 °C
Entry 1 type: 8161/7-M32-2109-LT
Rated operational current: 32 A
Product description: 32 A wall-mounting socket
Certificates: ATEX (PTB), IECEx (PTB), Korea (KTL), China (CQST), India (PESO), Brazil (ULB), Taiwan (ITRI)
Frequency range: 50 / 60 Hz
Silicone-free: No
Colour code: black
Coding (clock hour position): 7
Detailed number of poles: 3 P + N + PE
Please select products you want to compare Compare
Ex Series 7571/11 32 A wall-mounting sockets R. STAHL

Wall-mounting sockets 32 A Series 8571/11

Art. No.: 276191
Product Type: 8571/11-511-S-01-0-00-XXX
min. ambient temperature: -50 °C
Entry 2 type: 8290/3-M32
max. ambient temperature: +25 °C
Entry 1 type: 8161/7-M32-2109-LT
Rated operational current: 32 A
Product description: 32 A wall-mounting socket
Certificates: ATEX (PTB), IECEx (PTB), Korea (KTL), China (CQST), India (PESO), Brazil (ULB), Taiwan (ITRI)
Frequency range: 60 Hz
Silicone-free: No
Colour code: red
Coding (clock hour position): 11
Detailed number of poles: 3 P + N + PE
Please select products you want to compare Compare
Ex Series 7571/11 32 A wall-mounting sockets R. STAHL

Wall-mounting sockets 32 A Series 8571/11

Art. No.: 276192
Product Type: 8571/11-405-S-01-0-00-XXX
min. ambient temperature: -50 °C
Entry 2 type: 8290/3-M32
max. ambient temperature: +25 °C
Entry 1 type: 8161/7-M32-2109-LT
Rated operational current: 32 A
Product description: 32 A wall-mounting socket
Certificates: ATEX (PTB), IECEx (PTB), Korea (KTL), China (CQST), India (PESO), Brazil (ULB), Taiwan (ITRI)
Frequency range: 50 / 60 Hz
Silicone-free: No
Colour code: black
Coding (clock hour position): 5
Detailed number of poles: 3 P + PE
Please select products you want to compare Compare
Ex Series 7571/11 32 A wall-mounting sockets R. STAHL

Wall-mounting sockets 32 A Series 8571/11

Art. No.: 276193
Product Type: 8571/11-406-S-01-0-00-XXX
min. ambient temperature: -50 °C
Entry 2 type: 8290/3-M32
max. ambient temperature: +25 °C
Entry 1 type: 8161/7-M32-2109-LT
Rated operational current: 32 A
Product description: 32 A wall-mounting socket
Certificates: ATEX (PTB), IECEx (PTB), Korea (KTL), China (CQST), India (PESO), Brazil (ULB), Taiwan (ITRI)
Frequency range: 50 / 60 Hz
Silicone-free: No
Colour code: red
Coding (clock hour position): 6
Detailed number of poles: 3 P + PE
Please select products you want to compare Compare
Ex Series 8571/11 (discontinued) 32 A wall-mounting sockets R. STAHL

Wall-mounting sockets 32 A Series 8571/11

Art. No.: 276176
Product Type: 8571/11-504-S-01-0-00-XXX
min. ambient temperature: -50 °C
Entry 2 type: 8290/3-M32
max. ambient temperature: +25 °C
Entry 1 type: 8161/7-M32-2109-LT
Rated operational current: 32 A
Product description: 32 A wall-mounting socket
Certificates: ATEX (PTB), IECEx (PTB), Korea (KTL), China (CQST), India (PESO), Brazil (ULB), Taiwan (ITRI)
Frequency range: 50 / 60 Hz
Silicone-free: No
Colour code: yellow
Coding (clock hour position): 4
Detailed number of poles: 3 P + N + PE
Please select products you want to compare Compare
Ex Series 7571/11 32 A wall-mounting sockets R. STAHL

Wall-mounting sockets 32 A Series 8571/11

Art. No.: 276177
Product Type: 8571/11-505-S-01-0-00-XXX
min. ambient temperature: -50 °C
Entry 2 type: 8290/3-M32
max. ambient temperature: +25 °C
Entry 1 type: 8161/7-M32-2109-LT
Rated operational current: 32 A
Product description: 32 A wall-mounting socket
Certificates: ATEX (PTB), IECEx (PTB), Korea (KTL), China (CQST), India (PESO), Brazil (ULB), Taiwan (ITRI)
Frequency range: 50 / 60 Hz
Silicone-free: No
Colour code: black
Coding (clock hour position): 5
Detailed number of poles: 3 P + N + PE
Please select products you want to compare Compare
Ex Series 7571/11 32 A wall-mounting sockets R. STAHL

Wall-mounting sockets 32 A Series 8571/11

Art. No.: 276178
Product Type: 8571/11-506-S-01-0-00-XXX
min. ambient temperature: -50 °C
Entry 2 type: 8290/3-M32
max. ambient temperature: +25 °C
Entry 1 type: 8161/7-M32-2109-LT
Rated operational current: 32 A
Product description: 32 A wall-mounting socket
Certificates: ATEX (PTB), IECEx (PTB), Korea (KTL), China (CQST), India (PESO), Brazil (ULB), Taiwan (ITRI)
Frequency range: 50 / 60 Hz
Silicone-free: No
Colour code: red
Coding (clock hour position): 6
Detailed number of poles: 3 P + N + PE
Please select products you want to compare Compare
Ex Series 7571/11 32 A wall-mounting sockets R. STAHL

Wall-mounting sockets 32 A Series 8571/11

Art. No.: 276175
Product Type: 8571/11-503-S-01-0-00-XXX
min. ambient temperature: -50 °C
Entry 2 type: 8290/3-M32
max. ambient temperature: +25 °C
Entry 1 type: 8161/7-M32-2109-LT
Rated operational current: 32 A
Product description: 32 A wall-mounting socket
Certificates: ATEX (PTB), IECEx (PTB), Korea (KTL), China (CQST), India (PESO), Brazil (ULB), Taiwan (ITRI)
Frequency range: 50 Hz
Silicone-free: No
Colour code: red
Coding (clock hour position): 3
Detailed number of poles: 3 P + N + PE
Please select products you want to compare Compare
Ex Series 8571/11 (discontinued) 32 A wall-mounting sockets R. STAHL

Wall-mounting sockets 32 A Series 8571/11

Art. No.: 301434
Product Type: 8571/11-502-S-01-0-00-XXX
min. ambient temperature: -50 °C
Entry 2 type: 8290/3-M32
max. ambient temperature: +25 °C
Entry 1 type: 8161/7-M32-2109-LT
Rated operational current: 25 A
Product description: 32 A wall-mounting socket
Certificates: ATEX (PTB), IECEx (PTB), Korea (KTL), China (CQST), India (PESO), Brazil (ULB), Taiwan (ITRI)
Frequency range: > 300 - 500 Hz
Silicone-free: No
Colour code: green
Coding (clock hour position): 2
Detailed number of poles: 3 P + N + PE
