MAXIMUM LIGHT QUALITY – MINIMUM ENERGY CONSUMPTION
TRIED-AND-TESTED INNOVATION – 60% LOWER ENERGY COSTS
Reliable, efficient and sustainable – the EXLUX PRO 6002 linear luminaires from R. STAHL are setting new standards in industrial lighting! These ATEX- and IECEx-certified LED luminaires combine proven robustness with state-of-the-art technology and achieve market-leading efficiency of up to 168 lm/W. This saves you up to 60% energy compared to conventional luminaires – with the same light quality and luminous flux level you are used to.
The latest generation puts you in the best position for the future: The EXLUX PRO luminaires minimise operating costs, reduce CO₂ emissions and meet future requirements, for example through the use of wildlife-friendly light colours. Thanks to their versatility and backwards compatibility, they are perfect for existing installations and offer ultimate reliability – even under extreme conditions from -40 °C to +60 °C.
With the upgrade for greater efficiency, R. STAHL is setting new standards for sustainable lighting in industry. In typical applications, for instance production and storage buildings with 500 luminaires, the state-of-the-art LED technology saves more than 10,000 kWh of electrical energy per year – this is equal to the energy consumption of three detached houses. And that's not all – the CO₂ emissions are reduced by around four tonnes per building per year. This means maximum cost savings and active environmental protection at the same time!
Count on the future of industrial lighting today – with the efficient and sustainable EXLUX PRO luminaires from R. STAHL!
KNOWLEDGE2GO
How plant operators benefit from intelligent light management
Find out how intelligent light management systems not only increase energy efficiency but also reduce operating costs and improve safety.
You can find all of the details here!
LIGHTING IN HAZARDOUS AREAS, SOPHISTICATED AND WELL DESIGNED!
Our LED linear luminaires boast a DALI2 interface according to IEC 62386, which makes it possible to digitally network all luminaires in hazardous areas (Zones 1/21 and 2/22). The state-of-the-art light management system makes it possible to individually and synchronously control ballasts via the DALI protocol with around 200 programmable commands.
Depending on the application area, you can choose between a clear or sandblasted translucent cover – ideal for low ceilings or sensitive work environments.
EXLUX PRO 6002 – the highlights at a glance:
- Luminaire Efficiency: Up to 168 lm/W
- Backwards compatibility: Easy to retrofit without new cabling
- Glare reduction: Clear or sandblasted translucent cover
- Light colours: 4000K, 5000K, 6500K, 2700K (wildlife-friendly), as well as yellow, green or red
- Service temperature: -40 °C to +60 °C
- Durability: 90% luminous flux after 100,000 hours
- Certificates: ATEX and IECEx for Zone 1/21 and Zone 2/22
- DALI-compatible: Integration into digital light management systems
- Optional: Address module for operation with CBS Systems of R.STAHL
- One-for-one replacement for conventional luminaires: Luminous flux, light distribution and dimensions are precisely tailored
This is your path to a digital light solution in hazardous areas! Enjoy the benefits of digital networking and let our specialists help you with planning, programming and commissioning your light systems!

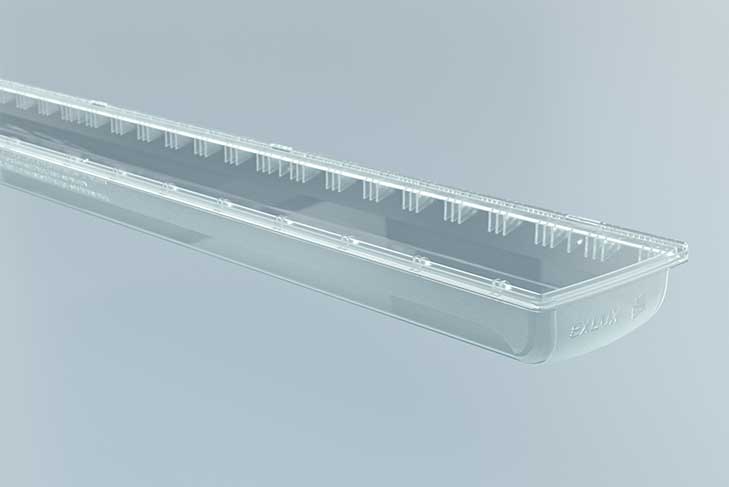

Hinged luminaire lenscover in transparent or opaque
Practical central lock with optional safety switch
Removable diffuser reduces the effects of glare

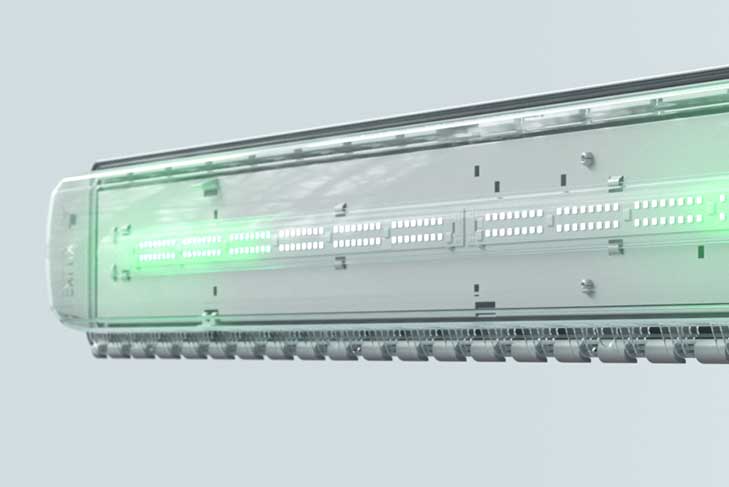

New LED technology for greater efficiency and reliability

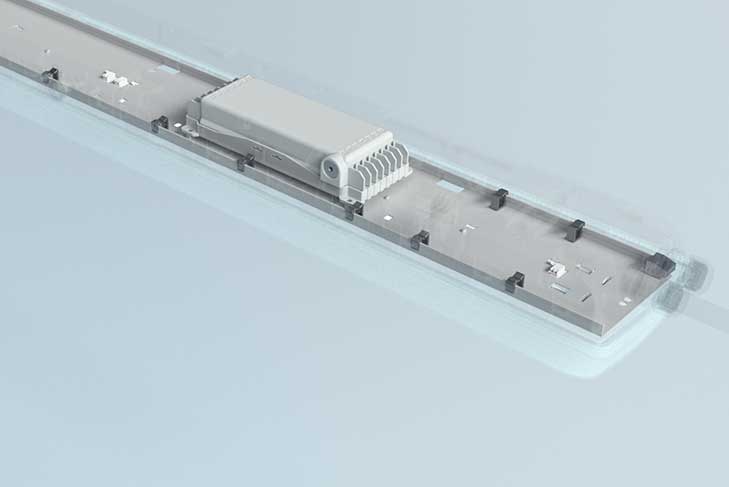

Push-in terminals for tool-free mounting

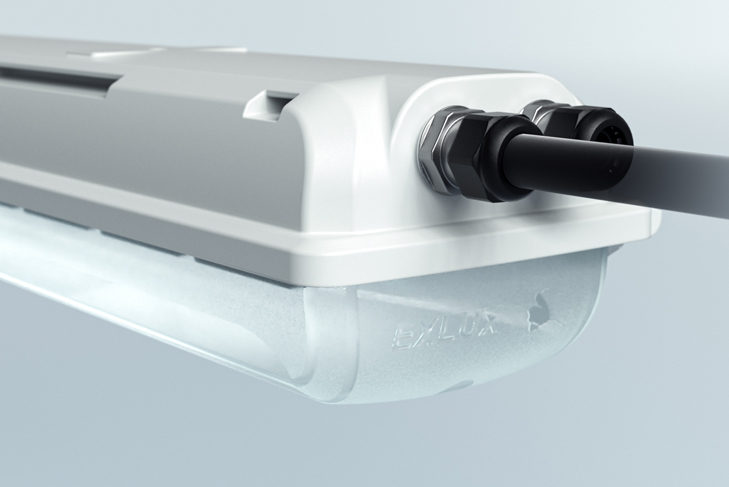

Internal 5-pole throughwiring - simple, quick installation

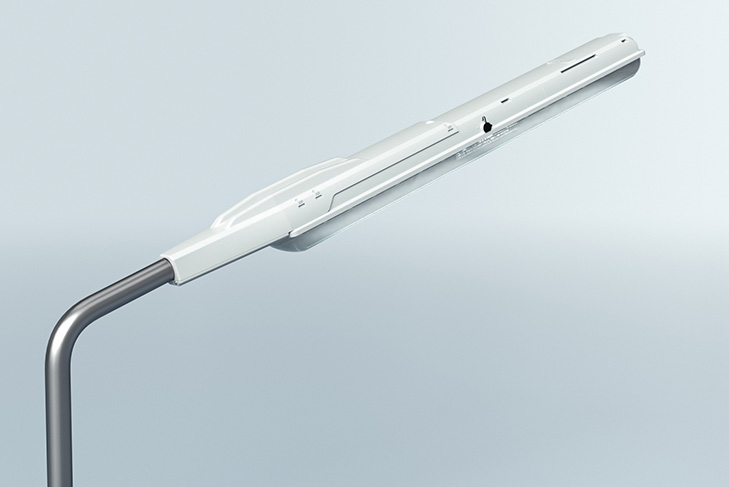

Versatile: ceiling-mounted, as a pendant or pole-mounted

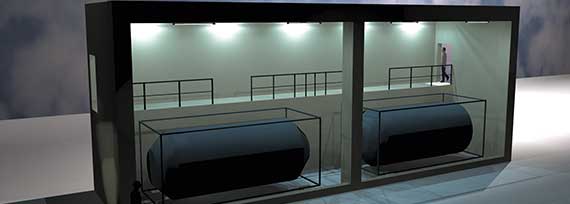

CERTAINTY WHEN PLANNING EXISTING PROJECTS
With the new EXLUX PRO luminaires, R. STAHL offers a future-proof solution for existing installations. Thanks to full compatibility in terms of mechanics and lighting technology, the existing cabling is retained unchanged – for simple and fast modernisation in compliance with standards.
The "plug & light" concept makes straightforward replacement possible without time-consuming recalculations or infrastructure changes. In this way, industrial lighting can be efficiently brought in line with the latest standards without interrupting operation or high investment costs.
Conclusion: With the upgrade to make the EXLUX PRO series of luminaires more efficient, R. STAHL offers a practical and sustainable solution boosting cutting-edge technology for industrial lighting in hazardous areas. Whether energy savings, sustainability or standard-compliant planning – the new EXLUX PRO luminaires make switching to state-of-the-art LED technology easier than ever before.
