pac-Bus terminal set ISpac - 160730

pac-Bus Series 9194
Art. No.: 160730

Product Type: 9194/50-01
Product description: pac-Bus terminal set ISpac
Zone Filter: Zone 2 | 3 G | Gc
Certificates: ATEX (BVS), Canada (FM), IECEx (BVS), India (PESO), USA (FM)
Connection type: Screw terminal
Country of origin: DE

Technical data

General

MY R. STAHL 9194A
Product variant Terminal set for pac-Bus
Product Type 9194/50-01
Product description pac-Bus terminal set ISpac
Highlights Reduced costs thanks to faster wiring of ISpac devices
Mounted and snapped onto standard DIN rails – can be extended at any time
Suitable for industrial environments subject to vibration

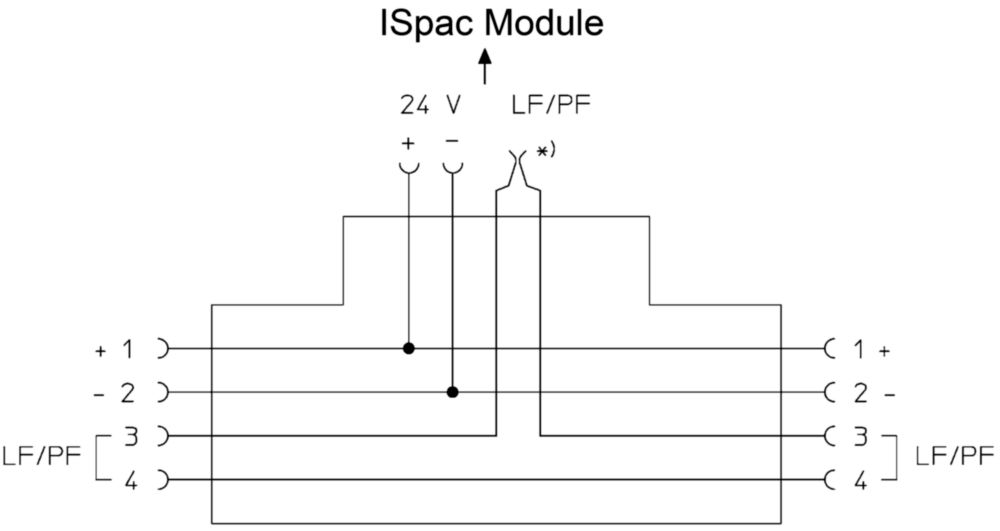

Functional Description The pac-Bus terminal set allows a direct supply of 24 V DC into a pac-Bus segment consisting of 9194/31-17 and/or 9294/31-12 elements. The set is also necessary for reading out the collective error message of ISpac modules 91xx.
Description For the supply of 24 V DC auxiliary power via terminals (alternative to using the supply module 9193/21-11-11), with jumper for error message chain for ISpac module 91xx

Explosion Protection

Electrical Data

Auxiliary power

Ambient Conditions

Mechanical Data

Mounting / Installation

Commercial data

Downloads

Description Document Type Language
pac-Bus terminal set ISpac - 9194/50-01 - 160730 - en-US Single Data Sheet
pdf
pac-Bus terminal set ISpac - 9194/50-01 - 160730 - de-DE Single Data Sheet
pdf
pac-Bus - 9194 - fr-FR Product Overview
pdf
pac-Bus - 9194 - es-ES Product Overview
pdf
pac-Bus - 9194 - de-DE Product Overview
pdf
pac-Bus - 9194 - en-GB Product Overview
pdf
pac-Bus - 9194 - en-US Product Overview
pdf
pac-Bus terminal set ISpac - 9194/50-01 - 160730 - en-GB Single Data Sheet
pdf
pac-Bus terminal set ISpac - 9194/50-01 - 160730 - fr-FR Single Data Sheet
pdf
pac-Bus terminal set ISpac - 9194/50-01 - 160730 - es-ES Single Data Sheet
pdf
