Control box - 225807

Control boxes made of polyester resin Series 8146
Art. No.: 225807

Product Type: 8146/5091
max. ambient temperature: +40 °C
min. ambient temperature: -20 °C
Certificates: ATEX (PTB), Canada (FM), China (NEPSI), IECEx (PTB), India (PESO), Korea (KGS), USA (FM)
Enclosure material: Polyester resin
Enclosure colour: dark grey
Enclosure material 2: Glass fibre reinforced
Silicone-free: Yes
Cover thickness: 2.80 mm
Wall thickness: 2.80 mm

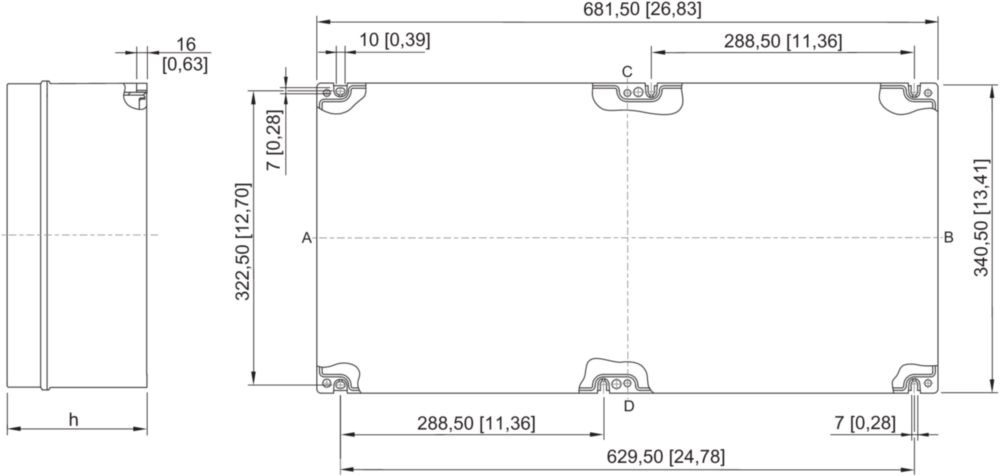

Width: 681.500 mm
Height: 340.500 mm
Depth: 91 mm
Country of origin: DE
More information

Technical data

General

MY R. STAHL 8146F
Product Type 8146/5091
Highlights Practical Ex e control boxes made of glass fibre reinforced polyester resin
Can be equipped as required with control devices, indicator lamps, illuminated pushbuttons, control switches, ammeters and voltmeters
Optional: Flanges, cover hinges, flange enclosures, brass plates, cable glands made of metal
Functional Description R. STAHL Series 8146 control boxes are available in eight basic sizes and various enclosure heights; they can be combined to make larger units. They are made of high-quality glass fibre reinforced polyester resin. We equip these with various components according to customer requirements, whereby the following optional accessories are available: Flanges, cover hinges or cable glands made of metal.

Explosion Protection

Electrical Data

Ambient Conditions

Mechanical Data

Components

Commercial data
