Control device system NEC / CE Code Series 8040
Art. No.:
287012
Product Type:
8040/12E8X-54C01SA70-32G02SF01
max. ambient temperature:
+40 °C
min. ambient temperature:
-50 °C
Top installation position:
Indicator lamp bezel
Installation position: bottom:
Small handle
Certificates:
ATEX (PTB), Brazil (ULB), Canada (UL), China (NEPSI), IECEx (PTB), India (PESO), Korea (KGS), Taiwan (ITRI), USA (UL)
Silicone-free:
No
Built-in element top:
LED indicator lamp
Built-in element bottom:
Control switch 002
Flange and plates:
Metal plate, bottom
Cable glands and entries:
NPT 3/4
Country of origin:
DE
On request
Technical data
General
| MY R. STAHL | 8040E |
| Product variant | LED indicator lamp and 2-pole control switch with switch insert 8008 |
| Product Type | 8040/12E8X-54C01SA70-32G02SF01 |
| Highlights | Quad certified control stations (NEC®, CE Code, ATEX, IECEx)Lightweight enclosure made of glass fibre reinforced polyester (FRP), excellent for corrosive atmospheresOffers a variety of pushbuttons, illuminated pushbuttons, control switches and LEDs for different configurationsCustomisable control stations available upon request with different entry, contact options and additional certifications |
| Functional Description | R. STAHL's series 8040 NEC® / CE Code control stations utilize explosion-protected components with non-metallic enclosures for the ultimate flexibility, safety and durability in hazardous and hostile locations. Choose from one of the standard versions or contact us for a customised solution. |
Explosion Protection
Electrical Data
Ambient Conditions

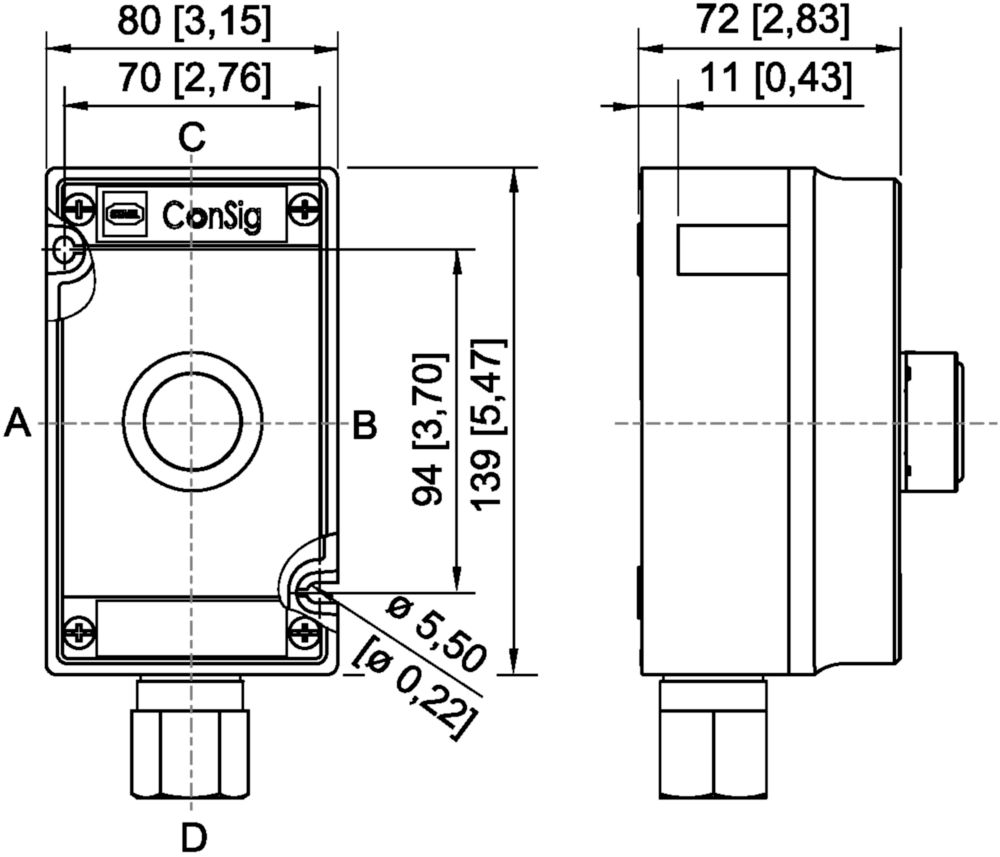

Mechanical Data
Mounting / Installation
Components
Commercial data
Downloads
| Description | Document Type | Language | |
|---|---|---|---|
| Control device system NEC®/CE Code - 8040 - de-DE | Product Overview |
 |
|
| Control device system NEC®/CE Code - 8040 - en-GB | Product Overview |
 |
|
| Control device system NEC®/CE Code - 8040 - fr-FR | Product Overview |
 |
|
| Control device system NEC®/CE Code - 8040 - es-ES | Product Overview |
 |
|
| Control device system NEC®/CE Code - 8040 - en-US | Product Overview |
  |
|
| Control device system Series ConSig 8040 - 8040/12E8X-54C01SA70-32G02SF01 - 287012 - de-DE | Single Data Sheet |
|
|
| Control device system Series ConSig 8040 - 8040/12E8X-54C01SA70-32G02SF01 - 287012 - en-US | Single Data Sheet |
|
|
| Control device system Series ConSig 8040 - 8040/12E8X-54C01SA70-32G02SF01 - 287012 - en-GB | Single Data Sheet |
|
|
| Control device system Series ConSig 8040 - 8040/12E8X-54C01SA70-32G02SF01 - 287012 - fr-FR | Single Data Sheet |
|
|
| Control device system Series ConSig 8040 - 8040/12E8X-54C01SA70-32G02SF01 - 287012 - es-ES | Single Data Sheet |
|
