Antennas Series 9790
Art. No.:
292909
Product Type:
9790/1-2458-NTF-53
Product description:
Antenna
Zone Filter:
Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc / Zone 21 | 2 D | Db / Zone 22 | 3 D | Dc
frequency range 1:
2.4 - 2.485 GHz
frequency range 2:
5.15 - 5.875 GHz
Connection type:
N-type socket (female)
Country of origin:
IT
On request
Technical data
General
| MY R. STAHL | 9790A |
| Product variant | Antennas |
| Product Type | 9790/1-2458-NTF-53 |
| Product description | Antenna |
| Highlights | Robust design suitable for industrial applications ensures a long service lifeVariants for all common radio applicationsClassed as simple apparatus for use with the HFisolator |
| Functional Description | The Series 9790 antennas make it possible to use radio technologies in hazardous areas in conjunction with the 9730 HFisolator. As the antennas are classed as simple apparatus, they can be used without the need for further testing. The robust design, paired with a wide temperature range, ensures a service life lasting many years. |
| Description |
Frequency range: 2.4 to 2.485 GHz 5.15 to 5.875 GHz Antenna gain: 4.7 dBi at 2.4 GHz 3.4 dBi at 5 GHz Connection: N-type socket (for indirect mounting) The antenna is classed as simple apparatus according to EN 60079-11. |
Explosion Protection
Electrical Data
Ambient Conditions

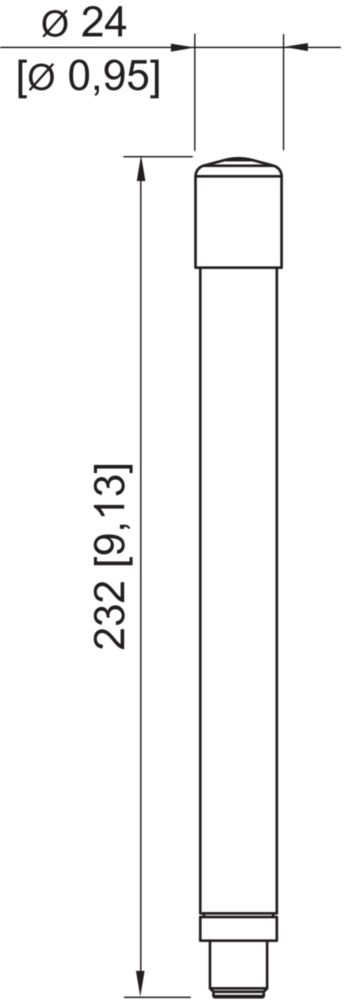

Mechanical Data
Mounting / Installation
Commercial data
Downloads
| Description | Document Type | Language | |
|---|---|---|---|
| Antennas - 9790 - de-DE | Product Overview |
 |
|
| Antennas - 9790 - en-GB | Product Overview |
 |
|
| Antennas - 9790 - es-ES | Product Overview |
 |
|
| Antennas - 9790 - fr-FR | Product Overview |
 |
|
| Antenna - 9790/1-2458-NTF-53 - 292909 - de-DE | Single Data Sheet |
|
|
| Antenna - 9790/1-2458-NTF-53 - 292909 - en-GB | Single Data Sheet |
|
|
| Antenna - 9790/1-2458-NTF-53 - 292909 - fr-FR | Single Data Sheet |
|
|
| Antenna - 9790/1-2458-NTF-53 - 292909 - es-ES | Single Data Sheet |
|
