Coaxial cable bushing Series 9731
Art. No.:
249456
Product Type:
9731/110-1
Product description:
Coaxial cable bushing
Zone Filter:
M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc / Zone 21 | 2 D | Db / Zone 22 | 3 D | Dc
Application range (zones):
1, 2, 21, 22
Certificates:
ATEX (TRC), Canada / USA (MET), IECEx (TRC)
Internal plug connector:
SMA female
External plug connector:
N-type female
Thread size:
M20
Country of origin:
GB
Only 1 items available
Technical data
General
| MY R. STAHL | 9731A |
| Product Type | 9731/110-1 |
| Product description | Coaxial cable bushing |
| Highlights | Connection of standard antennas in Zones 1, 2, 21, 22 (in conjunction with 9730/26-11)Fast and easy installationSuitable for extreme industrial areas – IP66 degree of protection, temperature range from -60 to +150 °C |
| Functional Description | The Series 9731 coaxial cable bushing perfectly complements our HFisolator (9730/26-11), as it enables standard antennas to be connected in hazardous areas of Zones 1, 2, 21 and 22 with its standard type N plug connector. It can be installed quickly and easily, is compact and robust, and can also be used for offshore applications. |
| Description |
Thread: M20 Plug connector Internal: SMA female External: N-type socket Ambient temperature: -60 °C ... +150 °C Degree of protection (IP): IP66 |
Explosion Protection
Electrical Data
Ambient Conditions

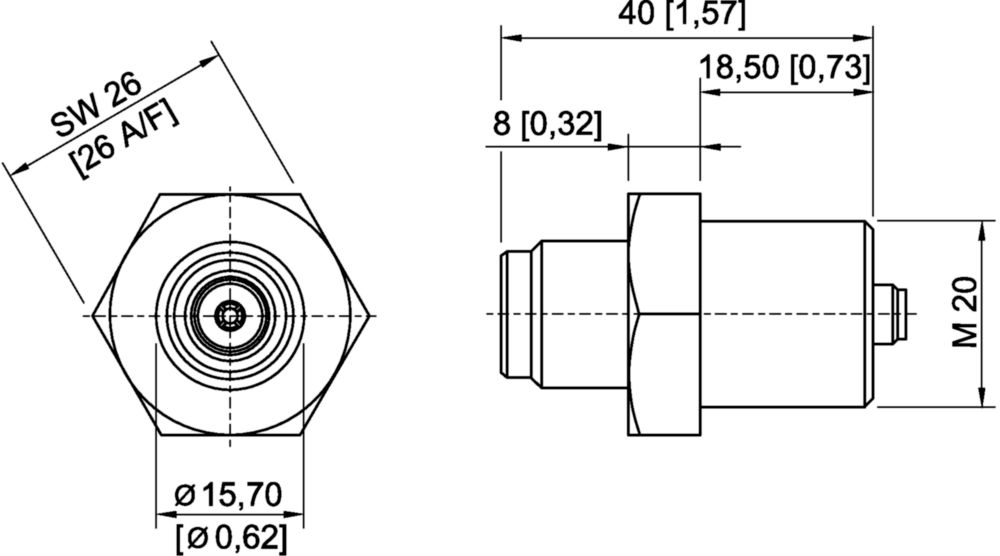

Mechanical Data
Commercial data
Downloads
| Description | Document Type | Language | |
|---|---|---|---|
| Coax Bushing Series 9731 | Data Sheet |
 |
|
| Coax Bushing Series 9731 | Data Sheet |
 |
|
| Coaxial cable bushing - 9731 - fr-FR | Product Overview |
 |
|
| Coaxial cable bushing - 9731 - de-DE | Product Overview |
|
|
| Coaxial cable bushing - 9731 - en-GB | Product Overview |
|
|
| Coaxial cable bushing - 9731/110-1 - 249456 - de-DE | Single Data Sheet |
|
|
| Coaxial cable bushing - 9731/110-1 - 249456 - en-GB | Single Data Sheet |
|
|
| Coaxial cable bushing - 9731/110-1 - 249456 - fr-FR | Single Data Sheet |
|
|
| Coaxial cable bushing - 9731/110-1 - 249456 - es-ES | Single Data Sheet |
 |
