HART analogue universal module for Zone 2 Series 9468/33
Art. No.:
210660
Product Type:
9468/33-08-10
Product description:
Remote I/O IS1+ HART analogue universal module for Zone 2 Ex i
Class 1 Division / Zone:
Division 2 / Zone 2
Zone Filter:
Zone 2 | 3 G | Gc
Application range (zones):
2
Ex interface zone:
0, 1, 2, 20, 21, 22
Certificates:
ATEX (DEK), Brazil (ULB), Canada (FM), China (NEPSI), IECEx (DEK), India (PESO), Korea (KTL), USA (FM)
Installation:
Zone 2 and safe areas
Max. voltage Uo:
24.40 V
Country of origin:
DE
Available in stock
Technical data
General
| MY R. STAHL | 9468B |
| Product Type | 9468/33-08-10 |
| Product description | Remote I/O IS1+ HART analogue universal module for Zone 2 Ex i |
| Highlights | 8 channels can be used individually as inputs or outputsEx ia IIC intrinsically safe inputs/outputs with line fault monitoringModule in Zone 2 can be replaced without having to disconnect the power supply (i.e. hot-swapped) |
| Functional Description |
The 9468/33 HART analogue universal module for Zone 2 has eight channels which can be used separately for Ex i operation of 2-/3-conductor HART transmitters, 4-conductor transmitters or control valves/positioners with 0/4 to 20 mA signals. HART communication is bidirectional. All inputs/outputs are short-circuit proof, galvanically separated from the system and individually monitored to check for line faults. |
Explosion Protection
Safety Data
Electrical Data
Auxiliary power
Galvanic isolation
Input
Output
Device Specific Data
Diagnostics
Ambient Conditions

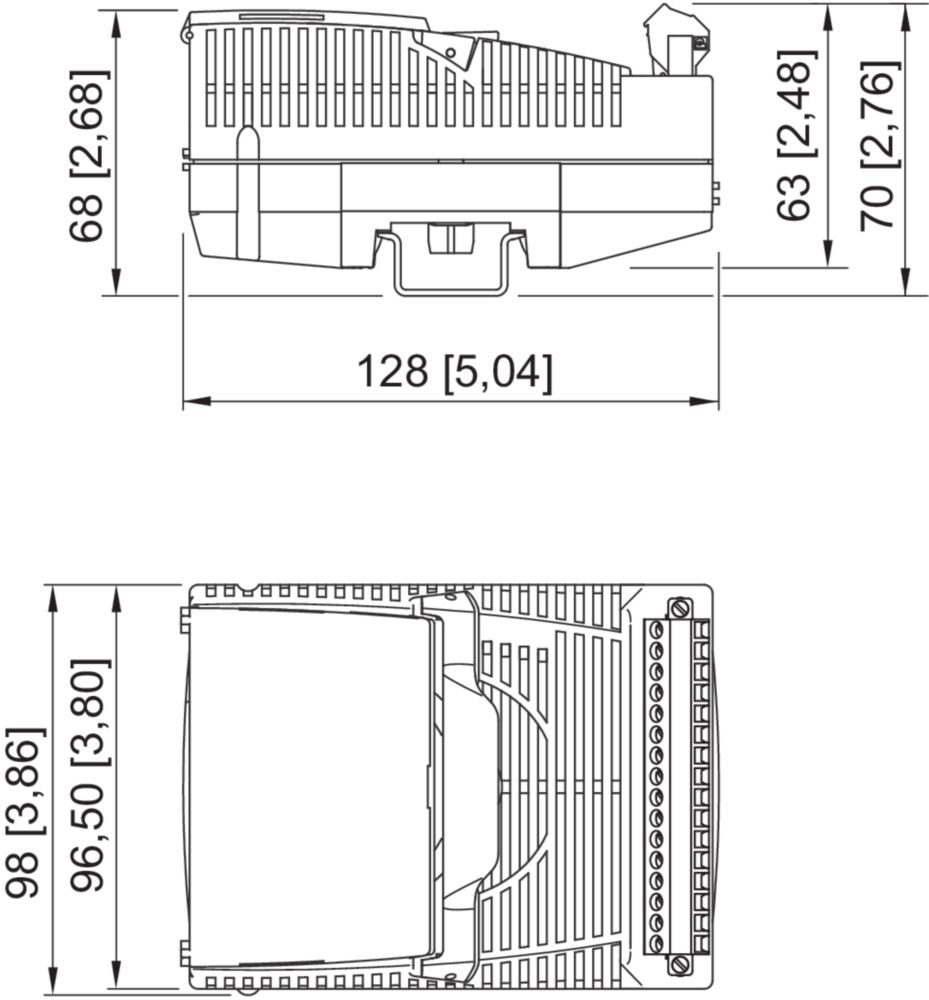

Mechanical Data
Mounting / Installation
Commercial data
Downloads
| Description | Document Type | Language | |
|---|---|---|---|
| Remote I/O IS1+ HART analogue universal module for Zone 2 Ex i - 9468/33-08-10 - 210660 - en-US | Single Data Sheet |
  |
|
| Remote I/O IS1+ HART analogue universal module for Zone 2 Ex i - 9468/33-08-10 - 210660 - de-DE | Single Data Sheet |
 |
|
| Remote I/O IS1+ HART analogue universal module for Zone 2 Ex i - 9468/33-08-10 - 210660 - en-GB | Single Data Sheet |
 |
|
| HART analogue universal module for Zone 2/Div. 2 - 9468/33 - fr-FR | Product Overview |
 |
|
| HART analogue universal module for Zone 2/Div. 2 - 9468/33 - es-ES | Product Overview |
 |
|
| HART analogue universal module for Zone 2/Div. 2 - 9468/33 - de-DE | Product Overview |
|
|
| HART analogue universal module for Zone 2/Div. 2 - 9468/33 - en-GB | Product Overview |
|
|
| HART analogue universal module for Zone 2/Div. 2 - 9468/33 - zh-CN | Product Overview |
 |
|
| HART analogue universal module for Zone 2/Div. 2 - 9468/33 - en-US | Product Overview |
|
|
| Remote I/O IS1+ HART analogue universal module for Zone 2 Ex i - 9468/33-08-10 - 210660 - fr-FR | Single Data Sheet |
|
|
| Remote I/O IS1+ HART analogue universal module for Zone 2 Ex i - 9468/33-08-10 - 210660 - es-ES | Single Data Sheet |
|
