Digital output module, 8-channel version for Zone 1 Series 9475/32-08
Art. No.:
210656
Product Type:
9475/32-08-62
Product description:
Remote I/O IS1+ Digital output module for Zone 1 Ex i
Max. power consumption:
5.80 W
Class 1 Division / Zone:
Division 1 / Zone 1
Zone Filter:
Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Ex interface zone:
0, 1, 2, 20, 21, 22
Certificates:
ATEX (DEK), Brazil (ULB), Canada (FM), China (NEPSI), IECEx (DEK), India (PESO), Korea (KTL), SIL (exida), USA (FM)
Installation:
Zone 1, Zone 2 and safe areas
Number of channels:
8 Ex i outputs
Ex i output rated operation:
17.5 V/20 mA
Country of origin:
DE
Available in stock
Technical data
General
MY R. STAHL | 9475C |
Product variant | Digital output module with "Plant STOP" |
Product Type | 9475/32-08-62 |
Product description | Remote I/O IS1+ Digital output module for Zone 1 Ex i |
Highlights | 8 channels for Ex i solenoid valves up to 20 mAEx nA outputs with line fault monitoring, an LED fault and status display for each channel and SIL2 shutdown inputModules in Zone 1 can be replaced without having to disconnect the power supply (i.e. hot-swapped) |
Functional Description | The 9475/32-08 digital output modules for Zone 1 have eight channels for controlling Ex i solenoid valves or indicator lamps. An additional Ex i control input is suitable for safe shutdown up to SIL 2. All outputs are short-circuit proof, galvanically separated from the system and individually monitored to check for wire breakage/short-circuiting. |
Explosion Protection
Safety Data
Electrical Data
Auxiliary power
Galvanic isolation
Input
Output
Device Specific Data
Diagnostics
Ambient Conditions

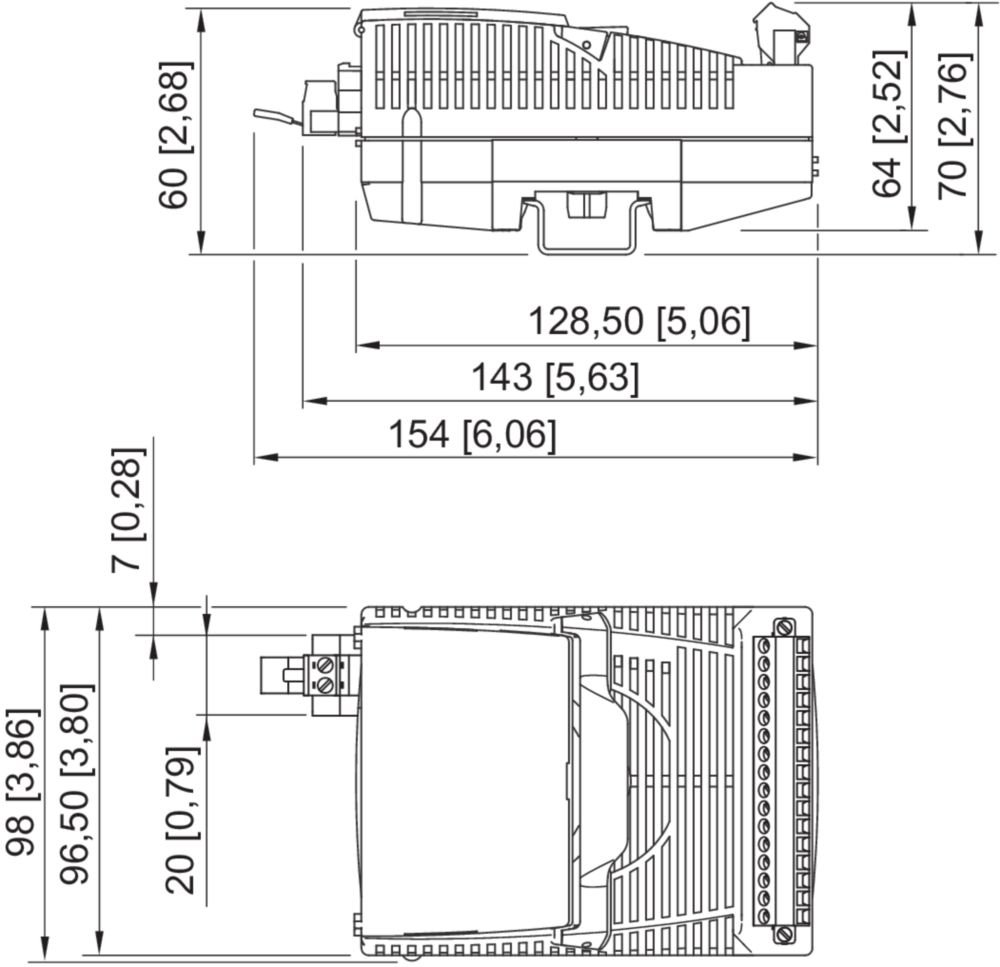

Mechanical Data
Mounting / Installation
Commercial data
Downloads
Description | Document Type | Language | |
---|---|---|---|
Remote I/O IS1+ Digital output module for Zone 1 Ex i - 9475/32-08-62 - 210656 - en-US | Single Data Sheet |
|
|
Remote I/O IS1+ Digital output module for Zone 1 Ex i - 9475/32-08-62 - 210656 - de-DE | Single Data Sheet |
|
|
Remote I/O IS1+ Digital output module for Zone 1 Ex i - 9475/32-08-62 - 210656 - en-GB | Single Data Sheet |
|
|
Digital output module, 8-channel version - 9475/32-08 - fr-FR | Product Overview |
|
|
Digital output module, 8-channel version - 9475/32-08 - es-ES | Product Overview |
|
|
Digital output module, 8-channel version - 9475/32-08 - de-DE | Product Overview |
|
|
Digital output module, 8-channel version - 9475/32-08 - en-GB | Product Overview |
|
|
Digital output module, 8-channel version - 9475/32-08 - zh-CN | Product Overview |
|
|
Digital output module, 8-channel version - 9475/32-08 - en-US | Product Overview |
|
|
Remote I/O IS1+ Digital output module for Zone 1 Ex i - 9475/32-08-62 - 210656 - fr-FR | Single Data Sheet |
|
|
Remote I/O IS1+ Digital output module for Zone 1 Ex i - 9475/32-08-62 - 210656 - es-ES | Single Data Sheet |
|
