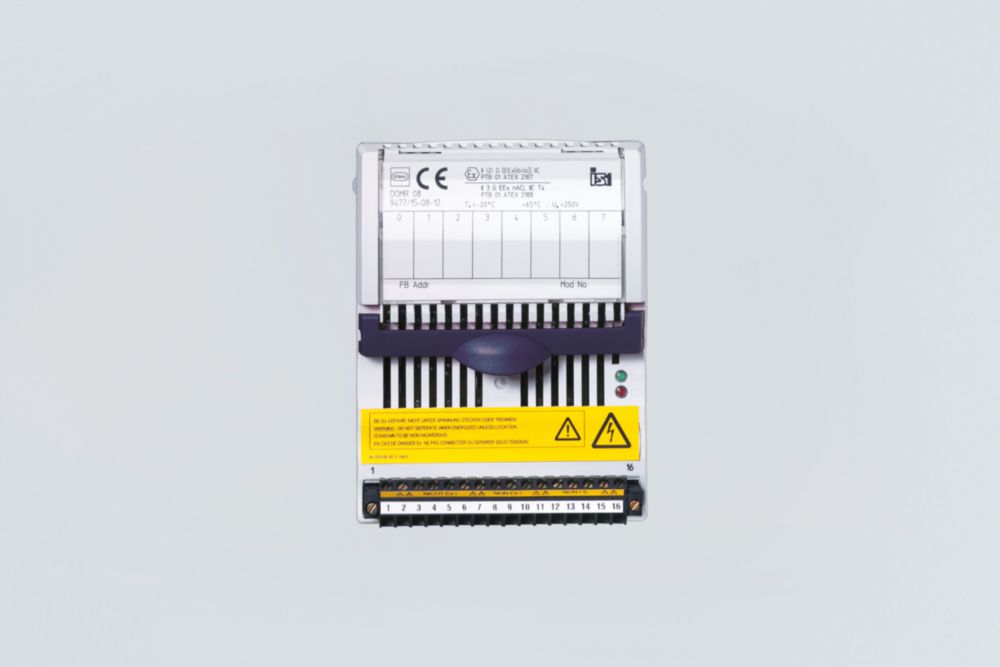

Digital output module relay Ex nA outputs for Zone 2/Div. 2 Series 9477/15
Art. No.:
168694
Product Type:
9477/15-08-12
Product description:
Remote I/O IS1 Relay digital output module for Zone 2 Ex n
Max. power consumption:
4.80 W
Class 1 Division / Zone:
Division 2 / Zone 2
Zone Filter:
Zone 2 | 3 G | Gc
Ex interface zone:
2, 22
Certificates:
ATEX (PTB), Canada (FM), IECEx (PTB), USA (FM)
Installation:
Zone 2, Zone 22, Div. 2
Number of channels:
8 Ex e outputs
Max. switching voltage:
250 V AC
Country of origin:
DE
On request
Technical data
General
| MY R. STAHL | 9477B |
| Product Type | 9477/15-08-12 |
| Product description | Remote I/O IS1 Relay digital output module for Zone 2 Ex n |
| Highlights | With 8 de-energised relay contactsEx nA outputs with a high switching capacity up to 100 VAModule in Zone 2 can be replaced without having to disconnect the power supply (i.e. hot-swapped) |
| Functional Description | The 9477/15 digital output module relay for Zone 2 has eight channels for operating non-intrinsically safe solenoid valves with a high switching capacity. De-energised relay contacts (NO contacts) with Ex nA connection technology are available as outputs. Operation in combination with Ex i I/O modules is permissible. |
Explosion Protection
Electrical Data
Auxiliary power
Galvanic isolation
Output
Device Specific Data
Diagnostics
Ambient Conditions

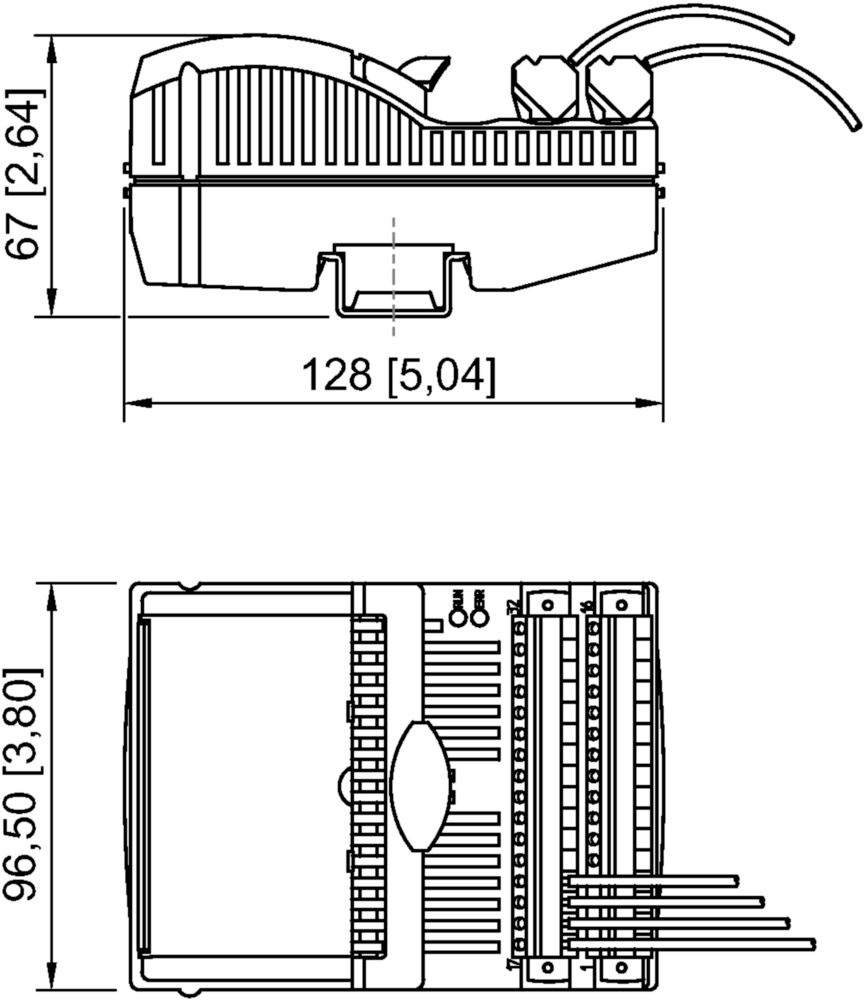

Mechanical Data
Mounting / Installation
Commercial data
Downloads
| Description | Document Type | Language | |
|---|---|---|---|
| Remote I/O IS1 Digital output module relay For Zone 2 Ex n - 9477/15-08-12 - 168694 - en-US | Single Data Sheet |
  |
|
| Remote I/O IS1 Relay digital output module for Zone 2 Ex n - 9477/15-08-12 - 168694 - de-DE | Single Data Sheet |
 |
|
| Remote I/O IS1 Relay digital output module for Zone 2 Ex n - 9477/15-08-12 - 168694 - en-GB | Single Data Sheet |
 |
|
| Digital output module relay for Zone 2/Div. 2 - 9477/15 - fr-FR | Product Overview |
 |
|
| Digital output module relay for Zone 2/Div. 2 - 9477/15 - es-ES | Product Overview |
 |
|
| Digital output module relay for Zone 2/Div. 2 - 9477/15 - de-DE | Product Overview |
|
|
| Digital output module relay for Zone 2/Div. 2 - 9477/15 - en-GB | Product Overview |
|
|
| Digital output module relay for Zone 2/Div. 2 - 9477/15 - en-US | Product Overview |
|
|
| Remote I/O IS1 Relay digital output module for Zone 2 Ex n - 9477/15-08-12 - 168694 - fr-FR | Single Data Sheet |
|
|
| Remote I/O IS1 Relay digital output module for Zone 2 Ex n - 9477/15-08-12 - 168694 - es-ES | Single Data Sheet |
|
