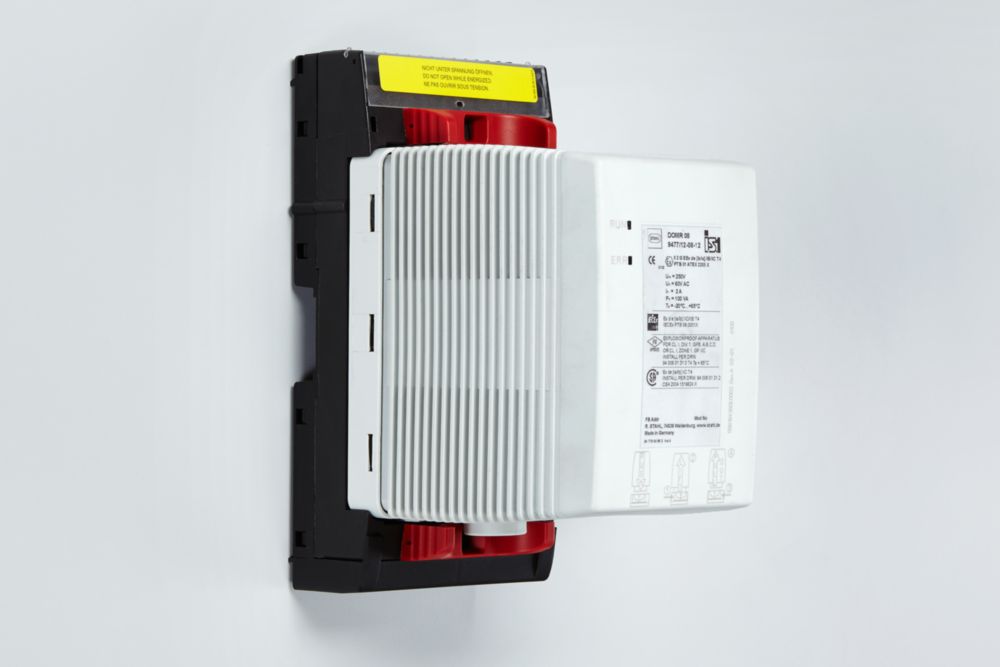

Digital output module relay for Zone 1/Div. 1 Series 9477/12
Art. No.:
162630
Product Type:
9477/12-06-12
Product description:
Remote I/O IS1 Relay digital output module for Zone 1 Ex d e
Max. power consumption:
3.60 W
Class 1 Division / Zone:
Division 1 / Zone 1
Zone Filter:
Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Ex interface zone:
1, 2
Certificates:
ATEX (PTB), Canada (FM), IECEx (PTB), USA (FM)
Installation:
Zone 1/Division 1
Number of channels:
6 Ex e outputs
Max. switching voltage:
250 V AC
Country of origin:
DE
On request
Technical data
General
| MY R. STAHL | 9477A |
| Product Type | 9477/12-06-12 |
| Product description | Remote I/O IS1 Relay digital output module for Zone 1 Ex d e |
| Highlights | With up to 6 de-energised relay contactsEx e outputs with a high switching capacity up to 100 VAModule in Zone 1 can be replaced without having to disconnect the power supply (i.e. hot-swapped) |
| Functional Description | The 9477/12-06-12 digital output module relay for Zone 1 has six channels for operating non-intrinsically safe solenoid valves with a high switching capacity. De-energised relay contacts (NO contacts) with Ex e or conduit connection technology are available as outputs. Operation in combination with Ex i I/O modules is permissible. |
Explosion Protection
Electrical Data
Auxiliary power
Galvanic isolation
Output
Device Specific Data
Diagnostics
Ambient Conditions

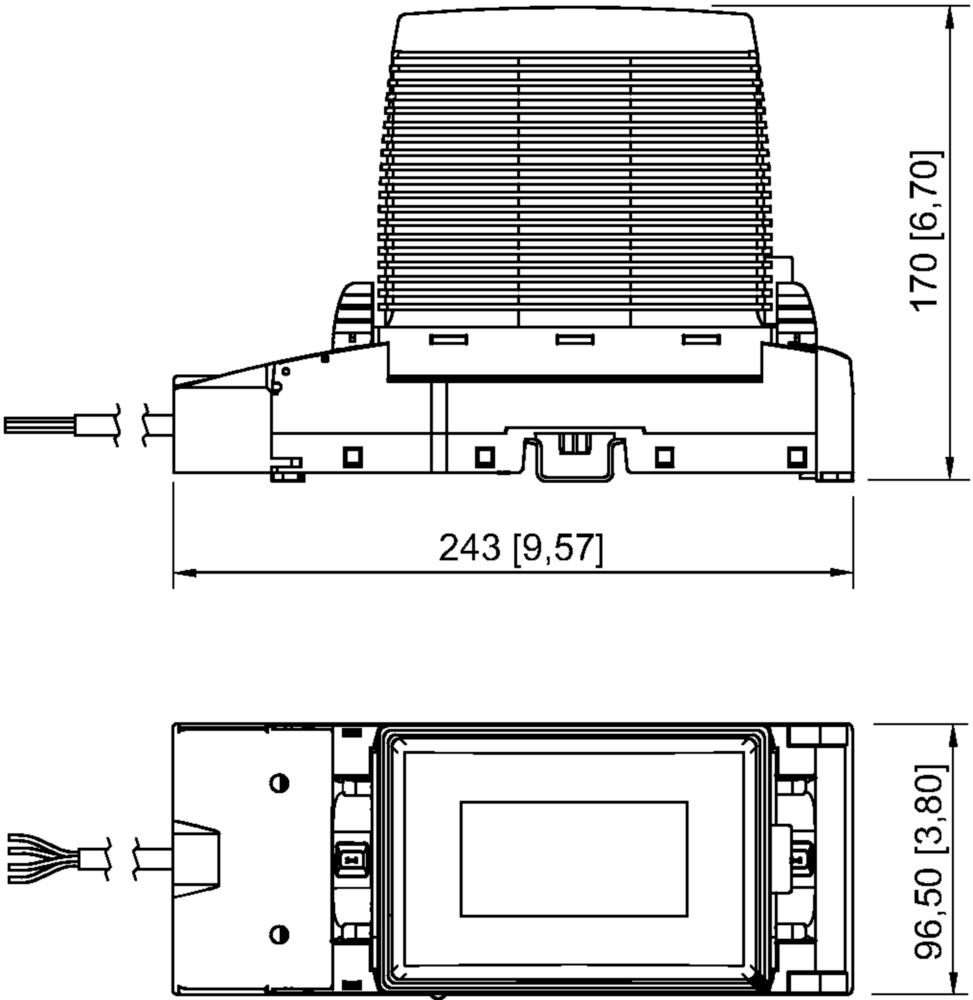

Mechanical Data
Mounting / Installation
Commercial data
Downloads
