Termination board 9491
Art. No.:
273018
Product Type:
9491/T1-08-02
Product description:
Remote I/O IS1+ Termination board for Zone 2
Ex interface zone:
2
Number of channels:
8
Designation 2:
Termination Board
Country of origin:
DE
On request
Technical data
General
| MY R. STAHL | 9491A |
| Product variant | Termination Board 9491 |
| Product Type | 9491/T1-08-02 |
| Product description | Remote I/O IS1+ Termination board for Zone 2 |
| Highlights | Redundant operation of IS1+ I/O modulesSuitable for I/O modules with non-intrinsically safe I/O from firmware 4.xxSimple installation on DIN rail and connection via push-in terminalsInstallation in Zone 2 |
| Functional Description | Type 9491/T1 termination boards and the corresponding type 9491/Z1 connection cables are accessories for the IS1+ Remote I/O system. The devices can be used in hazardous areas in Zone 2 as well as in safe areas, and are used for parallel switching of non-intrinsically safe field circuits of two IS1+ I/O modules of the same type (from firmware 4.xx) and thereby enable I/O redundancy. |
| Description |
The termination boards are used for parallel switching of the inputs and outputs of two I/O modules for signal redundancy. Signal redundancy for I/O modules 9469/35 from firmware 04-xx |
Explosion Protection
Electrical Data
Auxiliary power
Galvanic isolation
Input
Output
Ambient Conditions

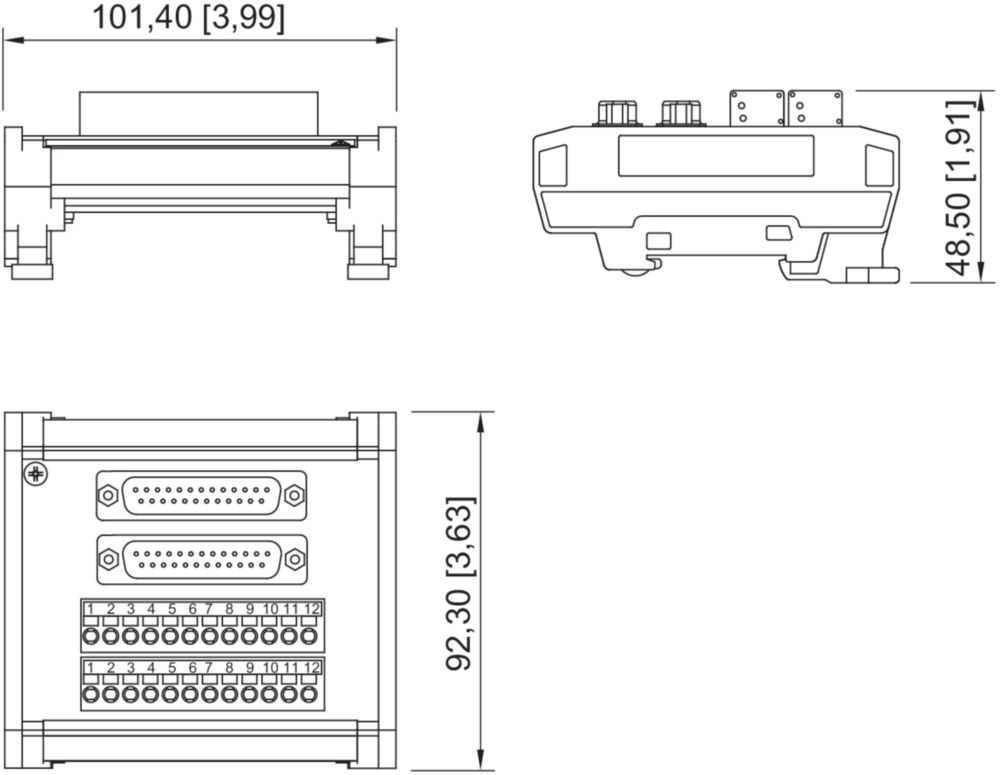

Mechanical Data
Mounting / Installation
Commercial data
Downloads
| Description | Document Type | Language | |
|---|---|---|---|
| IS1+ Remote I/O Termination board For Zone 2 - 9491/T1-08-02 - 273018 - de-DE | Single Data Sheet |
 |
|
| IS1+ Remote I/O Termination board For Zone 2 - 9491/T1-08-02 - 273018 - en-GB | Single Data Sheet |
 |
|
| Termination board - 9491 - fr-FR | Product Overview |
 |
|
| Termination board - 9491 - de-DE | Product Overview |
|
|
| Termination board - 9491 - en-GB | Product Overview |
|
|
| IS1+ Remote I/O Termination board For Zone 2 - 9491/T1-08-02 - 273018 - fr-FR | Single Data Sheet |
|
|
| IS1+ Remote I/O Termination board For Zone 2 - 9491/T1-08-02 - 273018 - es-ES | Single Data Sheet |
 |
|
| Termination Board - 9491 - es-ES | Product Overview |
|
