Resistor Series 8453
Art. No.:
145172
Product Type:
8453/1-03-002
Product description:
Control unit with resistor
max. ambient temperature:
+50 °C
min. ambient temperature:
-60 °C
Zone Filter:
M / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Version:
with resistor
Certificates:
ATEX (PTB), Brazil (ULB), IECEx (PTB)
Maximum resistance Rmax:
10
Country of origin:
DE
Available in stock
Technical data
General
| MY R. STAHL | 8453A |
| Product Type | 8453/1-03-002 |
| Product description | Control unit with resistor |
| Highlights |
Control element for customised equipping with numerous electric and electronic components Flameproof enclosure (Ex d) with screw terminals with increased safety (Ex e) Connection cross-section 0.75 to 2.5 mm², solid/finely stranded Simple mounting on mounting rail |
| Functional Description | R. STAHL's 8453 series control units are components with type of protection flameproof enclosure (Ex d) for installation in enclosures with increased safety (Ex e). They contain electronic and electrical components such as resistors, diodes, voltage limiters or fuses. Thanks to their compact design, they are suitable for space-critical applications. |
| Description | Resistance 10 kΩ/1 W |
Explosion Protection
Electrical Data
Ambient Conditions

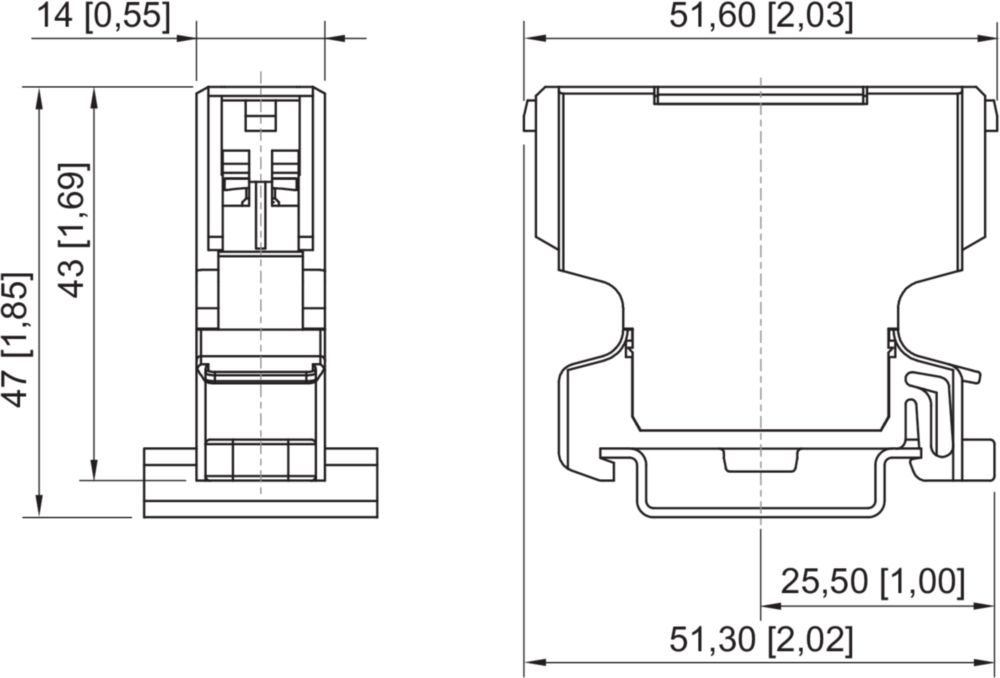

Mechanical Data
Mounting / Installation
Components
Commercial data
Downloads
| Description | Document Type | Language | |
|---|---|---|---|
| Resistor Series 8453 | Data Sheet |
 |
|
| Resistor Series 8453 | Data Sheet |
 |
|
| Control unit With resistor - 8453/1-03-002 - 145172 - de-DE | Single Data Sheet |
|
|
| Control unit With resistor - 8453/1-03-002 - 145172 - en-GB | Single Data Sheet |
|
|
| Control unit With resistor - 8453/1-03-002 - 145172 - es-ES | Single Data Sheet |
 |
|
| Control unit With resistor - 8453/1-03-002 - 145172 - fr-FR | Single Data Sheet |
 |
