Power supply Series 8510
Art. No.:
211142
Product Type:
8510/122-30-200-030
Product description:
Power supply module
max. ambient temperature:
+60 °C
min. ambient temperature:
-10 °C
Zone Filter:
M2 | Mb / Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Certificates:
Brazil (ULB), Canada (FM), China (CQST), IECEx (BVS), USA (FM)
Input voltage:
100 to 240 V AC
Output voltage:
24.5 V DC
Country of origin:
DE
On request
Technical data
General
| MY R. STAHL | 8510Y |
| Product Type | 8510/122-30-200-030 |
| Product description | Power supply module |
| Highlights | Constant power supply for control circuitsProtected against sustained short-circuit current, overload and idle runningCorrosion-resistant enclosure material |
| Functional Description | The R. STAHL Series 8510 power supply provides a constant power supply for control circuits. It is protected against sustained short-circuit current, overload and idle running and is therefore extremely reliable in operation. It can be screwed into Ex e enclosures so that it is protected against vibrations, while easily accessible connection terminals simplify installation. |
Explosion Protection
Electrical Data
Output
Ambient Conditions

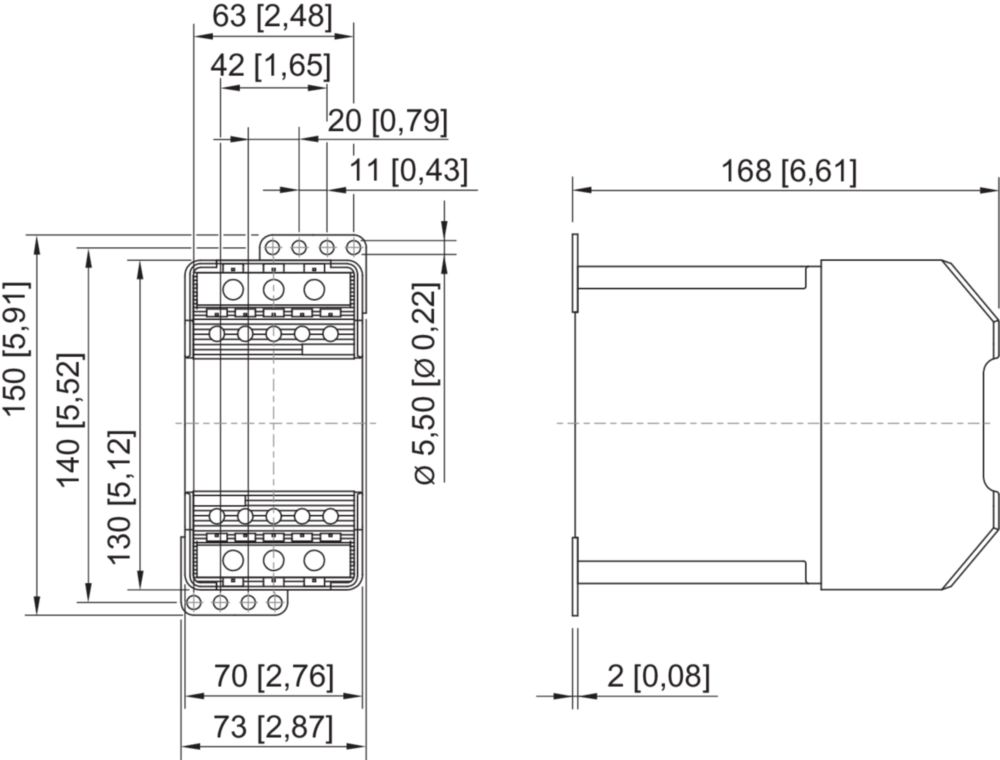

Mechanical Data
Commercial data
Downloads
| Description | Document Type | Language | |
|---|---|---|---|
| Power supply module - 8510/122-30-200-030 - 211142 - de-DE | Single Data Sheet |
 |
|
| Power supply module - 8510/122-30-200-030 - 211142 - en-GB | Single Data Sheet |
 |
|
| Power supply - 8510 - de-DE | Product Overview |
|
|
| Power supply - 8510 - fr-FR | Product Overview |
 |
|
| Power supply - 8510 - es-ES | Product Overview |
 |
|
| Power supply - 8510 - en-GB | Product Overview |
|
|
| Power supply module - 8510/122-30-200-030 - 211142 - fr-FR | Single Data Sheet |
|
|
| Power supply module - 8510/122-30-200-030 - 211142 - es-ES | Single Data Sheet |
|
