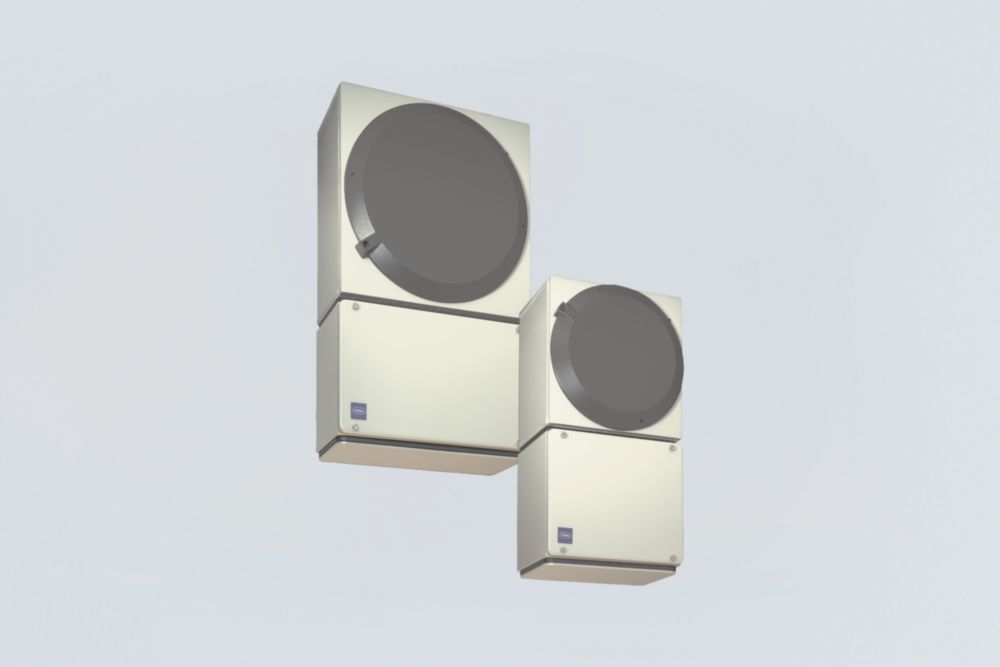

Ex d enclosure system made of sheet steel Series 8225
Art. No.:
142428
Product Type:
8225
Country of origin:
DE
On request
Technical data
General
| MY R. STAHL | 8225B |
| Product Type | 8225 |
| Highlights | Enclosure made of sheet steelSix basic enclosure sizesEnclosures can be combined, modular design principleDelivery of empty enclosures and fully assembled and wired control panels and distribution boardsDirect cable entry: Cable gland, conduit connection technologyIndirect cable entry (via Ex e enclosure): Post-type bushing, conductor bushing |
| Functional Description | The Series 8225 sheet steel enclosures can be used as single enclosures as well as for enclosure combinationsThe dimensions of the enclosures are designed so that they can be combined to form large units according to the modular design principle. A large number of components, such as contactors, switches, measuring instruments, programmable logic controllers, etc. can be installed in these enclosures. It goes without saying that equipment provided by the customer is also taken into consideration during the project engineering process.We plan the enclosure installation to meet the customer's specific requirements; six basic enclosure sizes with different enclosure depths are available to choose from.Direct cable entries (cable glands or conduit connection technology) and indirect cable entries via Ex e enclosure (post-type bushings or conductor bushings) are available for inserting conductors – see catalogue section E10. |
