Lighting and heating circuit distribution boards CUBEx Series 8264/-ExV
Art. No.:
143216
Product Type:
8264/5-ExV-02-24H16B1N-D
Product description:
Heating circuit distrib.boards with residual current circuit breaker With overcurrent release
max. ambient temperature:
+40 °C
min. ambient temperature:
-20 °C
AC rated operational voltage:
230 - 400 V
Rated operational current:
100 A
Certificates:
ATEX (DEK), Brazil (ULB), Canada / USA (UL), China (NEPSI), IECEx (DEK), India (PESO), Korea (KGS), Taiwan (ITRI)
Enclosure material:
Aluminium
Built-in unit 1:
1 x Load and motor switch
Built-in unit 2:
24 x Residual current circuit breaker 1-pole 16 A+N/30 mA/B
Country of origin:
DE
On request
Technical data
General
| MY R. STAHL | 8264A |
| Product Type | 8264/5-ExV-02-24H16B1N-D |
| Product description | Heating circuit distrib.boards with residual current circuit breaker With overcurrent release |
| Highlights | Enclosure with Ex d type of protectionWith miniature circuit breaker, tripping characteristic CWith residual current circuit breaker and overcurrent release, tripping characteristic B or CAdvantage: Short delivery times |
| Functional Description | R. STAHL Series 8264/-ExV CUBEx lighting and heating circuit distribution boards are modular and are therefore available in a large number of standard variants which are ready for rapid delivery; further versions are available on request. They are lightweight, saltwater-resistant and suitable for a wide range of temperatures. The Ex d enclosures are wall-mounted using screws or rails. |
Explosion Protection
Electrical Data
Ambient Conditions

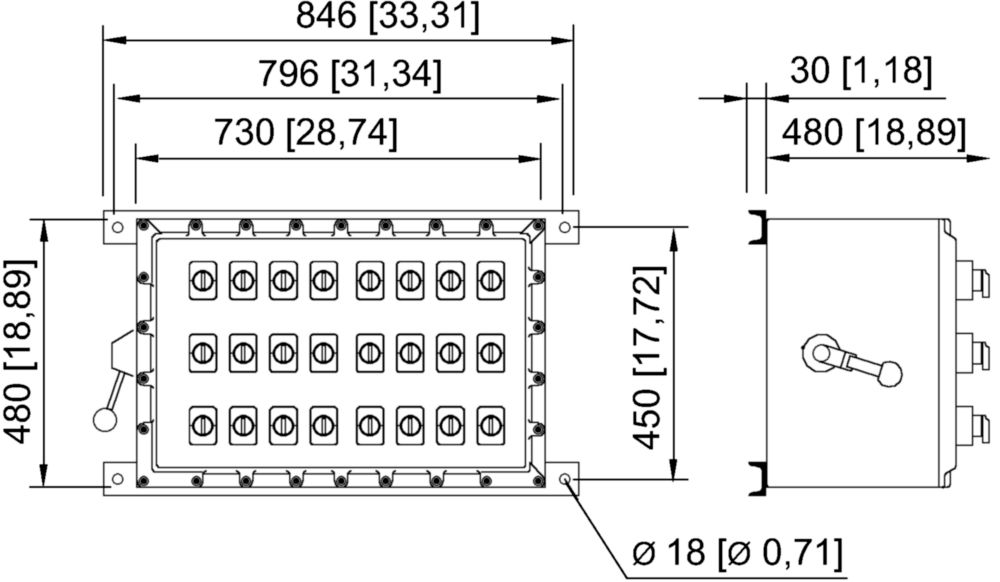

Mechanical Data
Components
Commercial data
Downloads
| Description | Document Type | Language | |
|---|---|---|---|
| Heating circuit distrib.boards with residual current circuit breaker With overcurrent release - 8264 ... | Single Data Sheet |
 |
|
| Heating circuit distrib.boards with residual current circuit breaker With overcurrent release - 8264 ... | Single Data Sheet |
 |
|
| Lighting and heating circuit distribution boards - 8264 - fr-FR | Product Overview |
 |
|
| Lighting and heating circuit distribution boards CUBEx - 8264 - es-ES | Product Overview |
 |
|
| Lighting and heating circuit distribution boards - 8264 - de-DE | Product Overview |
|
|
| Lighting and heating circuit distribution boards - 8264 - en-GB | Product Overview |
|
|
| Heating circuit distrib.boards With residual current circuit breaker With overcurrent release - 8264 ... | Single Data Sheet |
|
|
| Heating circuit distrib.boards With residual current circuit breaker With overcurrent release - 8264 ... | Single Data Sheet |
|
