Junction boxes series 8102
Art. No.:
132989
Product Type:
8102/22-31
Product description:
Ex i junction box
min. ambient temperature:
-50 °C
max. ambient temperature:
+70 °C
Certificates:
ATEX (PTB), IECEx (PTB)
Entry 1:
3 x
Type of terminals 1:
5 x Mantle terminal
4 mm²
4 mm²
Country of origin:
PL
Available in stock
Technical data
General
| MY R. STAHL | 8102A |
| Product Type | 8102/22-31 |
| Product description | Ex i junction box |
| Highlights | Small, robust Ex e enclosure for distributing electrical energyIP66 degree of protectionEquipped with 4 mantle terminals and 1 PE connectionAvailable with plastic semi-glands or cable glands |
| Functional Description | R. STAHL junction boxes from series 8102 are small Ex e enclosures for conducting and distributing electrical energy in hazardous areas. They are made from glass-fibre-reinforced polyester resin and are therefore extremely robust. The junction box has 5 mantle terminals, whereby one is used as a PE connection point. The cable dia. range of the mantle terminals is 2 x 4 mm². |
Explosion Protection
Electrical Data
Ambient Conditions

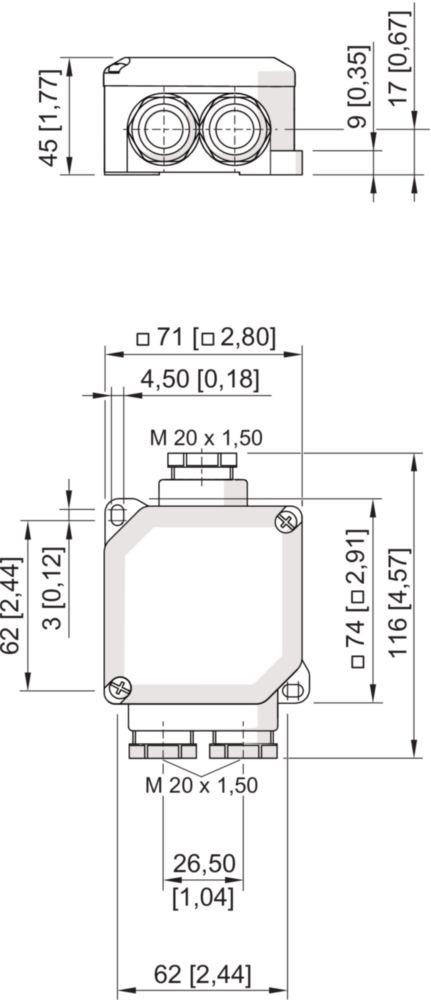

Mechanical Data
Mounting / Installation
Components
Commercial data
Downloads
| Description | Document Type | Language | |
|---|---|---|---|
| Ex i junction box - 8102/22-31 - 132989 - de-DE | Single Data Sheet |
 |
|
| Ex i junction box - 8102/22-31 - 132989 - en-GB | Single Data Sheet |
 |
|
| Ex i junction box - 8102/22-31 - 132989 - fr-FR | Single Data Sheet |
 |
|
| Junction boxes - 8102 - es-ES | Product Overview |
 |
|
| Junction boxes - 8102 - de-DE | Product Overview |
|
|
| Junction boxes - 8102 - en-GB | Product Overview |
|
|
| Junction boxes - 8102 - fr-FR | Product Overview |
|
|
| Ex i junction box - 8102/22-31 - 132989 - es-ES | Single Data Sheet |
|
