C-LUX compact light fittings Series 6102
Art. No.:
287700
Product Type:
6102/111-0100-150-0111-31-1850-A2
max. ambient temperature:
+50 °C
min. ambient temperature:
-40 °C
Zone Filter:
Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc / Zone 21 | 2 D | Db / Zone 22 | 3 D | Dc
Certificates:
ATEX (IBE), Brazil (ULB), China (NEPSI), IECEx (IBE), Polen (CNBOP)
Cable glands and entries:
2 x M25 Ø 7 … 17 mm
Country of origin:
DE
On request
Technical data
General
MY R. STAHL | 6102A |
Product Type | 6102/111-0100-150-0111-31-1850-A2 |

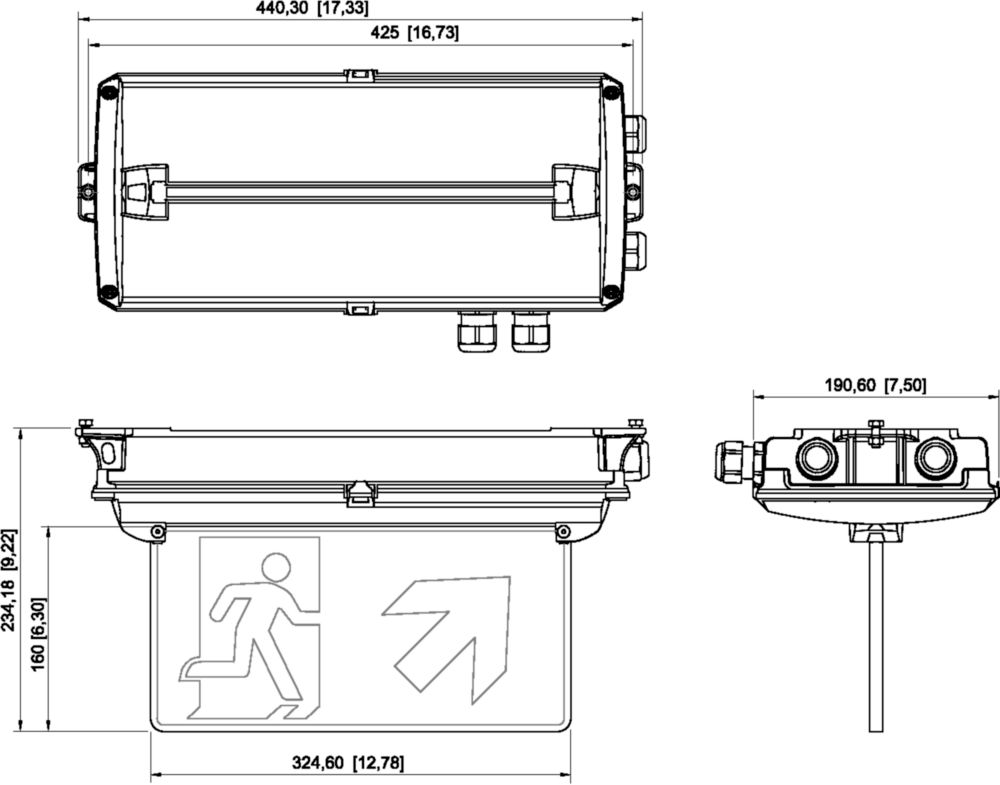

Version | Escape route to the left/right Double-sided |
Variant | Escape route to the left/right |
Variant 2 | Double-sided |
Highlights |
Suitable for wall, ceiling and suspended mounting With either DALI or address module Emergency exit signs with suspended panel so that they can be read from both sides Large recognition range d ≥ 30 m Lightweight, robust and compact design |
Functional Description | The Series C-LUX 6102 compact light fittings can be used for normal lighting or as emergency luminaires in conjunction with emergency exit signs and/or an address module for use in central battery systems. |
Explosion Protection
Electrical Data
Lighting Data
Ambient Conditions
Mechanical Data
Components
Commercial data
Downloads
Description | Document Type | Language | |
---|---|---|---|
Compact light fitting Emergency luminaire - 6102/111-0100-150-0111-31-1850-A2 - 287700 - de-DE | Data Sheet |
![]() |
|
Compact light fitting Emergency luminaire - 6102/111-0100-150-0111-31-1850-A2 - 287700 - en-GB | Data Sheet |
![]() |
|
Compact light fitting Emergency luminaire - 6102/111-0100-150-0111-31-1850-A2 - 287700 - es-ES | Data Sheet |
![]() |
|
Compact light fitting Emergency luminaire - 6102/111-0100-150-0111-31-1850-A2 - 287700 - fr-FR | Data Sheet |
![]() |
|
C-LUX Compact Light Fittings - 6102 - en-GB | Product Overview |
![]() |
|
C-LUX Compact Light Fittings - 6102 - es-ES | Product Overview |
![]() |
|
C-LUX Compact Light Fittings - 6102 - fr-FR | Product Overview |
![]() |
|
C-LUX compact light fittings - 6102 - de-DE | Product Overview |
![]() |
