R. STAHL offers a wide range of accessories specifically designed for our field enclosure customers to improve their installation experience. Our conduit hubs eliminate the wire rotation when tightening and our stand off provides a clean isolation from ground.
R. STAHL's accessories for field installation include conduit hubs, cable glands, breathers, plugs, reducers, stand offs, fuses and more.
8166/11 Conduit Hubs
Cable Glands
Breather
Stoppers
Stand Off
Explosionproof Power Supply
8166/11 Conduit Hubs
Listed for hazardous locations as per markings (available on datasheet), the 8166/11 conduit hubs are suitable for installations of rigid conduits with ½” to 3” NPT threads to metallic and non-metallic enclosures with appropriate ratings. They are made of zinc and provide a watertight seal by means of an embedded “O” ring.
Additionally, the ground locknut comes with a rated terminal for ground wire. The locknut has a screw connection to provide a secondary and solid ground so that grounding is maintained in the system.
Listed for hazardous locations as per markings (available on datasheet), our cable gland portfolio covers all typical applications for armored and unarmored cables and are available in different materials, such as: Nickel Plated Brass, Stainless Steel and Aluminum.

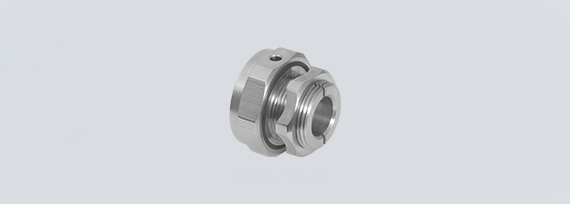

Breathers used on outdoor field enclosures help to minimize the condensation inside a panel. R. STAHL installs breathers upon request, and these stainless steel and water ingress rated as well as hazardous rated for Class I, Division 1 2, and Zones 1 and 2.

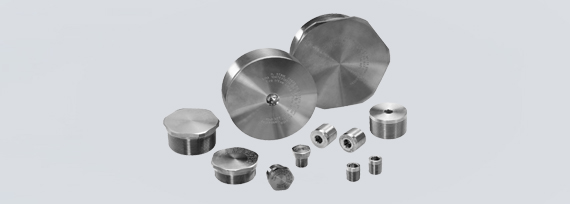

Stopping plugs are used when a cable entry is not defined yet but a provision is done for future use. Stopping plugs must maintain the integrity of the enclosure for environmental purposes as well as hazardous ratings such as Class I, II, Divisions 1 & 2, and Zone 1 and 2. Stopping plugs are made of different materials such as stainless steel, FRP, or Nickel Plated Brass.
Stand Off
When a DIN rail needs to be isolated from a back panel, our insulating stand offs, 291755, is the perfect solution. Easy to attach to the back panel and to the DIN rail while providing electrical insulation. With a size of less than 2 inches long by less than 1 inch wide, it is a compact solution for any DIN rail NS35/15. When using zener barriers, a stand off is an excellent accessory to help manage grounding requirements.
Explosionproof Power Supply
The 10 A power supply provides stable DC power to industrial machinery and equipment in hazardous locations. This Class I, II, Division 1 certified power supply is suitable for many applications including powering our Class I, Division 1 IS1+ Remote I/O. It is housed in our explosionproof and dust-ignitionproof threaded enclosure, 8265 GUBox.
