Aviation lighting

Safely lit helicopter landing pads
Helideck systems illuminate helicopter landing pads brightly and completely eliminate the possibility of explosions. R. STAHL fully equips you for harsh conditions and inhospitable environments, from floodlights and perimeter lighting to the characteristic illuminated "H" in the circle floodlights and perimeter lighting, illuminated wind sleeves and control equipment

Helicopter pilots must be able to locate their landing pad with absolute certainty. The HLITE lighting system is an extremely low, non-slip system that is highly reliable and can be installed with very little effort. This system fulfils the requirements of the Helicopter Certification Agency (HCA). Thanks to the duplicated, independent power supply circuit and LED bypass devices, the effect of an individual LED failing is only localised.

The TEF 9975 LED floodlights brightly illuminate the landing pad without dazzling the pilots. Not only that, but they are vibration-resistant, easy to maintain and have a long service life.

The Tranberg control systems make it easy to control the illumination of the helideck and other areas. In the event of a fault, they alert the user with an audible alarm and visual warning.

14 Series (38 Products)

TRANBERG<sup>® </sup>Xenon Searchlight Interface Module Series TEF2650 R. STAHL

TRANBERG® Xenon Searchlight Interface Module Series TEF2650

  • DIN rail mounting.
  • Built-in snubber network which allows termination of a wide range of communication cable, 100-250 Ohm characteristic impedance. End resistors shall not be used.
  • 8 individual potential free relay outputs, single pole NO / NC contacts.
TRANBERG<sup>® </sup>Commander Utility - Gateway Module Series TEF2650 R. STAHL

TRANBERG® Commander Utility - Gateway Module Series TEF2650

  • DIN rail mounting.
  • Built-in snubber network which allows termination of a wide range of communication cable, 100-250 Ohm characteristic impedance. End resistors shall not be used.

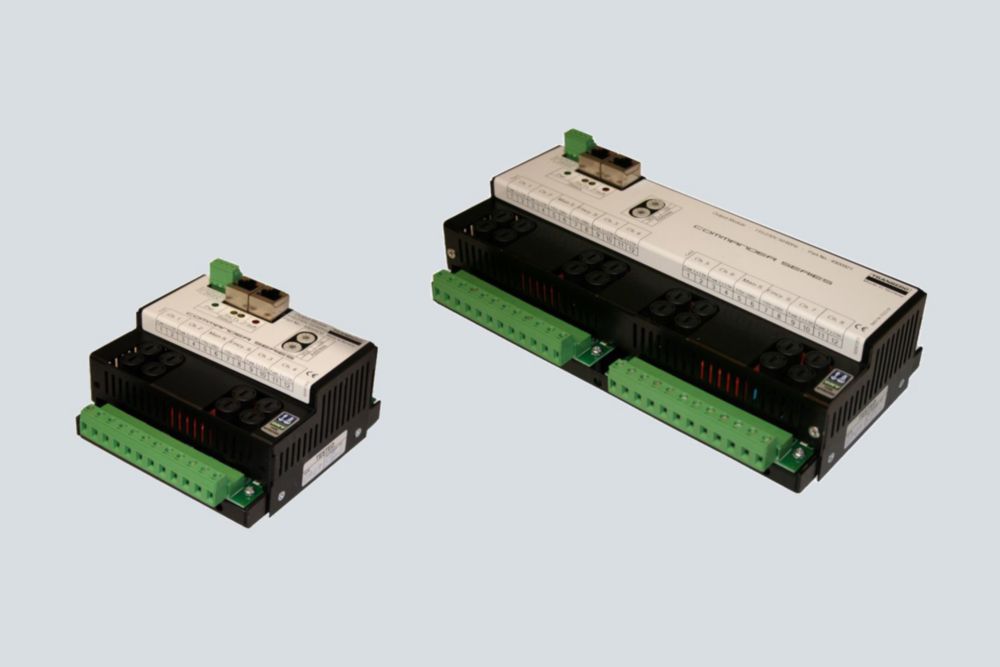

TRANBERG<sup>® </sup>Relay Output Module for LED Navigation Lights Series TEF4900 R. STAHL

TRANBERG® Relay Output Module for LED Navigation Lights Series TEF4900

  • DIN rail mounting.
  • 4 or 8 output circuits.
  • 2-pole switching. Both poles fused.
  • For connection of LED navigation and signal lights. Threshold current value: 34mA.
  • Connected LED light must have built in life time control.
  • Connected LED light must be selfmonitored and if a failure arise, current must be reduced to <31mA.
  • Lamp circuits galvanic isolated from control circuit
  • Local emergency switches for control of outputs.
  • Connections for main and emergency supply to output circuits.
  • Built-in snubber network which allows termination of a wide range of communication cable, 100-250 Ohm characteristic impedance. End resistors shall not be used.
TRANBERG<sup>® </sup>Utility Operator Panel Series TEF4500 R. STAHL

TRANBERG® Utility Operator Panel Series TEF4500

  • Backlit text and graphics with dimming control
  • Audible and visual alarms
  • Custom made text
TRANBERG<sup>® </sup>Obstruction light low intensity Series TEF2440 R. STAHL

TRANBERG® Obstruction light low intensity Series TEF2440

  • Rugged construction
  • Complies with: ICAO Annex 14 Vol. 1 Ch. 6 Low Intensity Type B
  • Low maintenance
  • Low power consumption
  • Resistant to vibrations
  • Long lifetime expectancy
  • Integrated breather
TRANBERG<sup>® </sup>Status Light Series TEF 9980
Ex TRANBERG<sup>® </sup>Status Light Series TEF 9980 R. STAHL

TRANBERG® Status Light Series TEF 9980

  • Automatic monitoring of all light units when in combination with Tranberg control system. No need for redundancy units
  • Maintenance free
  • Night vision goggle (NVG) compatible
  • Low power consumption: Main light, 30 W and Repeater light 3.5 W
Integrated Helideck Light Control TEF4600
Ex Integrated Helideck Light Control TEF4600 R. STAHL

Integrated Helideck Light Control TEF4600

  • All control gear in one cabinet, simplifying connections, control and monitoring
  • Smaller footprint than individual control cabinets for each type of light
  • Combined with Tranberg’s new line of LED helideck lights means an installation with an absolute minimum of required inspections and minimized maintenance
  • Connection with a supervisory control system through Ethernet, Profibus or similar standards
  • Optional touchscreen, allowing local control (Zone 1 panel or non-Ex)
  • Optional remote button and lamp control panel, allowing additional control of lights
Commander Utility, Dual Power, Helideck-Leuchten-Steuerungssystem Reihe TEF4500 R. STAHL

Commander Utility, Dual Power, Helideck Lights Control System Series TEF4500

  • Ready for installation; comes complete with control panel and enclosure with 8 outgoing circuits, B10A.
  • Control panel may be mounted far away from the enclosure.
  • Up to 7 control panels may be connected to the network, enabling control capabilities from each location.
  • Common alarm on circuit breakers
  • Naut-OSV alarm signalling towards brigde alarm handling system (BAMS etc.)
  • Auto fallover to emergency power source accordingly to DNV Pt. 6 Ch. 1 Sec. 2 F503
Commander Utility - Gateway Mudule Series TEF4500 R. STAHL

Commander Utility - Gateway Mudule Series TEF4500

  • DIN rail mounting.
  • Built-in snubber network which allows termination of a wide range of communication cable, 100-250 Ohm characteristic impedance. End resistors shall not be used.
TRANBERG<sup>® </sup>Commander utility interface Series TEF4500 R. STAHL

TRANBERG® Commander utility interface Series TEF4500

  • DIN rail mounting.
  • 24 individual potential free outputs, 1 N/O contacts.
  • Built-in snubber network which allows termination of a wide range of communication cable, 100-250 Ohm characteristic impedance. End resistors shall not be used.
  • Alarm input: 24VDC opto-isolated, 2 pcs.
  • Alarm reset input: 24VDC opto-isolated.
TRANBERG<sup>® </sup>Commander Utility - Relay Output Module Series TEF4500 R. STAHL

TRANBERG® Commander Utility - Relay Output Module Series TEF4500

  • DIN rail mounting.
  • 24 individual potential free outputs, 1 N/O contacts.
  • Built-in snubber network which allows termination of a wide range of communication cable, 100-250 Ohm characteristic impedance. End resistors shall not be used.
  • Alarm input: 24VDC opto-isolated, and volt-free contacts.
  • Alarm reset input: 24VDC opto-isolated, and volt free contacts.
TRANBERG<sup>® </sup>Commander Navigation Light System Central Processing Unit Series TEF4900 R. STAHL

TRANBERG® Commander Navigation Light System Central Processing Unit Series TEF4900

  • DIN rail mounting.
  • Supplies control power to the modules in the commander system.
  • Monitoring of up to 4 power supplies, 24VDC.
  • Potential free general alarm output, 1C/O contact.
  • Alarm silence digital input, 24VDC.
  • Alarm mute output, 1C/O potential-free contact. Used to mute the alarm at an external alarm centre.
  • Galvanic isolated communication port for alarm handling connection to Voyage Data Recorder (VDR) or SCADA interface.
  • Built-in snubber network which allows termination of a wide range of communication cable, 100-250 Ohm characteristic impedance. End resistors shall not be used.
TRANBERG<sup>® </sup>Fused Flasher Module with Current Detection Series TEF4900 R. STAHL

TRANBERG® Fused Flasher Module with Current Detection Series TEF4900

  • DIN rail mounting.
  • 2-pole switching. Both poles fused.
  • Zero-cross switching.
  • Build-in current detection to determine if output circuits are OK or not.
  • Lamp circuit galvanic isolated from control circuit.
  • Connections for main and emergency supply to output circuit.
  • Build-in snubber network which allows termination of a wide range of communication cable, 100-250 ohm characteristic impedance. End resistors shall not be used.
  • Current detection can be disabled if a particular system does not require this feature. This may be done in software confi guration or as a direct setting on the module.
  • The module may also be set locally to manually adjust fl ashing pattern.
TRANBERG<sup>® </sup>Navigation Light System Relay Output Module Series TEF4900 R. STAHL

TRANBERG® Navigation Light System Relay Output Module Series TEF4900

  • DIN rail mounting.
  • 8 individual potential free outputs, 1 C/O contacts.
  • Built-in snubber network which allows termination of a wide range of communication cable, 100-250 Ohm characteristic impedance. End resistors shall not be used.
