TRANBERG® Windsock with Internal Illumination and Obstruction Light Series TEF9968
- NORSOK C-004 Compliant
Rugged and solid construction
Easy to install and maintain. Maintenance free lights.
The windsock is internally lit with red light, causing minimal glare and minimal reduction in pilot’s ability to see in the dark
Delivered with 10 meter flying lead armored cable Ø 13 ± 1,5 mm (other lengths on request)
Red + IR (NVG compatible) obstruction lights available
Resistant to vibrations
Bearing for the rotating wind vane is encapsulated in solid brass housing
EN/DIN mounting flange for 60,3 mm pipe
Delivered with one spare windsock kit
TRANBERG® Windsock without Internal Illumination and with Obstruction Light Series TEF9968
- Rugged and solid construction
Easy to install and maintain. Maintenance free lights.
Delivered with 10 meter flying lead armored cable (other lengths on request)
Red + IR (NVG compatible) obstruction light on top available
Resistant to vibrations
Bearing for the rotating wind vane is encapsulated in solid brass housing
TRANBERG® Obstruction light LED Series TEF2460
- Integrated terminal box with breather
- Maintenance free
- Rugged construction
- Encapsulated electronics. No risk of water intrusion to LED’s and electronics
- Instant light
- 32 cd versions comply with ICAO Annex 14
Vol. 1 Low Intensity Type B - 10 cd versions comply with ICAO Annex 14
Vol. 1 Low Intensity Type A and CAA UK CAP168 / CAP437Low Intensity Group A - RED+IR versions comply with CAA Norway
BSL E 2-1:2024 , Low Intensity Type A & B
TRANBERG® Navigation Light Series TEF2870 Ex
- Integrated terminal box, no need for extra connection box
- Access to bulb from top - enabling quick replacement of light source
- Supplied with isolators to be used between the lantern and hull/mast (such as aluminium) to prevent corrosion
- Durable bracket in stainless steel (SS316L) can be used when installing the lantern on 1” or 2” pipes
- Extremely durable to mechanical deterioration; resistant to vibrations
- Small dimensions; designed for use in arctic and tropical waters
- Lens of through-coloured glass ‒ no decolouration throughout the lifetime of the lantern; 20 years warranty on lantern
- The lens can easily be cleaned for paint, bird droppings, pollution and oil
TRANBERG® Navigation Light Series TEF2870
- Integrated terminal box, no need for extra connection box
- Access to bulb from top - enabling quick replacement of light source
- Supplied with isolators to be used between the lantern and hull/mast (such as aluminium) to prevent corrosion
- Durable bracket in stainless steel (SS316L) can be used when installing the lantern on 1” or 2” pipes
- 20 years warranty on lantern
- Extremely durable to mechanical deterioration
- Designed for use in arctic and tropical waters
- Resistant to vibrations
- Lens of through-coloured glass ‒ no decolouration throughout the lifetime of the lantern, can easily be cleaned for paint, bird droppings, pollution and oil

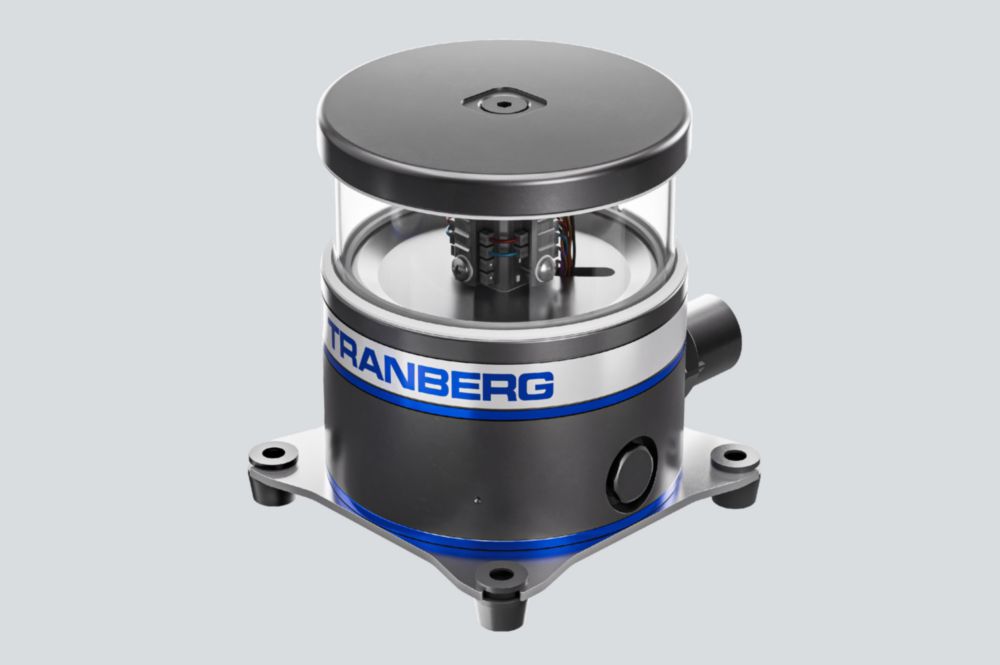

TRANBERG® LED BlueLine Navigation Light Simplex Series TEF 2880
- Both simplex (single light source) and duplex (two light source) versions.
- Compact dimensions
- Up to 200 000 working hours. (Duplex lights: 100 000 h for each light source).
- Monitored light source.
- Build-in timer.
- Easy installation - The QPD plugs from Phoenix Contact allows for a faster and more secure cable installation.
- Glass lens.
- Patent pending.

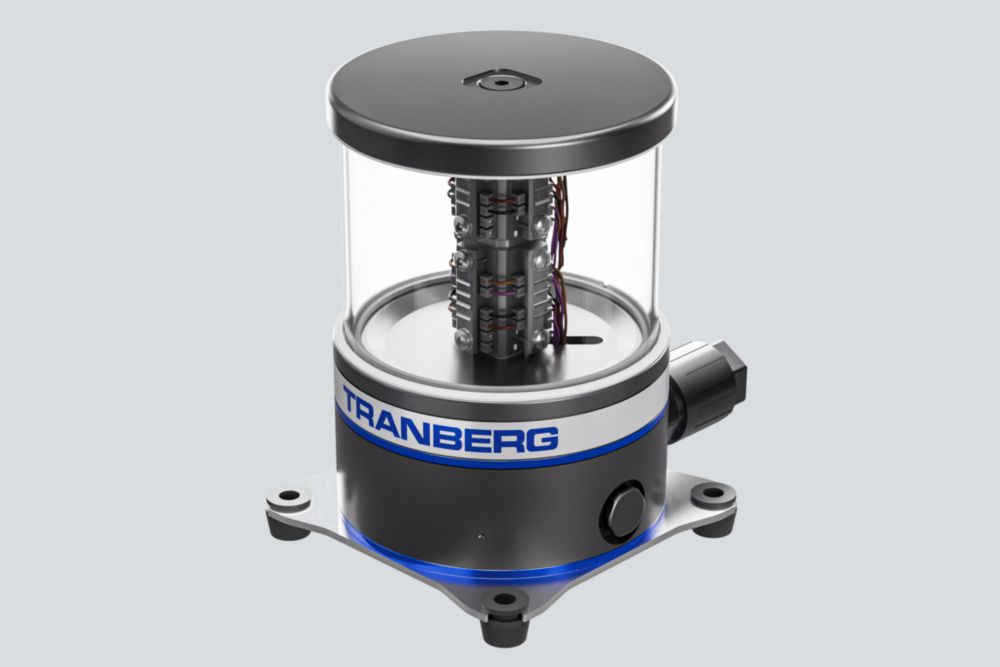

TRANBERG® LED BlueLine Navigation Light Duplex Series TEF 2880
- Both simplex (single light source) and duplex (two light source) versions.
- Compact dimensions
- Up to 200 000 working hours. (Duplex lights: 100 000 h for each light source).
- Monitored light source.
- Build-in timer.
- Easy installation - The QPD plugs from Phoenix Contact allows for a faster and more secure cable installation.
- Glass lens.
- Patent pending.
TRANBERG® ILED Aquarius Circle and H Series TEF 9952
- Great visibility.
- Simple installation.
- Robust design.
- Minimum maintenance requirements.
- Low profile.
- Unique “interlock” design to withstand impact shear forces.
- The light intensity is adjustable - full control by communication.
- Can be fully integrated with TRANBERG® IMT Helideck status light Systems.
- Easy connection, by plug system.
- A variety of fixing methods - to suit all helideck types.
- Easy to replace fixtures.
- Low power consumtion.
- Special anti-slip coating.
- In accordance with the CAP 437 8th edition & ICAO Annex 14.
TRANBERG® Navigation light for vessels 7-20 meters in length series TEF 2898
- Extremely durable to mechanical deterioration
- Designed for use in arctic and tropical waters
- Small dimensions - low weight
- Resistant to vibrations
- Lens of through-coloured glass, no decolouration throughout the lifetime of the lantern.
- The lens can easily be cleaned for paint, bird droppings, pollution and oil
- Access to bulb from top - enabling quick replacement of light source
- IP56
- Can be used against all types of metal by using isolation washers
- Direct connection in lantern

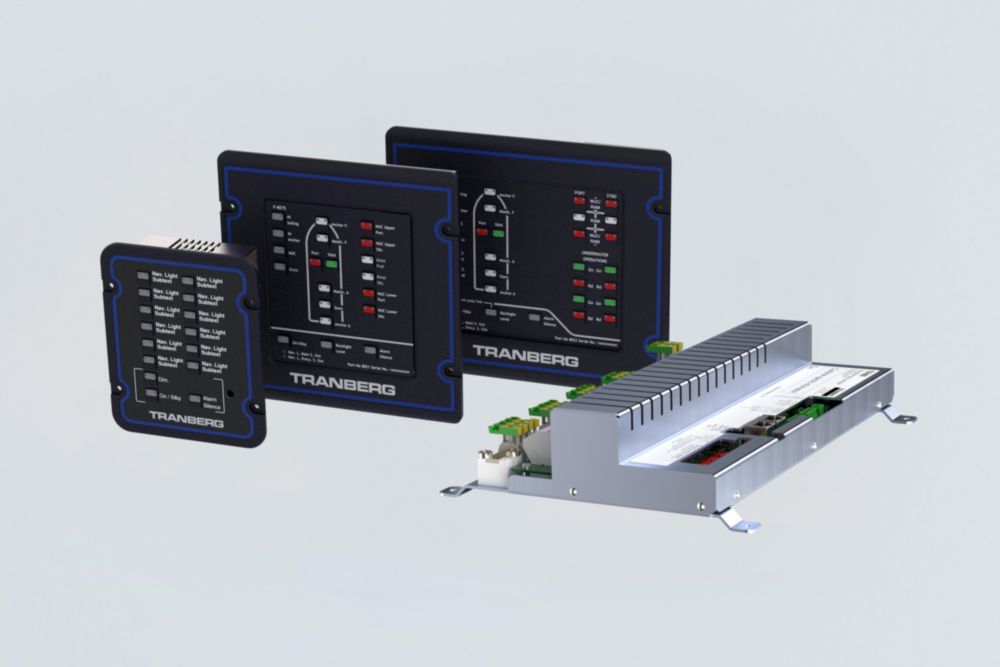

TRANBERG® Navigation Lights Controller and Monitoring System Series TEF4800
- Customer specified texts on panel.
- The system is applicable to both LED and incandescent lamps.
- Up to 10 pcs. 24 VDC (max. 40 W) incandescent lamps or 16 pcs. LED lamps.
- Connections for main and emergency supply to output circuits.
- Can be expanded with a secondary controller.
