Commander utility gateway module VDR/SCADA interface
- Product Type: TEF4500800
- Art. No.: 266997
On request
Technical data
General
| MY R. STAHL | T4500D |
| Product Type | TEF4500800 |
| Product description | Commander utility gateway module VDR/SCADA interface galvanic isolated |
| Highlights | DIN rail mounting.Built-in snubber network which allows termination of a wide range of communication cable, 100-250 Ohm characteristic impedance. End resistors shall not be used. |
| Functional Description |
The Commander Utility is a general purpose control system designed by Tranberg for maritime applications. The system may include up to 7 control panels and up to 21 output modules, all connected to a industry-proven and robust twisted pair RS-485 network. The network cable may be hundrreds of meters long, enabling the localization of the output modules and the power relays in a remote location. An innovative and unique system architecture allows multiple identical panels on the network, which enables the users to turn on and off a specific output on different panels. The panels are backlit, dimmable and the Lexan front with text may be delivered with customerspecific text. The system includes a continous integrity-check with alarm in case of a non-responding (defective) module or a common alarm, such as a ground fault or missing power for the outputs. Alarm reset may be done by pressing the Alarm Acknowledge button on the panel or by providing a 24VDC impulse to the Alarm Reset input on the first output module in the network. The Commander Utility system may also be connected to an external control system by using a gateway. The gateway will continously send out status messages of all outputs, while also receive control commands that will turn on or off the various outputs. It is also possible to turn on or off an entire system, send an Alarm Acknowledge signal from the control system, and change the backlight intensity level of the panels. |
Explosion Protection
Electrical Data
Auxiliary power
Output
Diagnostics
Ambient Conditions

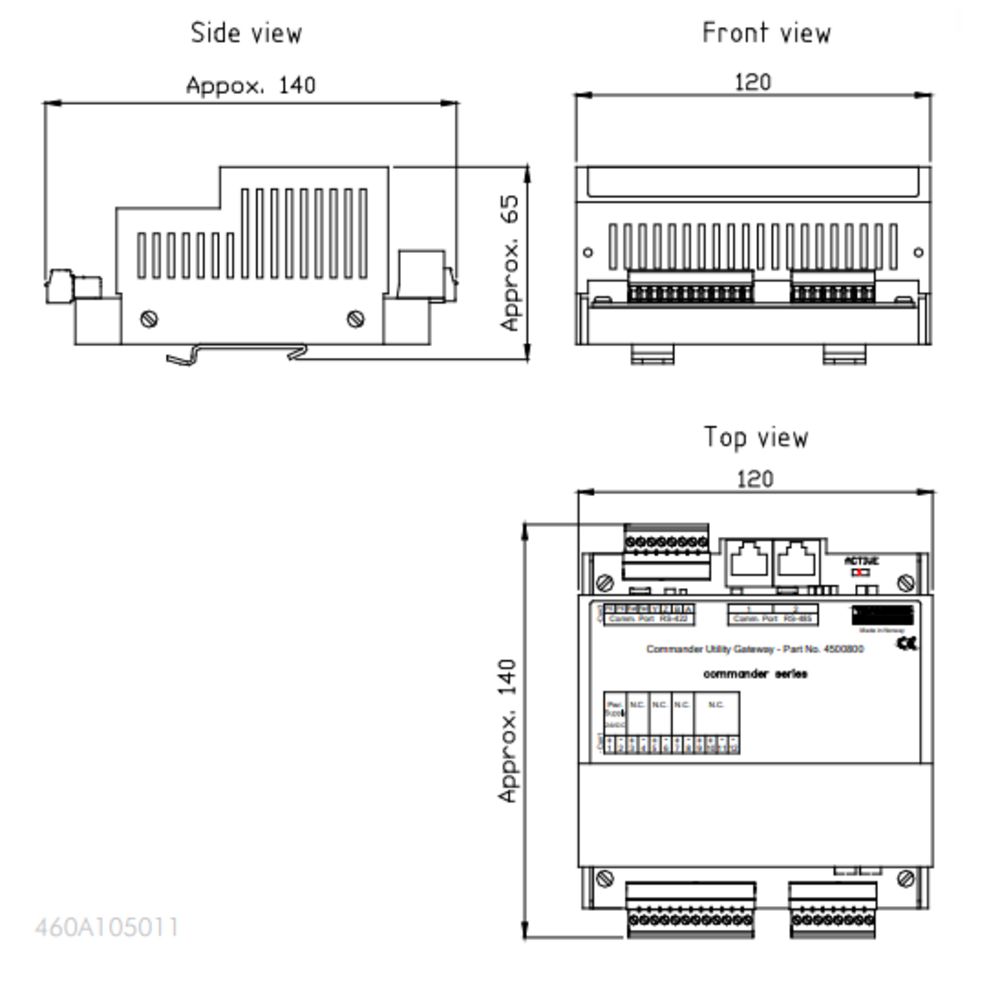

Mechanical Data
Components
Commercial data
Downloads
| Description | Document Type | Language | |
|---|---|---|---|
| Commander Utility Series TEF4500 | Data Sheet |
 |
|
| Commander Utility Series TEF4500 | Data Sheet |
 |
|
| Commander Utility Series TEF4500 | Data Sheet |
 |
|
| Commander Utility Series TEF4500 | Data Sheet |
 |
|
| TRANBERG® Commander - TEF4500 - de-DE | Product Overview |
|
|
| TRANBERG® Commander - TEF4500 - en-GB | Product Overview |
|
|
| Commander utility gateway module VDR/SCADA interface galvanic isolated - TEF4500800 - 266997 - de-DE | Single Data Sheet |
|
|
| Commander utility gateway module VDR/SCADA interface galvanic isolated - TEF4500800 - 266997 - en-GB | Single Data Sheet |
|
