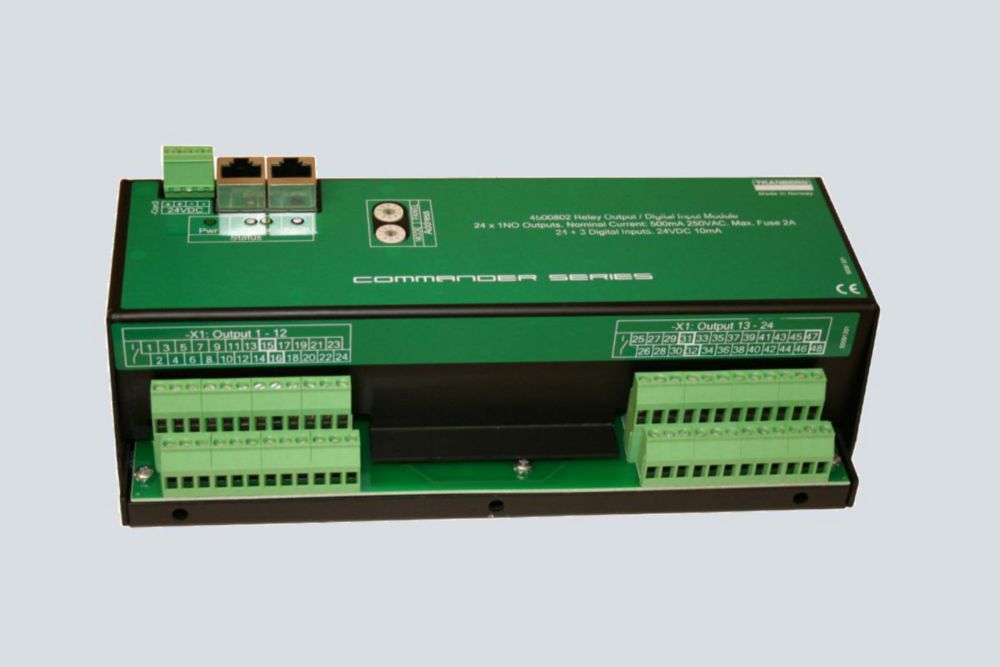

Designed for connection of digital actuators, such as electromagnetic valves, contactors and visual indicators, or output signals to external control system.
This module also include 24 digital inputs, and works in combination with a panel in the same series. The mode selector switch on the module enables several functions of the module, which cover different application areas:
24 regular outputs for general use.
24 outputs, each with a corresponding and independent input for monitoring functions (high input yields an alarm).
24 inputs for a dedicated monitoring function.
Control system for helideck lighting, enabling external pushbuttons for remote control.
Heating control functions, including delayed turn-on, power safe function, and alarm functionality.
- DIN rail mounting.
- 24 individual potential free outputs, 1 N/O contacts.
- Built-in snubber network which allows termination of a wide range of communication cable, 100-250 Ohm characteristic impedance. End resistors shall not be used.
- Alarm input: 24VDC opto-isolated, 2 pcs.
- Alarm reset input: 24VDC opto-isolated.
