Commander utility interface module potential free
- Product Type: TEF4500802
- Art. No.: 241932
On request
Technical data
General
| MY R. STAHL | T4500C |
| Product Type | TEF4500802 |
| Product description | Commander utility interface module potential free max. 24 inputs/outputs |

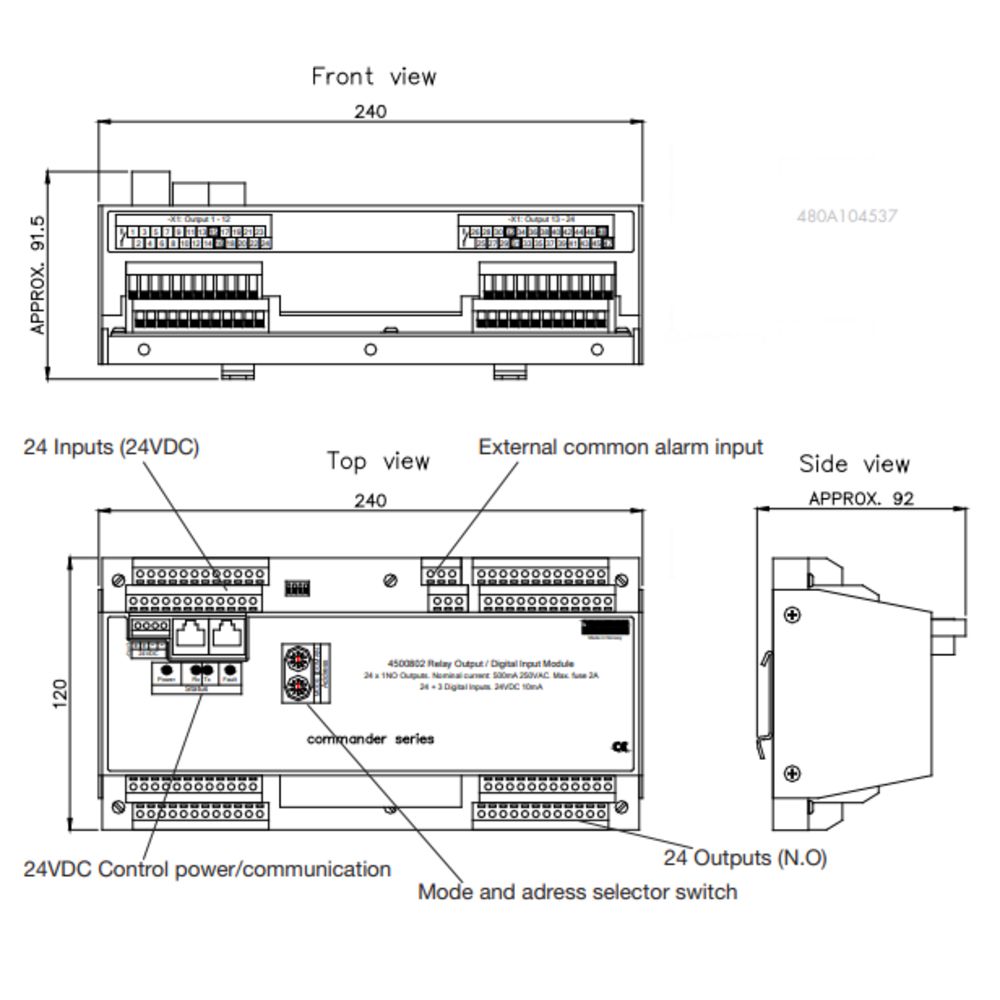

| Highlights | DIN rail mounting.24 individual potential free outputs, 1 N/O contacts.Built-in snubber network which allows termination of a wide range of communication cable, 100-250 Ohm characteristic impedance. End resistors shall not be used.Alarm input: 24VDC opto-isolated, 2 pcs.Alarm reset input: 24VDC opto-isolated. |
| Functional Description |
Designed for connection of digital actuators, such as electromagnetic valves, contactors and visual indicators, or output signals to external control system. This module also include 24 digital inputs, and works in combination with a panel in the same series. The mode selector switch on the module enables several functions of the module, which cover different application areas: 24 regular outputs for general use. 24 outputs, each with a corresponding and independent input for monitoring functions (high input yields an alarm). 24 inputs for a dedicated monitoring function. Control system for helideck lighting, enabling external pushbuttons for remote control. Heating control functions, including delayed turn-on, power safe function, and alarm functionality. |
Explosion Protection
Electrical Data
Auxiliary power
Output
Diagnostics
Ambient Conditions
Mechanical Data
Components
Commercial data
Downloads
| Description | Document Type | Language | |
|---|---|---|---|
| Commander Utility Series TEF4500 | Data Sheet |
 |
|
| Commander Utility Series TEF4500 | Data Sheet |
 |
|
| Commander Utility Series TEF4500 | Data Sheet |
 |
|
| Commander Utility Series TEF4500 | Data Sheet |
 |
|
| TRANBERG® Commander - TEF4500 - en-GB | Product Overview |
|
|
| Commander utility interface module potential free max. 24 inputs/outputs - TEF4500802 - 241932 - de- ... | Single Data Sheet |
|
|
| Commander utility interface module potential free max. 24 inputs/outputs - TEF4500802 - 241932 - en- ... | Single Data Sheet |
|
