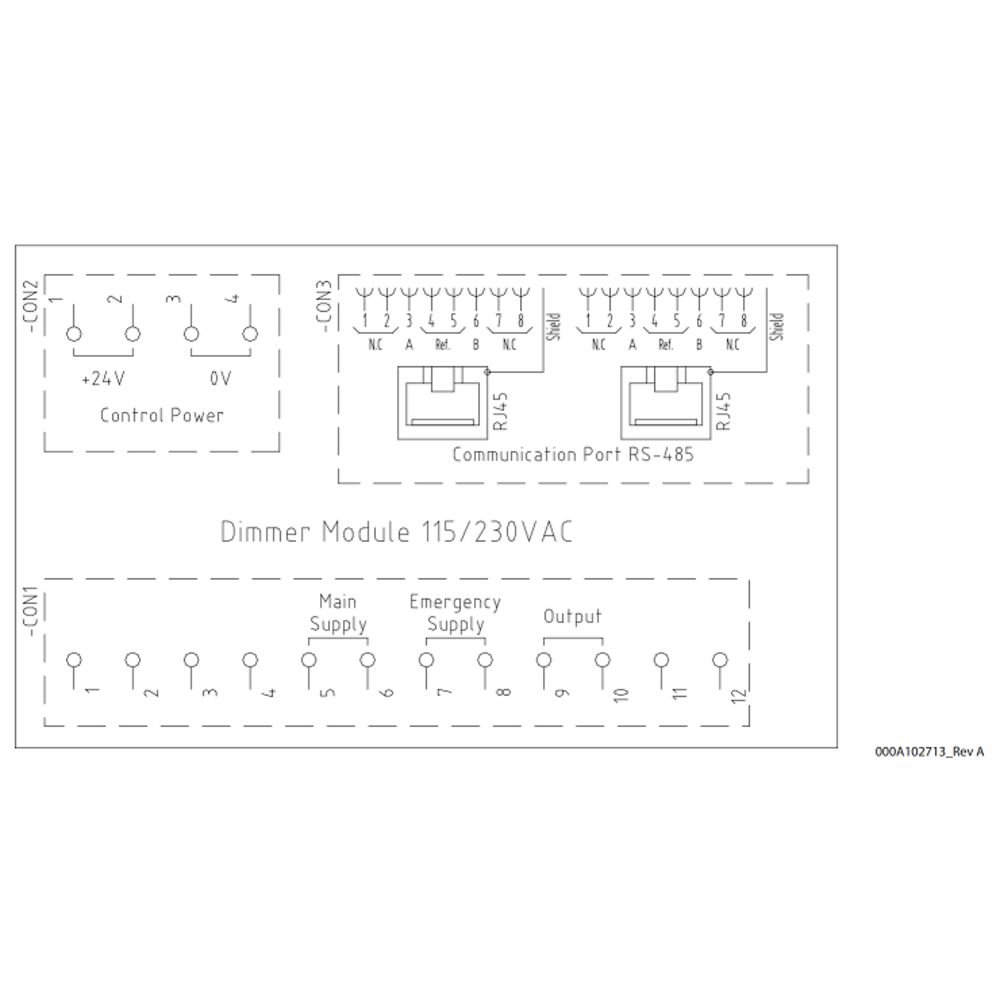

Commander fused dimmer module 110-240 V 50/60 Hz +/- 10%
- Product Type: TEF4900940
- Art. No.: 170558
On request
Technical data
General
| MY R. STAHL | T4900H |
| Product Type | TEF4900940 |
| Product description | Commander fused dimmer module with current detection |
| Highlights | DIN rail mounting.2-pole switching. Both poles fused.3-terminal triac dimmer independently of load current.Build-in current detection to determine if output circuits are OK or not.Lamp circuits galvanic isolated from control circuitLocal emergency switches for control of outputs.Connections for main and emergency supply to output circuits.Built-in snubber network which allows termination of a wide range of communication cable, 100-250 Ohm characteristic impedance. End resistors shall not be used.Current detection can be disabled on any circuit if a particular system does not require this feature. |
| Functional Description | Designed for switching and dimming of signal lights. Status of light is monitored by a built-in current detector. Delivered for 115/230V lamps. |
| Description |
TEF4900940 Navigation Control System Old Art. No.: 4900940 |
Explosion Protection
Electrical Data
Auxiliary power
Output
Diagnostics
Ambient Conditions
Mechanical Data
Components
Commercial data
