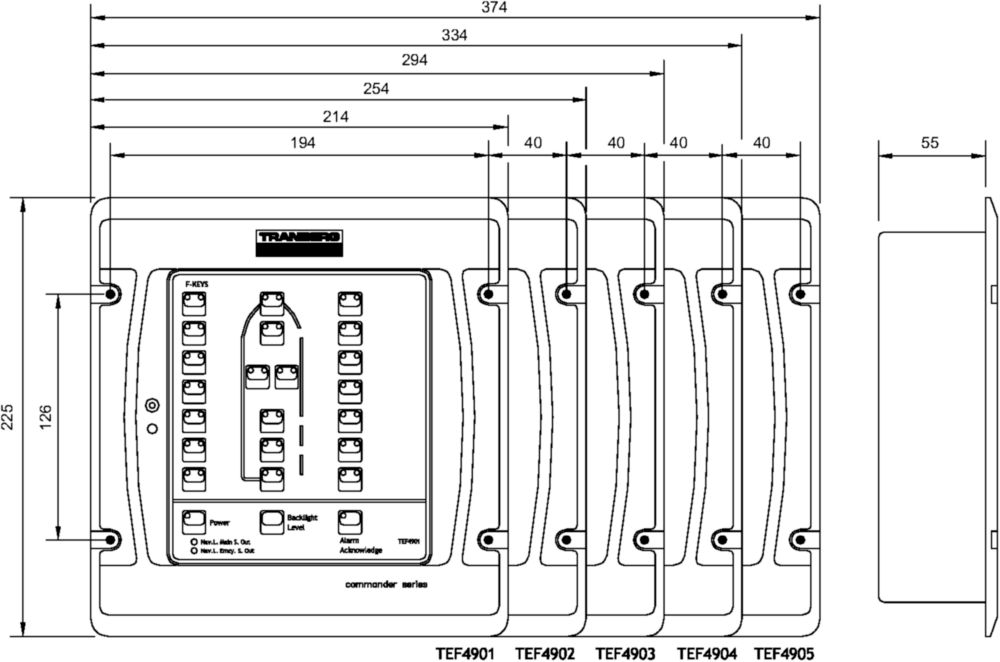

Navigation lighting system Control panel, Number of buttons: 21, Size: 1

Technical data

MY R. STAHL	T4900B
Product variant	Operator Panel
Product Type	TEF4901000
Product description	Navigation lighting system Control panel
Highlights	Backlit text and graphics with dimming control Audible and visual alarms Main and spare lanterns in same buttons Function keys which automatically turns on and off outputs Custom made graphics and tex
Functional Description	The operator panels for TEF 4900 Commander are very flexible in sizes and configurations. The panels are custom built and allow for use of text in several languages as well as graphics, such as small frames, etc. With a dimmable backlight these are easy to read in daylight as well as at night. Several panels may be connected to the same network, more typical with non-critical applications. Main and spare lanterns are handled in the same button, which simplifies and enhances safety. Automatic change over to spare lanterns with full alert tracing. Depending on how long the button is pressed, either the main or the backup navigation light is switched on. Special function buttons may be set up to automatically turn on and off lanterns with one single button, such as sailing lanterns on and anchor lanterns off. Alerts are provided with flashing LED`s as well as a buzzer for audible alarms. Applications: Complete control and monitoring of several types of critical lights on vessels: Navigation lights Signal lights Suez lights ROV lights Towing lights Etc.
Description	TEF4901000 Operator Panel Size 1 Old Art. No.: 4901000
