Binary output Series 9175
Art. No.:
160413
Product Type:
9175/20-14-11s
Signal types:
Digital Output
Zone Filter:
Zone 2 | 3 G | Gc
Certificates:
ATEX (BVS), Brazil (ULB), Canada (FM), China (NEPSI), IECEx (BVS), Korea (KTL), SIL (exida), USA (FM), USA (UL)
SIL:
3
Number of channels:
2
Grid dimension:
17.60 mm
Connection type:
Screw terminal
Country of origin:
DE
On request
Technical data
General
| MY R. STAHL | 9175A |
| Product Type | 9175/20-14-11s |
| Highlights | Two-channel variants reduce the amount of space requiredFor use up to SIL 3 (IEC/EN 61508)A wire breakage and short-circuit monitoring system, which can be disconnected and includes messages |
| Functional Description | The Series 9175 binary outputs transmit binary signals via one or two channels for the intrinsically safe operation of Ex i solenoid valves, indicator lamps and horns. The devices feature three-way galvanic separation. A wire-breakage and short-circuit monitoring system, which can be disconnected, directly monitors the status of the field circuit. |
Explosion Protection
Safety Data
Electrical Data
Auxiliary power
Galvanic isolation
Input
Output
Ambient Conditions

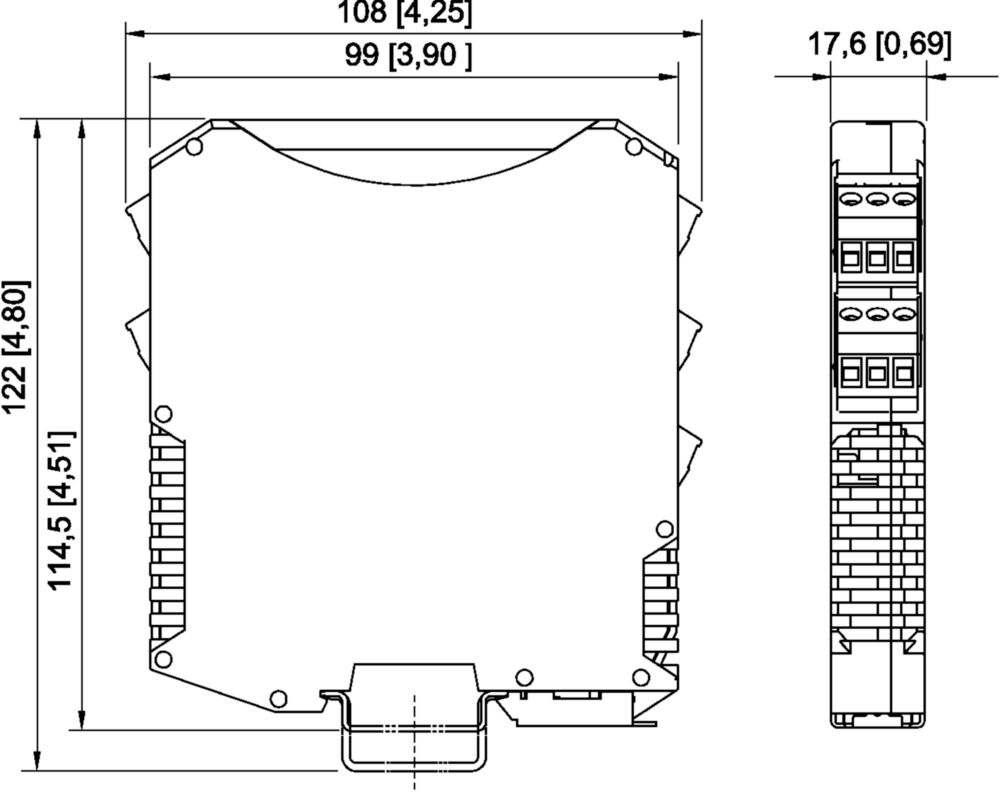

Mechanical Data
Mounting / Installation
Commercial data
Downloads
| Description | Document Type | Language | |
|---|---|---|---|
| Binary output Ex i field circuit - 9175/20-14-11s - 160413 - en-US | Single Data Sheet |
  |
|
| Binary output - 9175 - fr-FR | Product Overview |
 |
|
| Binary output - 9175 - es-ES | Product Overview |
 |
|
| Binary output - 9175 - de-DE | Product Overview |
 |
|
| Binary output - 9175 - en-GB | Product Overview |
 |
|
| Binary output - 9175 - en-US | Product Overview |
|
|
| Binary output Ex i field circuit - 9175/20-14-11s - 160413 - de-DE | Single Data Sheet |
|
|
| Binary output Ex i field circuit - 9175/20-14-11s - 160413 - en-GB | Single Data Sheet |
|
|
| Binary output Ex i field circuit - 9175/20-14-11s - 160413 - fr-FR | Single Data Sheet |
|
|
| Binary output Ex i field circuit - 9175/20-14-11s - 160413 - es-ES | Single Data Sheet |
|
